High Voltage Detector

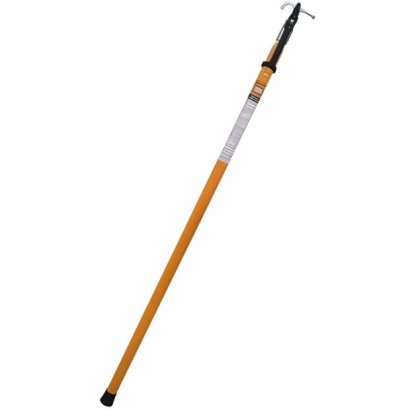

- Telescopic design for easy assembly, storage, and transportation.
- Push-button release for smooth extension and retraction.
- Withstands voltage rating of 100kV from 30cm for 1 minute.
- Universal end fitting compatible with various standard attachments.
- Highly visible yellow tip section for safety awareness.
- Easy-to-replace sections for long-term usability.
- Carrying bag included for convenient transport.
- Optional integrated height measurement scale.
- Complies with IEC 62193 safety standard.

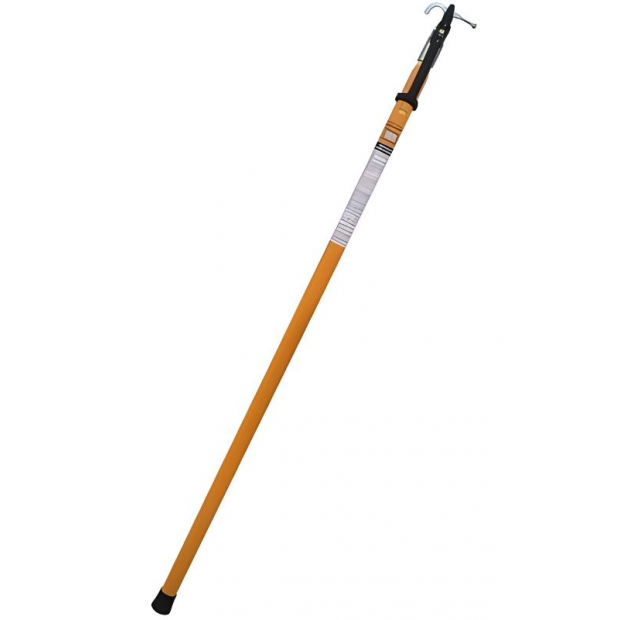

- Telescopic design for easy assembly and storage.
- Universal "sunrise" head attachment for compatibility with specialized tools.
- Can be attached to high-voltage proximity detectors and contact capacitive detectors.
- Head section rated at 100kV per 300mm (5 minutes).
- Comes with a fuse extractor and sunrise fitting.
- Includes multiple extension rods for flexible operation.
- Meets IEC 60855 safety standards.
Specifications:

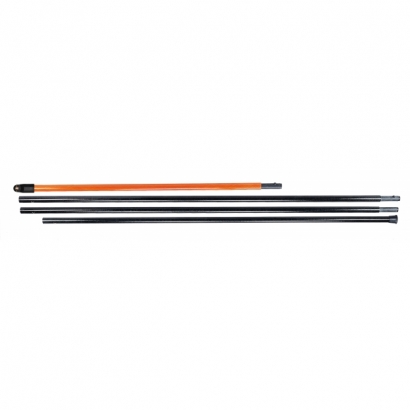

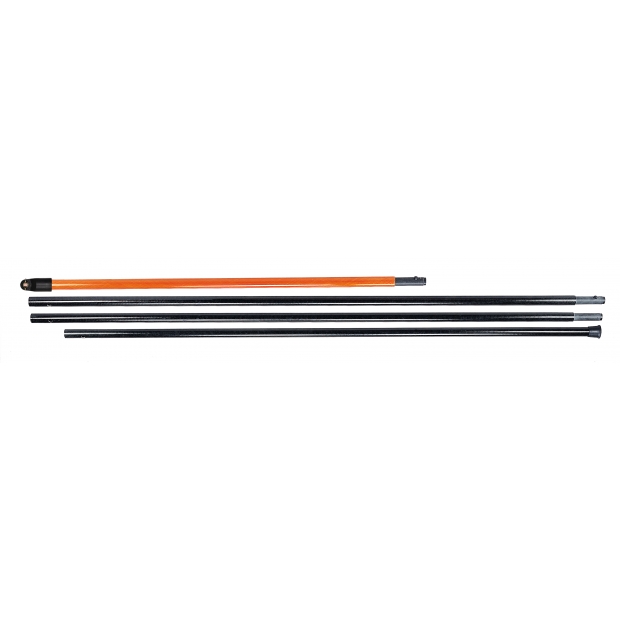

- Rod Sections:
- 3 × 1.8m rods.
- 1 × 1.2m head section.
- 1 × 1.2m rod with universal sunrise fitting.
- Voltage Rating: 100kV per 300mm (5 minutes).
- Material: High-quality fiberglass filled with polyurethane.
- Weight: Approx. 885g.
- Safety Precautions:
- Keep clean and store away from direct sunlight.
- Do not use in rainy conditions.
- Always wear insulated gloves and boots when handling.

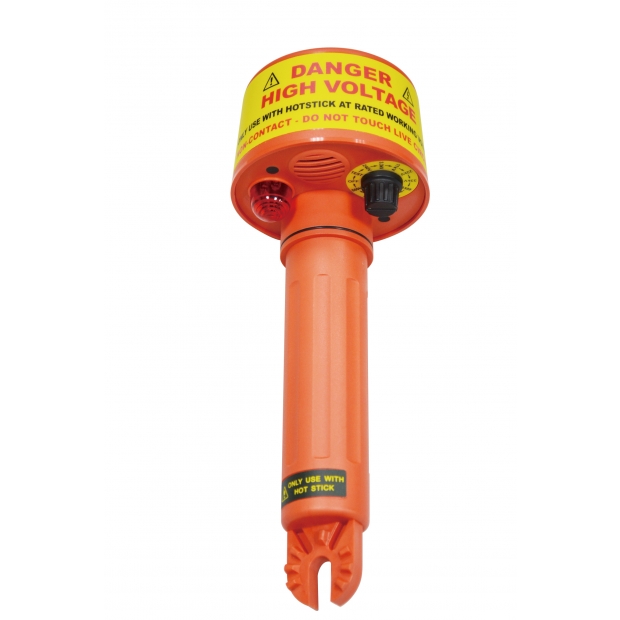

- Non-contact detection for enhanced safety.
- Eight voltage settings: 240V AC, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, and 275kV.
- High-brightness LED visual indication.
- Audible sound alert when voltage is detected.
- Self-test function to verify proper operation.
- Compatible with most link sticks for extended reach.
- Lightweight, robust, and compact design.
- Suitable for indoor and outdoor use.
- Easy battery access with no special parts required.
- Meets safety standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3.
Specifications:
- Operating Temperature: -15°C ~ 55°C.
- Storage Temperature: -20°C ~ 65°C.
- Humidity: 93% R.H. @ 40°C.
- Case Dimensions: 260mm × 96mm.
- Weight: Approx. 550g (including batteries).
- Power Source: 1.5V “C” × 3 Alkaline Batteries.

- Three voltage detection ranges:
- 285-A HD: 3~7 kV.
- 285-B HD: 6.6~11 kV.
- 285-C HD: 10~22 kV.

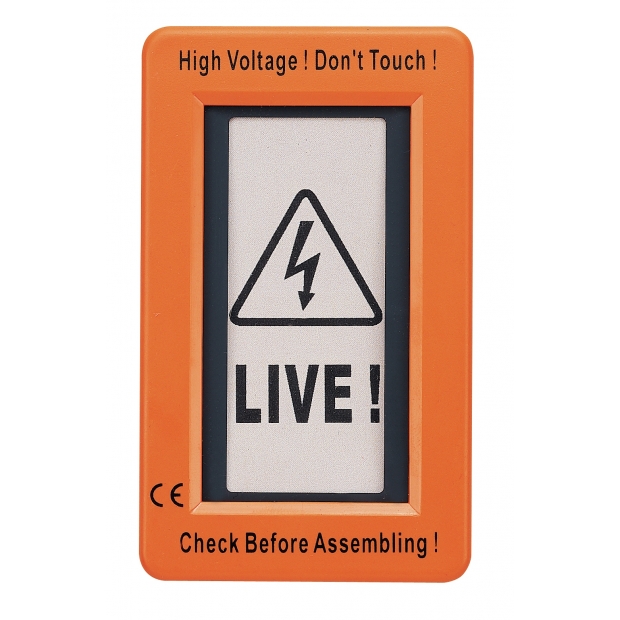

- Large LCD display with continuous flashing when high voltage is detected.
- Non-contact detection—no physical contact required.
- Radiated field sensing—voltage strength increases with proximity.
- Compact and lightweight design (approx. 80g).
- Easy installation with a metal clip and cable ties.
- Continuous monitoring for enhanced safety.
- No battery required.
- Meets safety standards: EN 61326-1, EN 55011, EN 61000-4-2, EN 61000-4-3.。

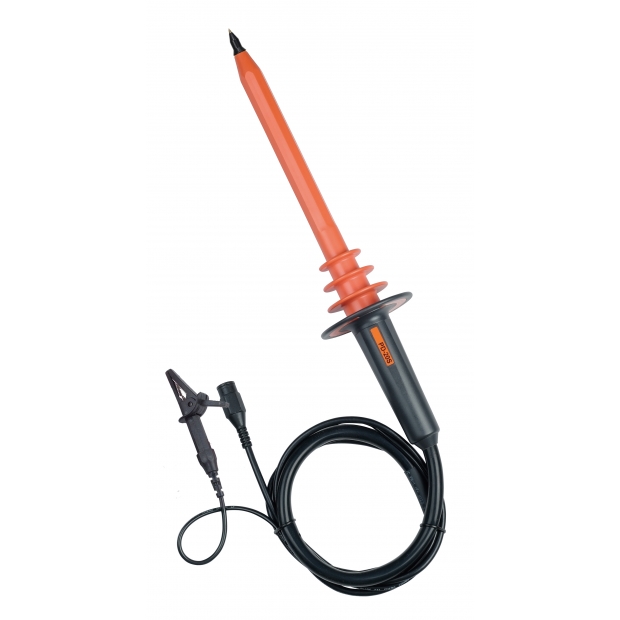

- Measures both AC and DC voltages with digital multimeters.
- Two contact tips:
- Round needle tip for standard use.
- Flat spring-type tip for CRT anode testing.
- Lightweight and rugged design.
- High insulation properties for safe handling.
- Compatible with most digital multimeters.
Specifications:
- Input Impedance: 1000 MΩ.
- Attenuation Ratio: 1000:1.
- Accuracy:
- DCV (0 ~ 20kV): ±1%.
- DCV (20kV ~ 40kV): ±2%.
- ACV (0 ~ 28kV): ±5% at 50/60 Hz.
- Max Working Voltage: 40kV DC or 28kV AC.
- Operating Temperature: 0°C ~ 40°C.
- Storage Temperature: -10°C ~ 50°C.
- Cable Length: 1m.
- Weight: Approx. 320g.
- Safety Standards: EN 61010-1, EN 61010-31, EN 61326-1.

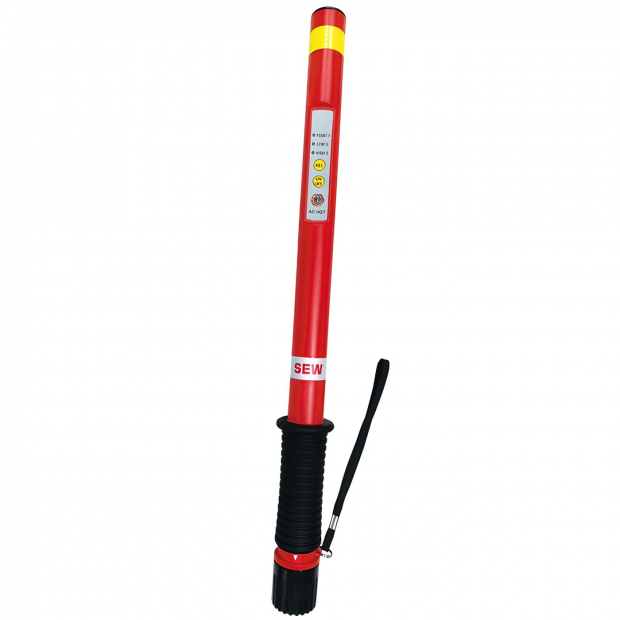

- Voltage detection range: 100V AC ~ 50kV AC.
- Three sensitivity settings:
- High sensitivity: Detects AC signals from maximum distance.
- Low sensitivity: Reduces interference for precise signal location.
- Forward focus mode: Uses directional sensing to minimize side interference.
- Non-contact detection for enhanced safety.
- Audible buzzer and LED flashing indicators.
- Lightweight and ergonomic design.
- Meets EN 61326-1 safety standards.
Specifications:
- Operating Temperature: 0°C ~ 40°C.
- Storage Temperature: -10°C ~ 50°C.
- Dimensions: Height 542mm, Width 53mm.
- Weight: Approx. 480g.
- Power Source: 1.5V (AA) × 4 Alkaline Batteries.

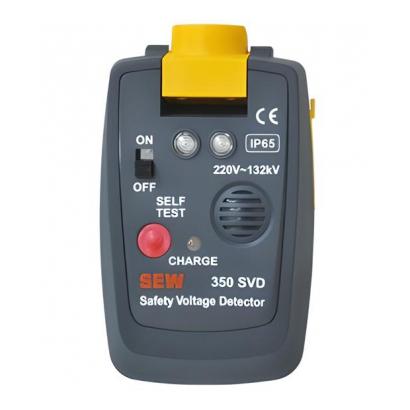

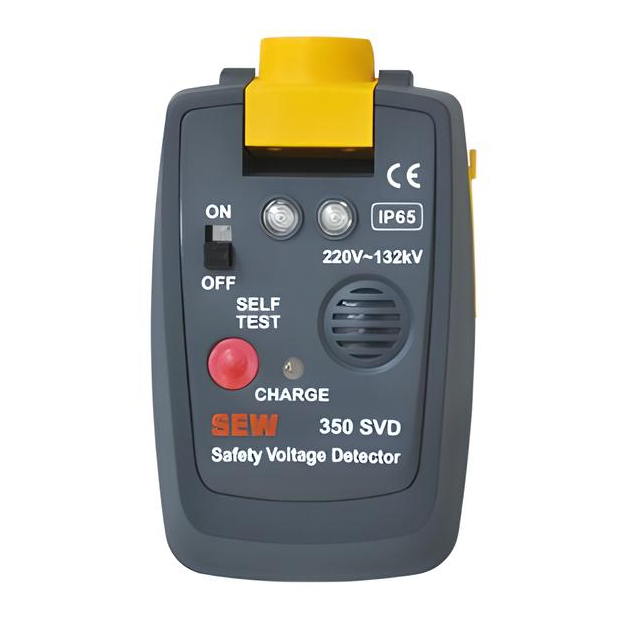

- Non-contact voltage detection: 220V AC ~ 132kV AC.
- Bright LED visual indication and audible alarm.
- Wide-angle voltage detection (approximately 160°).
- Self-test function to verify proper operation.
- Easy-to-prove method for quick validation.
- Flashlight function for use in dim environments.
- Lightweight, robust, and compact design.
- Protection class: IP65.
- Meets safety standards: EN 61326-1.
Specifications:
- Voltage Detection Range: 220V AC ~ 132kV AC.
- Frequency Range: 40 ~ 70 Hz.
- Operating Temperature: 0°C ~ 50°C.
- Humidity: Max 80% R.H..
- Dimensions: 110mm × 68mm × 35mm.
- Weight: Approx. 137g (including battery).
- Power Source: 9V rechargeable battery.

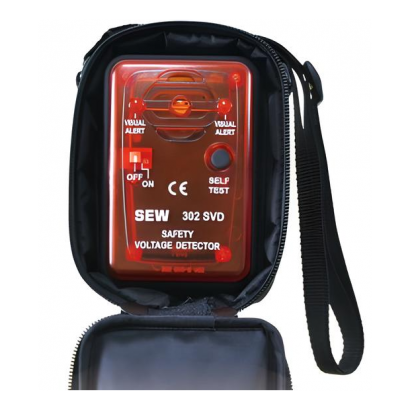

- Non-contact voltage detection: 100V AC ~ 69kV AC.
- Bright LED visual indication and audible alarm.
- Wide-angle voltage detection (approximately 160°).
- Self-test function to verify proper operation.
- Easy-to-prove method for quick validation.
- Lightweight, robust, and compact design.
- Easy battery access with no special parts required.
- Meets safety standards: EN 61326-1.
Specifications:
- Voltage Detection Range: 100V AC ~ 69kV AC.
- Frequency Range: 40 ~ 70 Hz.
- Operating Temperature: 0°C ~ 40°C.
- Humidity: Max 80% R.H..
- Sound Level: > 99 dB.
- Dimensions: 110mm × 71mm × 40mm.
- Weight: Approx. 153g (including battery).
- Power Source: 9V alkaline battery.

- Non-contact voltage detection: 100V AC ~ 50kV AC.
- Bright LED visual indication and audible alarm.
- Mute function for silent operation.
- Wide-angle voltage detection (approximately 160°).
- Self-test function to verify proper operation.
- Easy-to-prove method for quick validation.
- Lightweight, robust, and compact design.
- Easy battery access with no special parts required.
- Meets safety standards: EN 61326-1.
Specifications:
- Voltage Detection Range: 100V AC ~ 50kV AC.
- Frequency Range: 50/60 Hz.
- Operating Temperature: 0°C ~ 40°C.
- Humidity: Max 80% R.H..
- Sound Level: > 99 dB.
- Dimensions: 107mm × 73mm × 33mm.
- Weight: Approx. 205g (including battery).
- Power Source: 1.5V (AA) alkaline battery × 3.

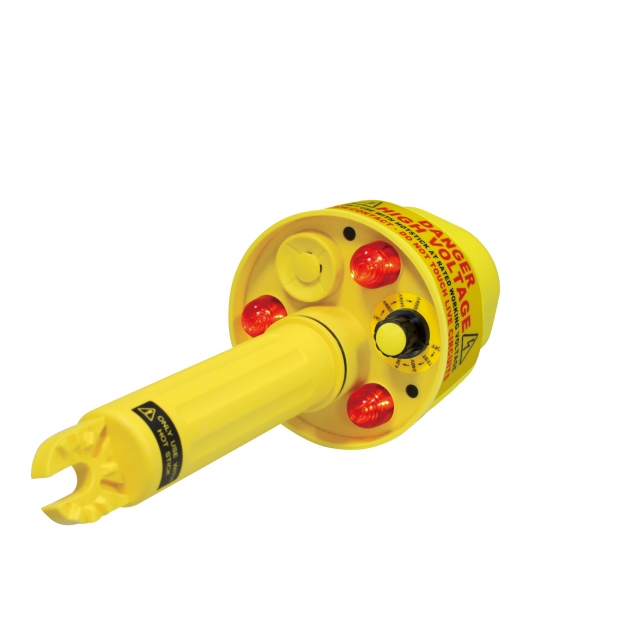

- Eight voltage settings: 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV.
- 360° LED indication with three bright LED indicators for easy viewing.
- Sound indication when voltage is detected.
- Flashlight function for use in dim environments.
- Self-test function to verify proper operation.
- Non-contact detection for enhanced safety.
- Compatible with most hot sticks for extended reach.
- Lightweight, robust, and compact design.
- Easy battery access with no special parts required.
- Protection class: IP66.
- Meets safety standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8.
Specifications:
- Operating Temperature: -10°C ~ 50°C.
- Storage Temperature: -20°C ~ 60°C.
- Humidity: 85% R.H. @ 40°C.
- Case Dimensions: 265mm × 117mm.
- Weight: Approx. 590g (including batteries).
- Power Source: 1.5V “C” × 3 Alkaline Batteries.
