Meter Relay

  1. Meter Relay
one two four
  • Read More
    120HL WAKO Amp Meter-1.jpg

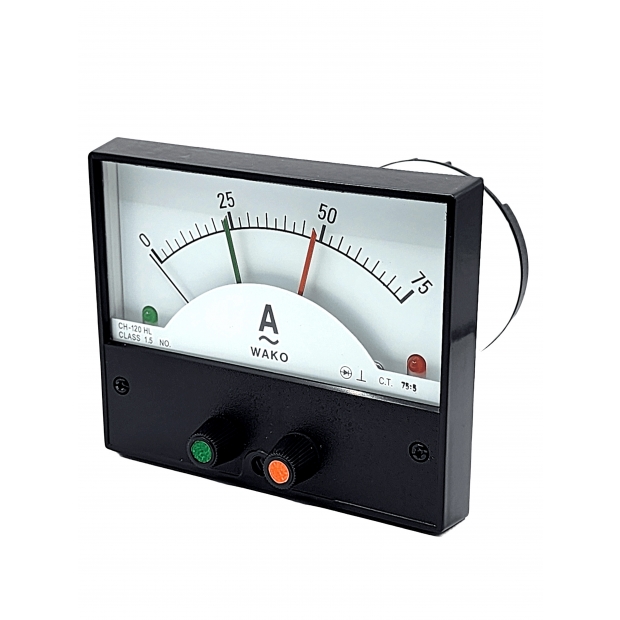

    CH-120HL WAKO Amp Meter (Pointer-Type Panel Meter)

    WAKO Amp Meter (Pointer-Type Panel Meter)
    - Measurement Range
    - AC Current (AC-A): 1A to 5A
    - AC Voltage (AC-V): 1V to 600V
    - DC Current (DC-A): 50μA to 30A
    - DC Voltage (DC-V): 50mV to 600V
    - Accuracy Class
    - Class 1.5, ensuring precise readings.
    - Display Type
    - Analog pointer display, providing clear and intuitive readings.
    - Dimensions
    - Standard size design, suitable for embedded installation.
    - Applications
    - Industrial equipment monitoring
    - Power system testing
    - Energy consumption management
    The WAKO Amp Meter supports multiple measurement functions, including AC-V, AC-A, DC-V, DC-A, HZ, and RPM.
    Models include:
    - CH-100H (Upper alarm)
    - CH-100HL (Upper/Lower alarm)
    - CH-120H (Upper alarm)
    - CH-120HL (Upper/Lower alarm)
  • Read More

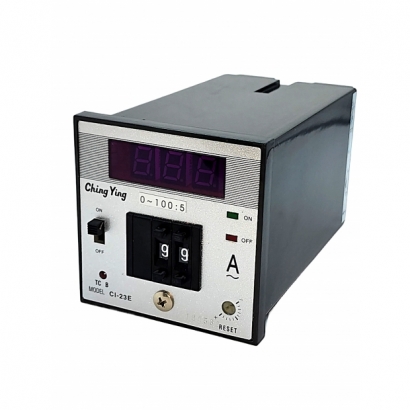

    CI-23E Current/Voltage/Temperature Controller

    - Measurement Range:
    - AC Current (AC-A): 1A to 5A
    - AC Voltage (AC-V): 1V to 600V
    - DC Current (DC-A): 50μA to 30A
    - DC Voltage (DC-V): 50mV to 600V
    - Accuracy Class: Class 1.5, ensuring precise readings.
    - Standard Size: Designed for easy installation in industrial setups.
    - Application Scope: Suitable for industrial equipment monitoring, power system testing, and energy consumption management.
  • Read More

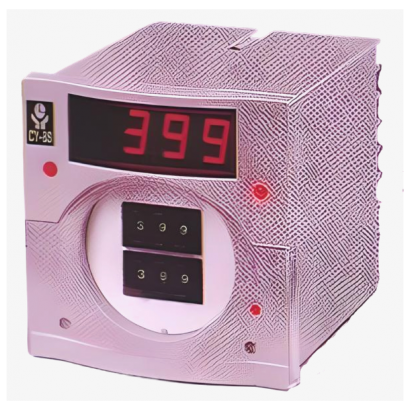

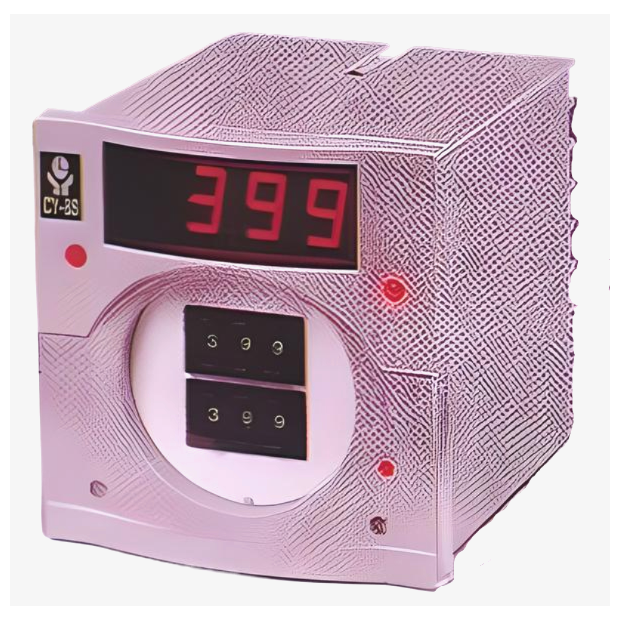

    CY88 Meter

    - High Accuracy: Suitable for power monitoring and testing.
    - Digital Display: Provides clear and quick readings.
    - Multi-Functionality: Supports various measurement modes like voltage, current, and power factor.
    - Durable Design: Built with shock-resistant, dustproof, and heat-resistant materials, ideal for industrial environments.
    - Easy Operation: Simple structure for quick installation and use.
    Applications
    - Industrial Equipment Monitoring: Tracks electrical parameters in machinery.
    - Power System Testing: Assists engineers in fault detection and analysis.
    - Energy Management: Provides data for optimizing power consumption.
  • Read More

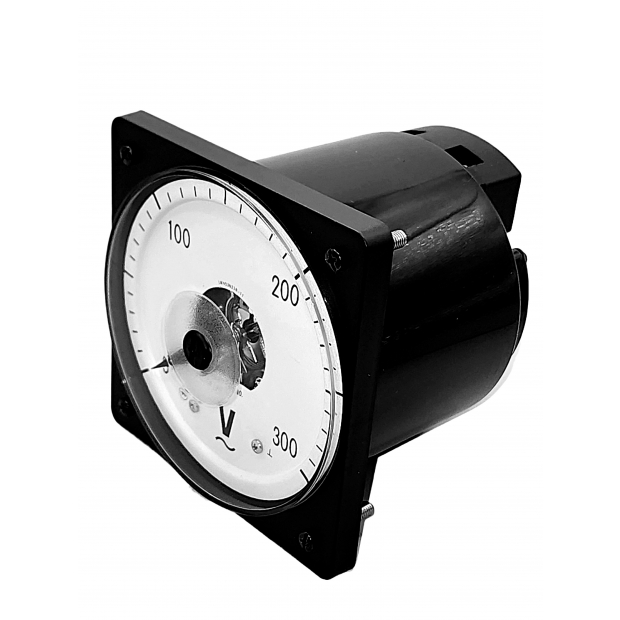

    LS110 Wide Angle Panel Meter

    1. Accuracy Class
    • Class 1.5
    2. Measuring Range
    • AC Current: 1A to 5A
    • AC Voltage: 1V to 600V
    • DC Current: 50μA to 30A
    • DC Voltage: 50mV to 600V
    3. Construction Materials
    • Base: Bakelite
    • Cover: PC (Polycarbonate)
    • Front Frame: Black ABS
    • Inner Frame: Gray ABS
    4. Pointer Design
    • Made of aluminum alloy
    • Customizable colors: black, red, white, etc.
    5. Anti-Static Treatment
    • All meters are treated for electrostatic protection
    6. Damping & Overshoot
    • Customizable damping and overshoot
    • Typical overshoot ≤ 15% of full scale
    7. Operating Temperature
    • -20°C to +50°C
    8. Mounting Position
    • Standard: Vertical
    • Optional: Horizontal or inclined (customized)
    9. External Shunt Voltage Drop (for DC Ammeters)
    • Available specs: 150mV, 100mV, 75mV, 60mV, 50mV
    10. Dimensions
    • Overall: 110 × 110 mm
    • Panel Cutout: Φ103 mm
