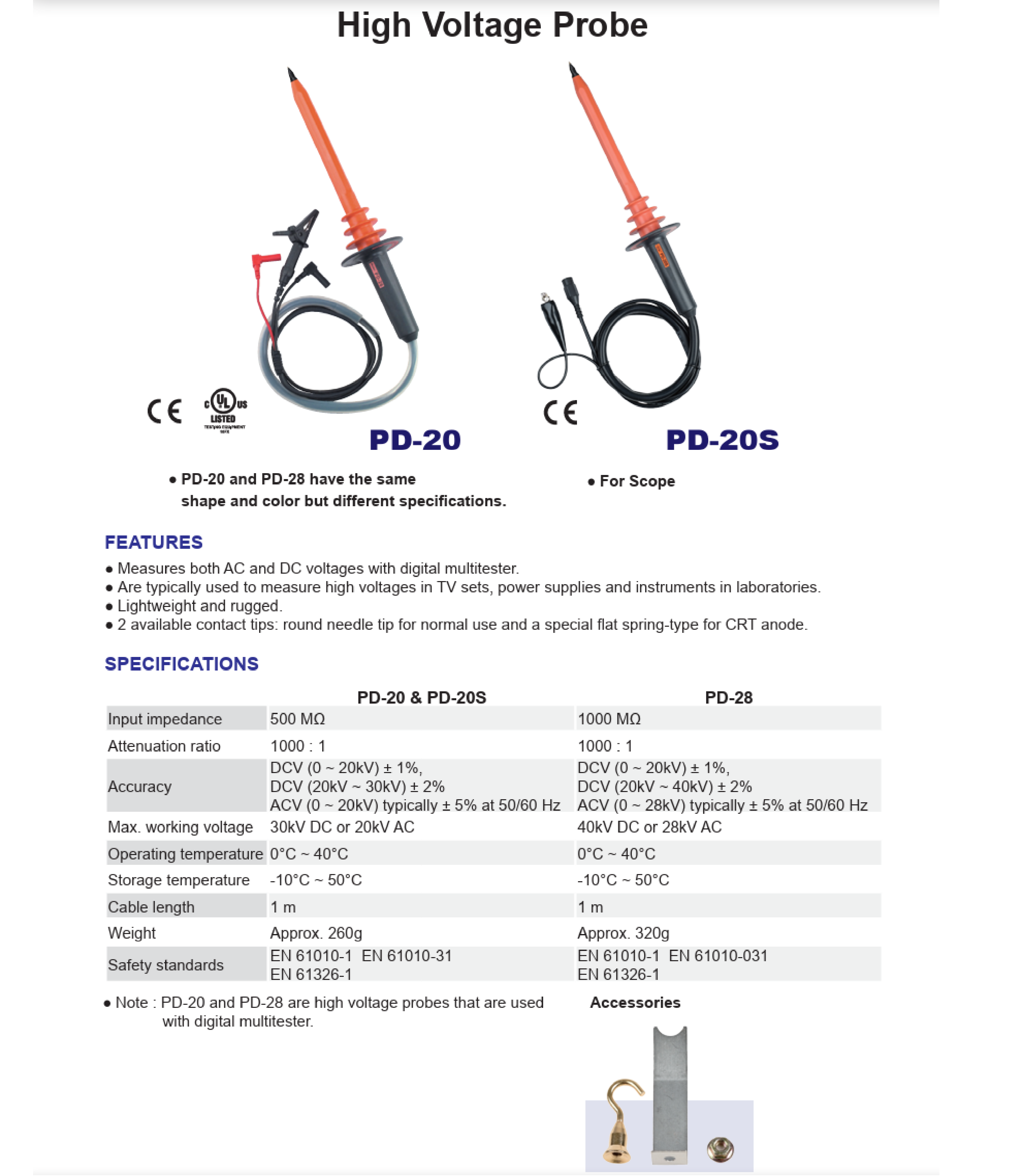

PD-28 High Voltage Probe

- Measures both AC and DC voltages with digital multimeters.
- Two contact tips:
- Round needle tip for standard use.
- Flat spring-type tip for CRT anode testing.
- Lightweight and rugged design.
- High insulation properties for safe handling.
- Compatible with most digital multimeters.
Specifications:
- Input Impedance: 1000 MΩ.
- Attenuation Ratio: 1000:1.
- Accuracy:
- DCV (0 ~ 20kV): ±1%.
- DCV (20kV ~ 40kV): ±2%.
- ACV (0 ~ 28kV): ±5% at 50/60 Hz.
- Max Working Voltage: 40kV DC or 28kV AC.
- Operating Temperature: 0°C ~ 40°C.
- Storage Temperature: -10°C ~ 50°C.
- Cable Length: 1m.
- Weight: Approx. 320g.
- Safety Standards: EN 61010-1, EN 61010-31, EN 61326-1.
