Insulation Impedance Meter

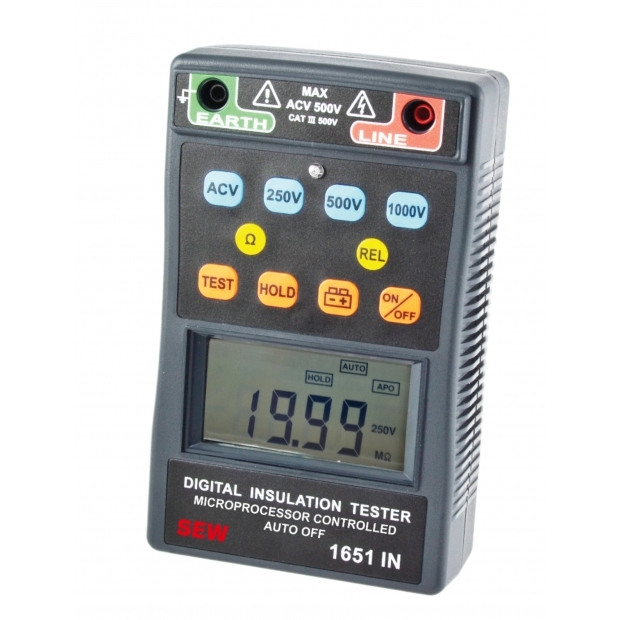

•Microprocessor-controlled.
•ACV auto-detection function on 3 insulation ranges (250/500/1000V) and low Ω ragne before pressing the TEST button.
•68 x 34mm large LCD display.
•3½ digital LCD (2000 counts) a LCD indicated instrument for insulation(MΩ), continuity (Ω) and AC voltage.
•Three insulation test voltages(DC V) : 250V, 500V, 1000V.
•Auto ranging.
•Auto power off function.
•Auto data hold function.
•Rel function (ohm only)
•Continuity buzzer.
•External AC voltage warning.
•Automatic circuit discharge.
•BS 16th edition.

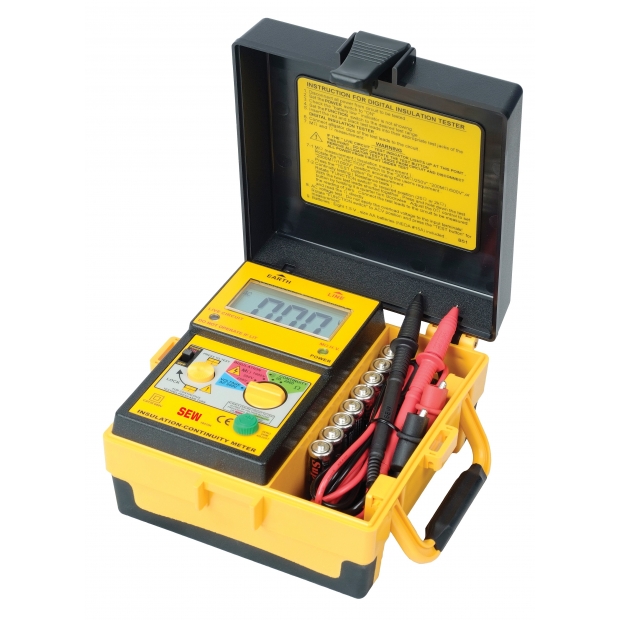

• Measures insulation (MΩ), Continuity (Ω) and AC voltage.
• Three insulation test voltages(DC V) : 250V, 500V, 1000V.
• 3½ digital LCD (2000 counts).
• 68 × 34mm (2.677” × 1.338” ) large LCD display.
• Automatic circuit discharge.
• Test insulation at rated voltage into a 1mA load.
• 210mA short circuit testing current for continuity.
• External voltage warning indication.
• Fuse protection.
• BS 16th edition.

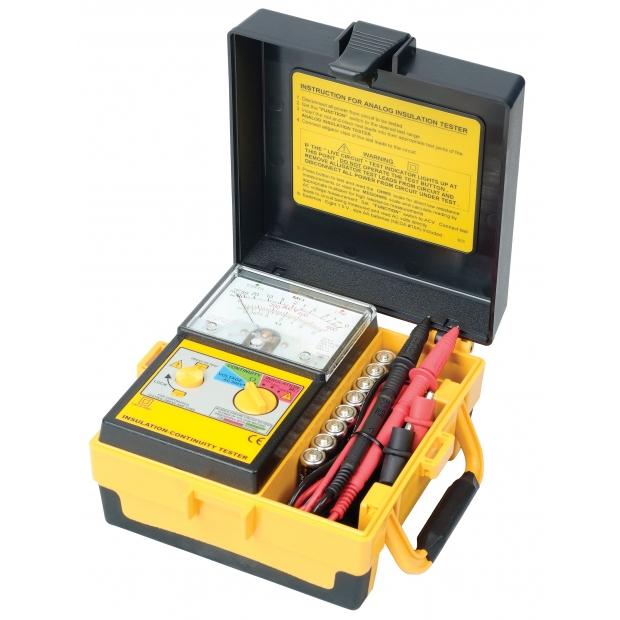

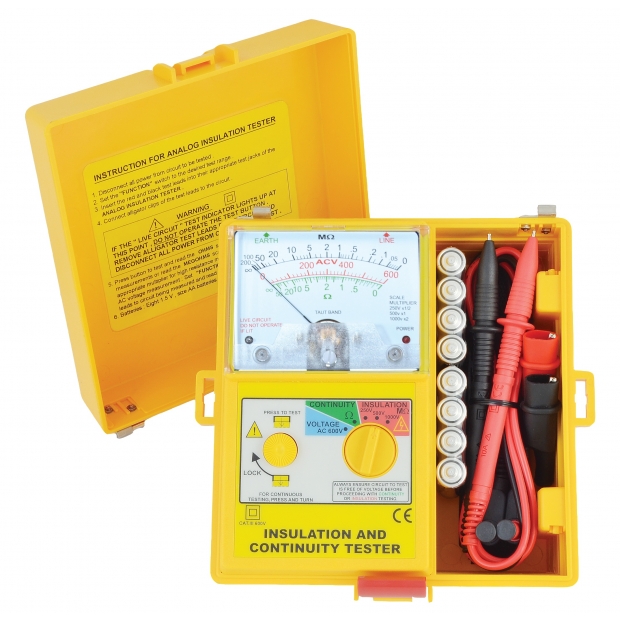

• High quality Taut Band movement.
• Three insulation test voltages(DC) : 250V, 500V, 1000V.
• Two continuity test on low ohms : 3Ω & 500Ω.
• Compact and lightweight.
• 200mA continuity short circuit current.
• 1mA test current on insulation test at nominal voltage.
• Automatic discharge of capacitive and inductive circuit with charge stored in the circuit under test.
• Live warning and display or external voltage presence.
• Fuse, air gap, crowbar and overload protected.
• On line battery monitoring shows if battery is ok.
• Manual zero ohm adjustment.
• Low battery consumption.
• Mirror scale.
• Push and turn locking switch for continuous and hand free testing.
• BS 16th edition.

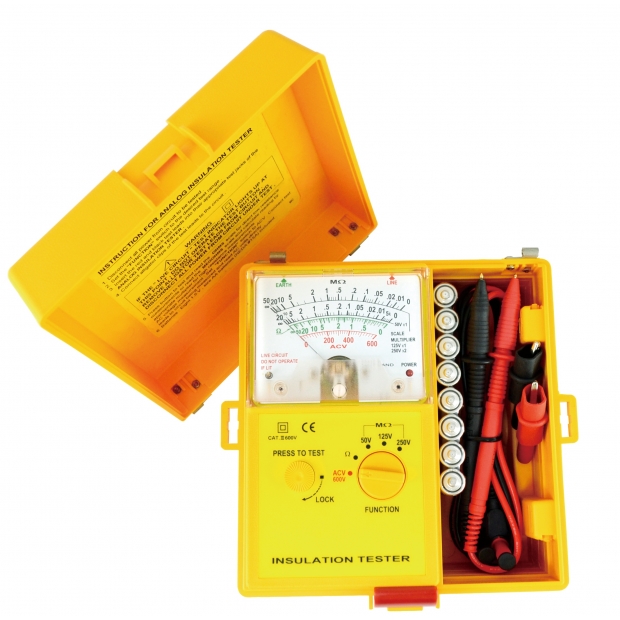

- Insulation Resistance Measurement:
- Test voltages: 50V, 125V, 250V
- Measuring ranges: 0-20MΩ / 0-50MΩ / 0-100MΩ
- Accuracy: ±5% of indicated value
- Continuity Testing:
- Measuring range: 0-50Ω & ∞
- Short circuit current: 145mA DC
- AC Voltage Measurement:
- Range: 0-600V AC
- Accuracy: ±2.5% of full scale
- Safety & Design:
- Automatic circuit discharge for safety
- Color-coded scale for easy reading
- Fuse protection
- Battery-operated for portability
Applications
- Telecom system insulation testing
- Preventive maintenance in electrical systems
- Safety inspections in industrial environments

- Insulation Resistance Measurement:
- Test voltages: 250V, 500V, 1000V
- Measuring ranges: 0-100MΩ / 0-200MΩ / 0-400MΩ
- Accuracy: ±5% of indicated value
- Continuity Testing:
- Measuring ranges: 0-50Ω & ∞
- Short circuit current: 145mA DC
- AC Voltage Measurement:
- Range: 0-600V AC
- Accuracy: ±3% of scale length
- Safety & Design:
- Automatic discharge of capacitive and inductive circuits
- Live voltage warning indicator
- Fuse protection
- Battery-operated for portability
Applications
- Electrical system testing
- Preventive maintenance
- Safety inspections in industrial environments

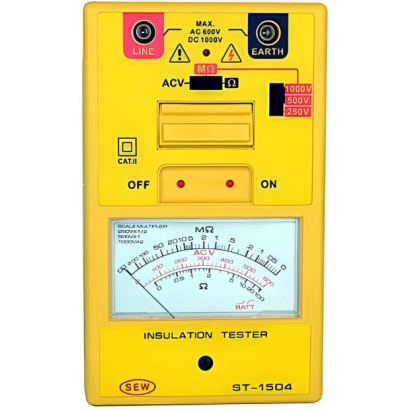

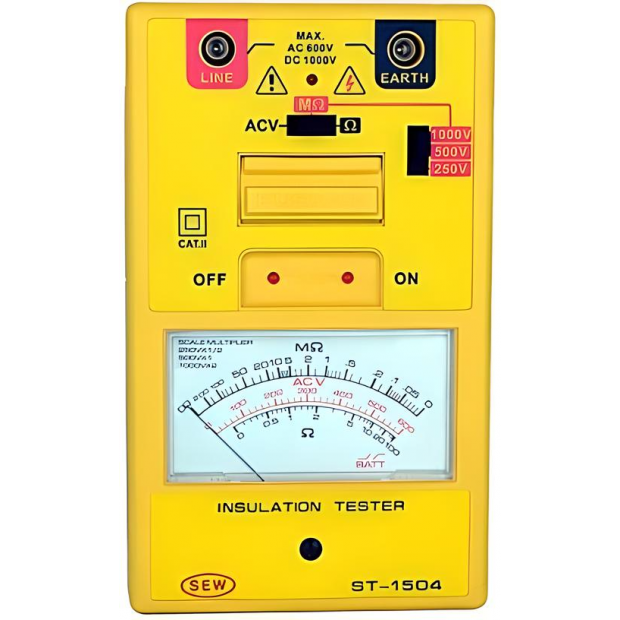

- Insulation Resistance Measurement:
- Test voltages: 250V, 500V, 1000V
- Measuring ranges: 0-100MΩ / 0-200MΩ / 0-400MΩ
- Accuracy: ±5% of indicated value
- Short circuit current: 2mA
- Continuity Testing:
- Measuring range: 0-100Ω
- Line frequency range: 40-70Hz
- Open circuit voltage: 100mV
- Short circuit current: 23.5mA
- AC Voltage Measurement:
- Range: 0-600V AC
- Accuracy: ±2.5% of full scale
- Safety & Design:
- Automatic discharge of capacitive and inductive circuits
- Live voltage warning indicator
- Fuse protection
- Battery-operated for portability
Applications
- Electrical system testing
- Preventive maintenance
- Safety inspections in industrial environments

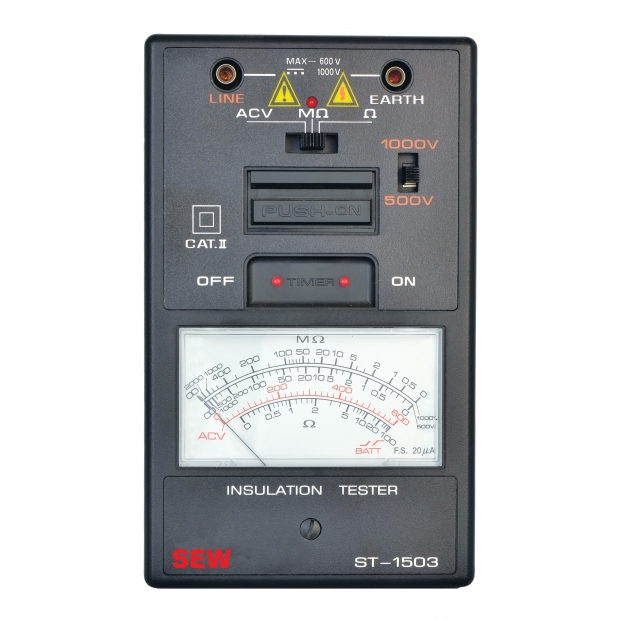

- Insulation Resistance Measurement
- Test Voltages: 500V, 1000V
- Measuring Ranges: 0-1000MΩ / 0-2000MΩ
- Accuracy: ±5% of reading
- Short Circuit Current: 1mA
- Continuity Testing
- Measuring Range: 0-100Ω
- Line Frequency: 40-70Hz
- Open Circuit Voltage: 100mV
- Short Circuit Current: 22.5mA
- AC Voltage Measurement
- Range: 0-600V AC
- Accuracy: ±2.5% of full scale
- Safety & Design
- Automatic discharge of residual voltage
- Live voltage warning indicator
- Fuse protection
- Battery-powered for portability
Applications
- Electrical system diagnostics
- Preventive maintenance in power networks
- Industrial safety inspections
