AC/DC Digital Clamp Meter

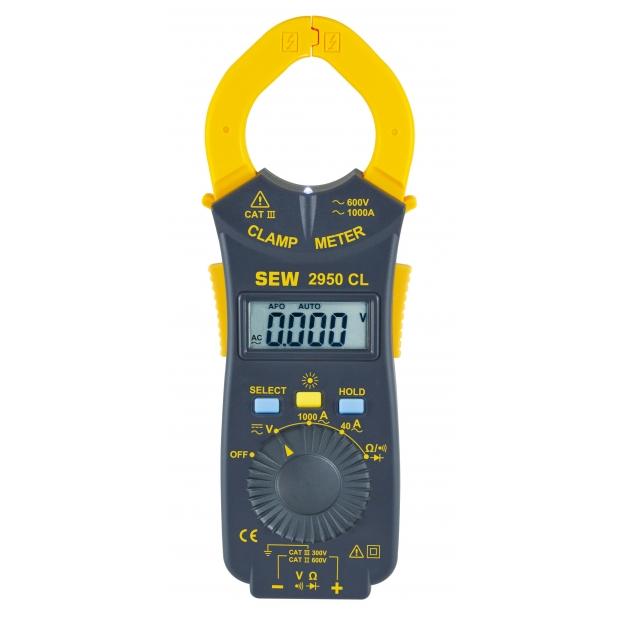

- True RMS measurement for accurate readings.
- Pocket-sized design for portability.
- 4000-count display for precise measurements.
- Automatic measurement selection (voltage, current, resistance).
- Data hold function to freeze readings.
- Continuity check and diode testing.
- Low battery indication and auto power-off.
- Flashlight function (auto-off after 1 minute).

- True RMS measurement for accurate readings.
- Pocket-sized design for portability.
- 4000-count display for precise measurements.
- Automatic measurement selection (voltage, current, resistance).
- Data hold function to freeze readings.
- Continuity check and diode testing.
- Low battery indication and auto power-off.
- Flashlight function (auto-off after 1 minute).

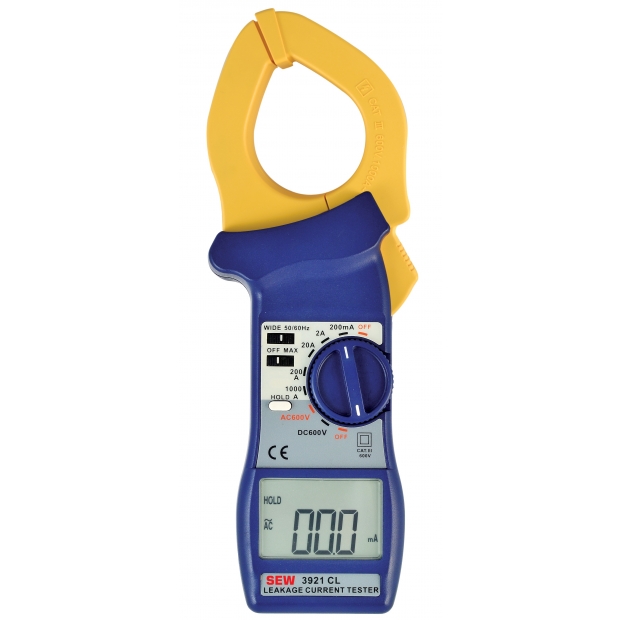

- AC Current Ranges:
- 200mA (0~199.9mA) ±(1.5%rdg+2dgt)
- 2A (019.99A), 200A (0~199.9A) ±(2.0%rdg+2dgt)
- 0-500A ±(2.0%rdg+2dgt), 501-1000A ±5.5%rdg
- AC/DC Voltage Ranges:
- AC 600V / DC 600V, resolution 1V, accuracy ±(1.5%rdg+3dgt) / ±(1.0%rdg+2dgt)
- Conductor Size: 55mm max.
- Display: 3½ digit (2000 counts).
- Battery Life: Approx. 100 hours (Alkaline).
- Power Source: 9V (6F22) × 1.
- Safety Standards: EN 61010-1 CAT III 600V, EN 61010-2-32, EN 61326-1.

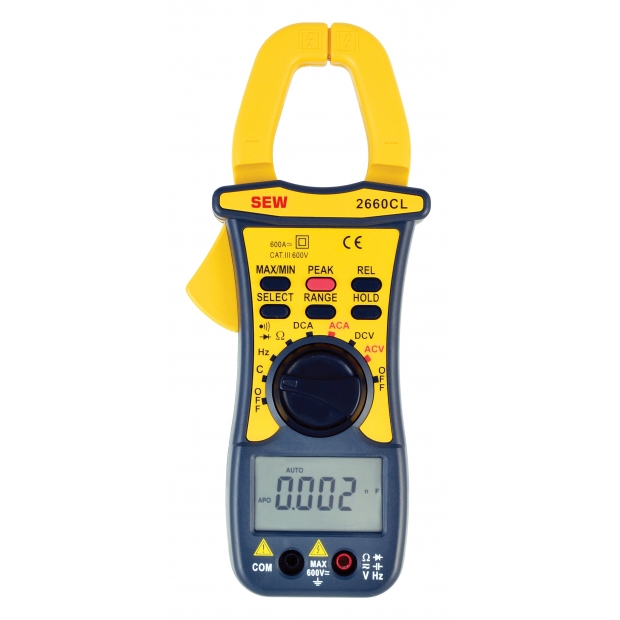

- True RMS measurement for accurate readings.
- 4000-count display for precise measurements.
- Automatic measurement selection (voltage, current, resistance, frequency, capacitance).
- Data hold function to freeze readings.
- Peak function for capturing maximum/minimum values.
- Continuity check and diode testing.
- Low battery indication and auto power-off.
- Flashlight function (auto-off after 1 minute).
- Safety design with shielded banana plugs and recessed input terminals.

- AC Current Ranges:
- 200mA (0~199.9mA) ±(1.5%rdg+2dgt)
- 2A (019.99A), 200A (0~199.9A) ±(2.0%rdg+2dgt)
- 0-500A ±(2.0%rdg+2dgt), 501-1000A ±5.5%rdg
- AC/DC Voltage Ranges:
- AC 200V / AC 600V, resolution 0.1V / 1V, accuracy ±(1.5%rdg+3dgt)
- Conductor Size: 55mm max.
- Display: 3½ digit (2000 counts).
- Battery Life: Approx. 100 hours (Alkaline).
- Power Source: 9V (6F22) × 1.
- Safety Standards: EN 61010-1 CAT III 600V, EN 61010-2-32, EN 61326-1.

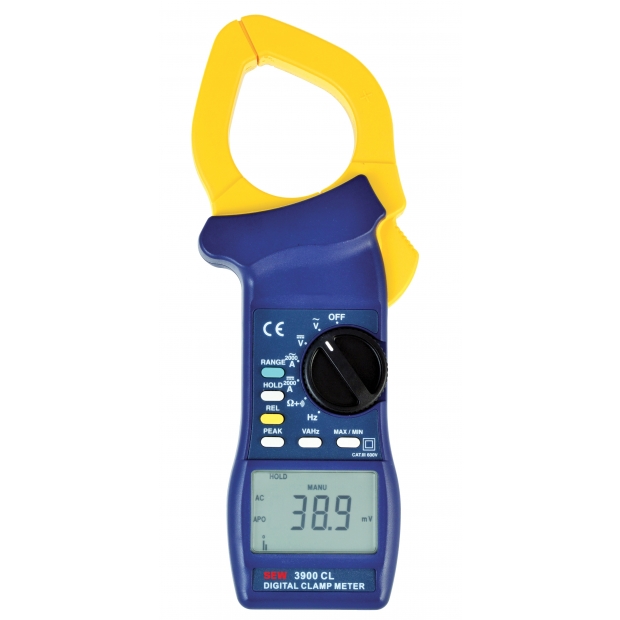

- True RMS measurement for accurate readings.
- 4000-count LCD display for precise measurements.
- Automatic measurement selection (voltage, current, resistance, frequency).
- Data hold function to freeze readings.
- Peak function for capturing maximum/minimum values.
- VAHz mode for frequency measurement in ACV and ACA modes.
- Continuity check and diode testing.
- Low battery indication and auto power-off.
- Safety design with shielded banana plugs and recessed input terminals.

- True RMS measurement for accurate readings.
- 4000-count LCD display for precise measurements.
- Automatic measurement selection (voltage, current, resistance).
- Data hold function to freeze readings.
- Peak function for capturing maximum/minimum values.
- VAHz mode for frequency measurement in ACV and ACA modes.
- Continuity check and diode testing.
- Low battery indication and auto power-off.
- Safety design with shielded banana plugs and recessed input terminals.

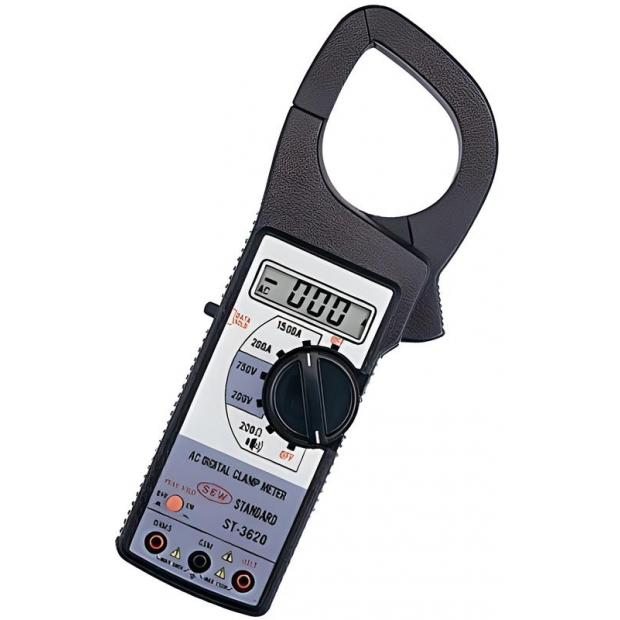

- True RMS measurement for accurate readings.
- Full auto range for voltage, current, and resistance functions.
- Data hold function to freeze readings in dimly lit or hard-to-reach places.
- Low battery indication.
- Built-in buzzer for continuity test.
- Safety design with no exposed metal parts.
- Shielded banana plugs and recessed input terminals.
- Ohm function ideal for checking continuity of relays, transformers, and motor coils.

- AC Current Ranges: 200A / 1500A (40Hz-1kHz), accuracy ±(2.0%rdg+4dgt).
- AC Voltage Ranges: 200V / 750V (40Hz-1kHz), accuracy ±(1.5%rdg+2dgt).
- Resistance Range: 200Ω, accuracy ±(1.5%rdg+2dgt).
- Continuity Test: Buzzer sounds when resistance is less than 30Ω.
- Peak Hold Function: Captures maximum values.
- Conductor Size: 55mm max.
- Operating Temperature: 0ºC ~ 40ºC.
- Power Source: 9V (6F22) × 1.
- Dimensions: 245mm × 70mm × 41.7mm.
- Weight: Approx. 480g (including battery).
- Safety Standards: EN 61010-1 CAT III 600V.

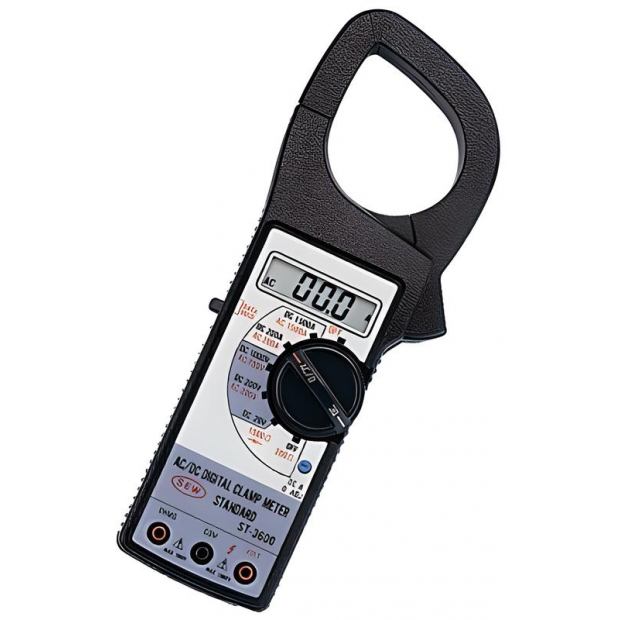

- AC Current Ranges: 200A / 1500A (40Hz-1kHz), accuracy ±(2.0%rdg+4dgt).
- DC Current Ranges: 200A / 1500A, accuracy ±(2%rdg+4dgt).
- AC Voltage Ranges: 200V / 750V (40Hz-1kHz), accuracy ±(1.5%rdg+2dgt).
- DC Voltage Ranges: 20V / 1000V, accuracy ±(1%rdg+2dgt).
- Resistance Range: 200Ω / 1500Ω, accuracy ±(1.5%rdg+2dgt).
- Diode Check: 0-1500mV, accuracy ±(1.5%rdg+2dgt).
- Continuity Test: Buzzer sounds when resistance is less than 100Ω.
- Conductor Size: 55mm max.
- Operating Temperature: 0ºC ~ 40ºC.
- Power Source: 9V (6F22) × 1.
- Dimensions: 245mm × 70mm × 41.7mm.
- Weight: Approx. 480g (including battery).
- Safety Standards: EN 61010-1 CAT III 600V.

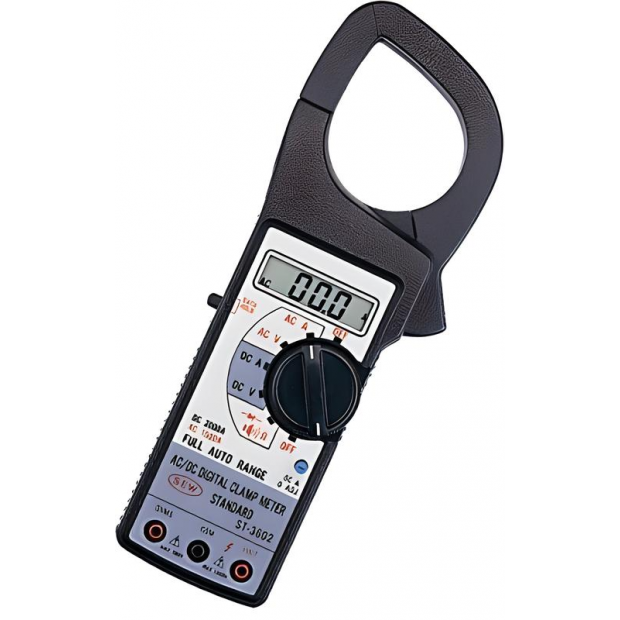

- AC Current Ranges: 200A / 1500A (40Hz-1kHz), accuracy ±(2.0%rdg+4dgt).
- DC Current Ranges: 200A / 1500A, accuracy ±(2%rdg+4dgt).
- AC Voltage Ranges: 200V / 750V (40Hz-1kHz), accuracy ±(1.5%rdg+2dgt).
- DC Voltage Ranges: 20V / 200V / 1000V, accuracy ±(1%rdg+2dgt).
- Resistance Range: 200Ω / 1500Ω, accuracy ±(1.5%rdg+2dgt).
- Diode Check: 0-1500mV, accuracy ±(1.5%rdg+2dgt).
- Continuity Test: Buzzer sounds when resistance is less than 100Ω.
- Conductor Size: 55mm max.
- Operating Temperature: 0ºC ~ 40ºC.
- Power Source: 9V (6F22) × 1.
- Dimensions: 245mm × 70mm × 41.7mm.
- Weight: Approx. 480g (including battery).
- Safety Standards: EN 61010-1 CAT III 600V.

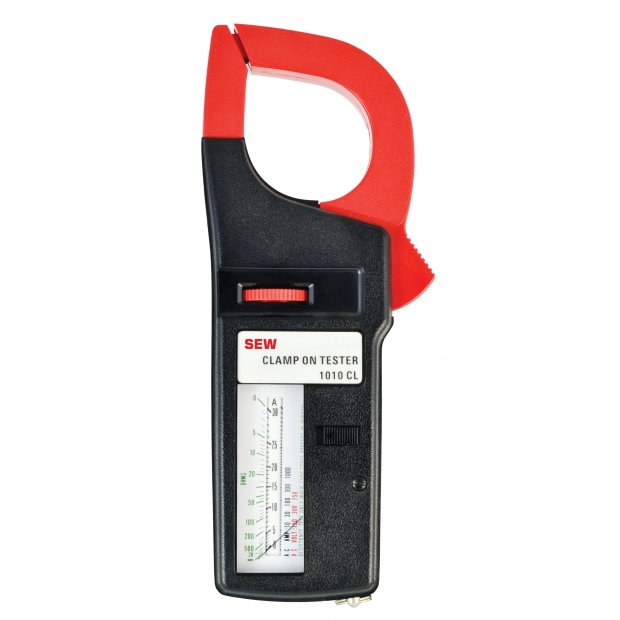

- AC Current Ranges: 10A / 30A / 100A / 300A / 1000A (±3% of full scale).
- AC Voltage Ranges: 150V / 300V / 750V (±3% of full scale).
- Resistance Range: 2kΩ (±3% of scale length).
- Frequency Response:
- 50/60Hz for ACA 10A.
- 50-400Hz for ACA 30A / 100A / 300A / 1000A.
- Conductor Size: 52mm max.
- Dimensions: 227mm × 73mm × 33mm.
- Weight: Approx. 460g (including battery).
- Safety Standards: EN 61010-1 CAT III 600V.
