High Voltage Detector

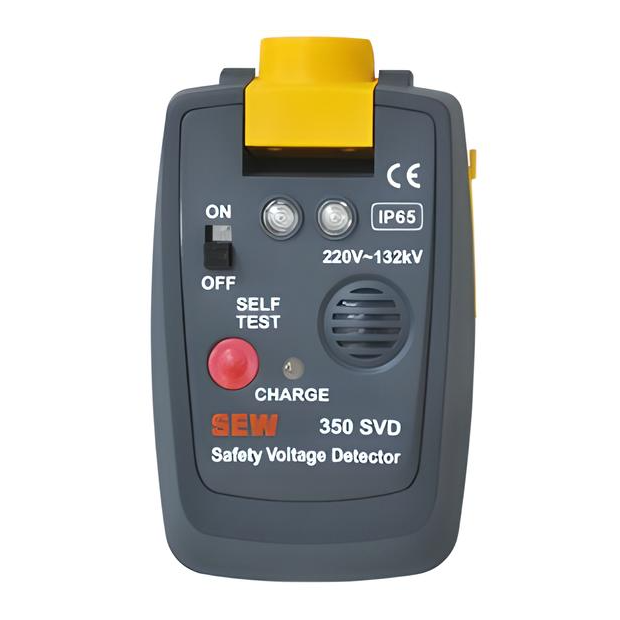

350SVD Voltage Safety Detector

350SVD Voltage Safety Detector

- Non-contact voltage detection: 220V AC ~ 132kV AC.
- Bright LED visual indication and audible alarm.
- Wide-angle voltage detection (approximately 160°).
- Self-test function to verify proper operation.
- Easy-to-prove method for quick validation.
- Flashlight function for use in dim environments.
- Lightweight, robust, and compact design.
- Protection class: IP65.
- Meets safety standards: EN 61326-1.
Specifications:
- Voltage Detection Range: 220V AC ~ 132kV AC.
- Frequency Range: 40 ~ 70 Hz.
- Operating Temperature: 0°C ~ 50°C.
- Humidity: Max 80% R.H..
- Dimensions: 110mm × 68mm × 35mm.
- Weight: Approx. 137g (including battery).
- Power Source: 9V rechargeable battery.
