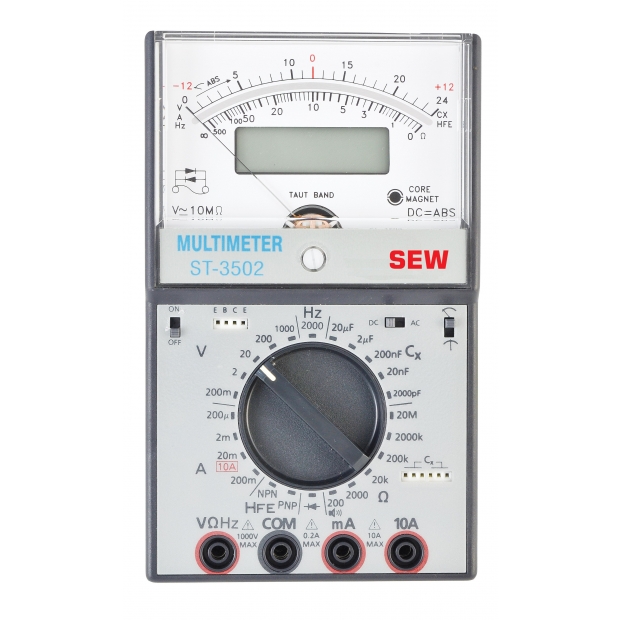

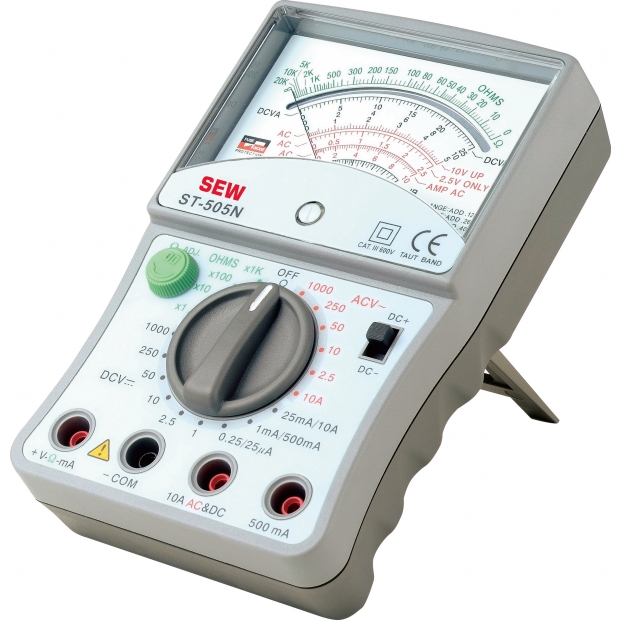

Analog/Digital Multimeter

- DC Voltage Ranges: 0.25V / 1V / 2.5V / 10V / 50V / 250V / 1000V (±2% of full scale).
- AC Voltage Ranges: 2.5V / 10V / 50V / 250V / 1000V (±3% of full scale).
- DC Current Ranges: 25µA / 1mA / 25mA / 500mA / 10A (±2% of full scale).
- AC Current Range: 10A (±3% of full scale).
- Resistance Ranges:
- R × 1: 0.2Ω to 20kΩ.
- R × 10: 2Ω to 200kΩ.
- R × 100: 20Ω to 2MΩ.
- R × 1000: 200Ω to 20MΩ.
- Decibel Meter: -20 to 62dB (0dB = 1mW / 600Ω).
- Power Source: 1.5V (AA) × 2.
- Safety Standards: EN 61010-1 CAT III 600V, EN 61326-1.
- Dimensions: 160mm × 100mm × 45mm.
- Weight: Approx. 380g (including battery).
- Accessories: Test leads, instruction manual, batteries.

- True RMS measurement for accurate readings.
- Automatic polarity indication and zero adjustment.
- Low battery indication and over-range warning.
- Shock and vibration-resistant TAUT BAND movement.
- Selectable pointer mode: Left-hand zero (normal mode) or center zero (galvo mode).
- Peak hold function for capturing maximum values.
- Continuity check with built-in buzzer.
Measurement Ranges:
- DC Voltage: 200mV / 2V / 20V / 200V / 600V.
- AC Voltage: 200mV / 2V / 20V / 200V / 600V.
- DC/AC Current: 200μA / 2mA / 20mA / 200mA / 10A.
- Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- Capacitance: 2000pF / 20nF / 200nF / 2μF / 20μF.
- Frequency: 2000Hz.
- Instant Continuity: Buzzer sounds when resistance is less than 40Ω.

- Automatic polarity indication for ease of use.
- Over-range warning to prevent measurement errors.
- Low battery indication for timely battery replacement.
- Measurement rate: 3 readings per second.
- Compact and lightweight design for portability.
Measurement Ranges:
- DC Voltage: 200mV / 2V / 20V / 200V / 1000V.
- AC Voltage: 200mV / 2V / 20V / 200V / 1000V.
- DC/AC Current: 200μA / 2mA / 20mA / 200mA / 10A.
- Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- Capacitance: 2000pF / 20nF / 200nF / 2μF / 20μF.

- Automatic polarity indication for ease of use.
- Over-range warning to prevent measurement errors.
- Low battery indication for timely battery replacement.
- Measurement rate: 3 readings per second.
- Compact and lightweight design for portability.

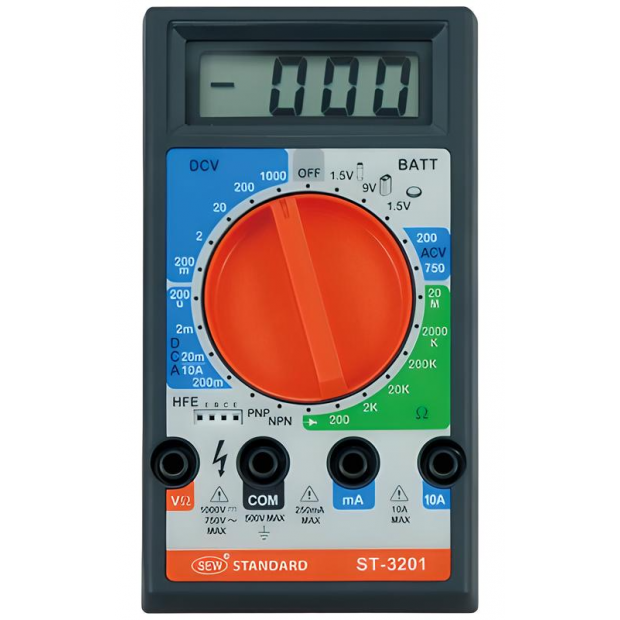

Measurement Ranges:
- DC Voltage: 200mV / 2V / 20V / 200V / 1000V.
- AC Voltage: 200V / 750V.
- DC Current: 200μA / 2mA / 20mA / 200mA / 10A.
- Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- Frequency: 2000Hz.
- Diode Test: 1.0mA test current, 3.2V max test voltage.

- True RMS measurement for accurate readings.
- Automatic polarity indication and zero adjustment.
- Low battery indication and over-range warning.
- Shock and vibration-resistant TAUT BAND movement.
- Selectable pointer mode: Left-hand zero (normal mode) or center zero (galvo mode).
- Peak hold function for capturing maximum values.
- Continuity check with built-in buzzer.
Measurement Ranges:
- DC Voltage: 200mV / 2V / 20V / 200V / 600V.
- AC Voltage: 200mV / 2V / 20V / 200V / 600V.
- DC/AC Current: 200μA / 2mA / 20mA / 200mA / 10A.
- Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- Capacitance: 2000pF / 20nF / 200nF / 2μF / 20μF.
- Frequency: 2000Hz.
- Instant Continuity: Buzzer sounds when resistance is less than 40Ω.

- Auto-ranging design for ease of use.
- Angled display for better readability.
- Continuity check and diode measurement.
- Data hold function to freeze readings.
- Low battery indication and over-range warning.
- Fuse protection for safety.
- Special hook design for hands-free operation.
Measurement Ranges:
- DC Voltage: 400mV / 4V / 40V / 400V / 1000V.
- AC Voltage: 400mV / 4V / 40V / 400V / 750V.
- DC Current: 400μA / 4000μA / 40mA / 400mA / 10A.
- AC Current: 400μA / 4000μA / 40mA / 400mA / 10A.
- Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ.
- Frequency: 4kHz / 40kHz / 400kHz / 4MHz / 40MHz.
- Continuity Test: Buzzer sounds when resistance is below 25Ω.

- True RMS measurement for accurate readings.
- Auto-ranging for ease of use.
- Bar-graph indication for quick visual analysis.
- Data hold function to freeze readings.
- Low battery indication and auto power-off.
- Rugged and compact design for durability.
- IP65 protection rating for enhanced safety.

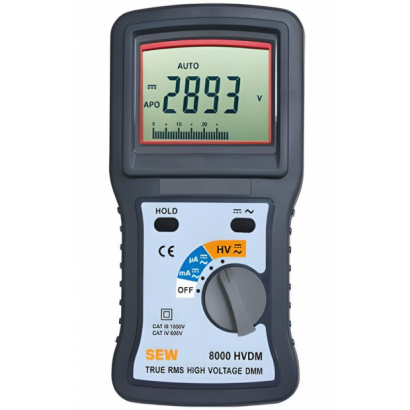

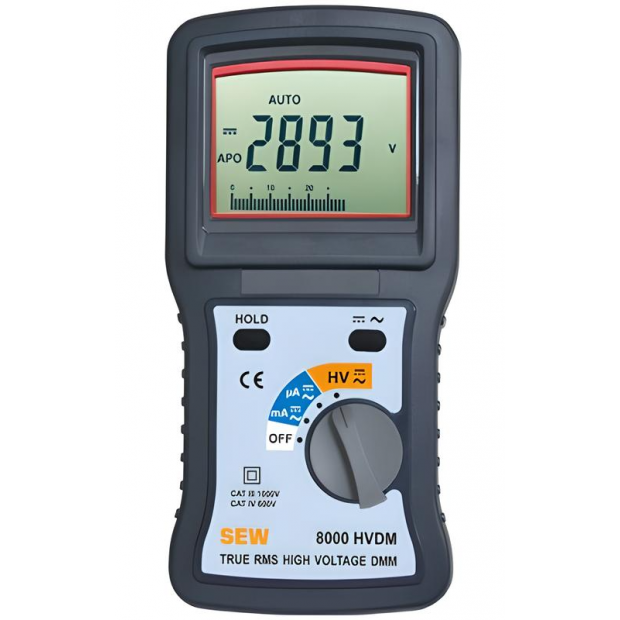

Measurement Ranges:
- DC Voltage: Up to 3000V.
- AC Voltage: Up to 2000V.
- DC/AC Current: Microampere and milliampere measurement.
- Safety Standards: IEC / EN 61010-1 CAT III 1000V, CAT IV 600V.

- Auto-ranging for ease of use.
- Phase rotation indication: Displays clockwise and counterclockwise rotation.
- Voltage, resistance, current, continuity, and diode measurement.
- Capacitance measurement: Up to 40,000μF (40.00mF).
- Resistance measurement: Up to 200MΩ.
- Frequency measurement: Up to 40MHz.
- Data hold function to freeze readings.
- Over-range indication and low battery detection.
- Auto power-off after 15 minutes.
- Convenient stand for viewing.
- Safety standard: EN 61010-1 CAT III 600V.

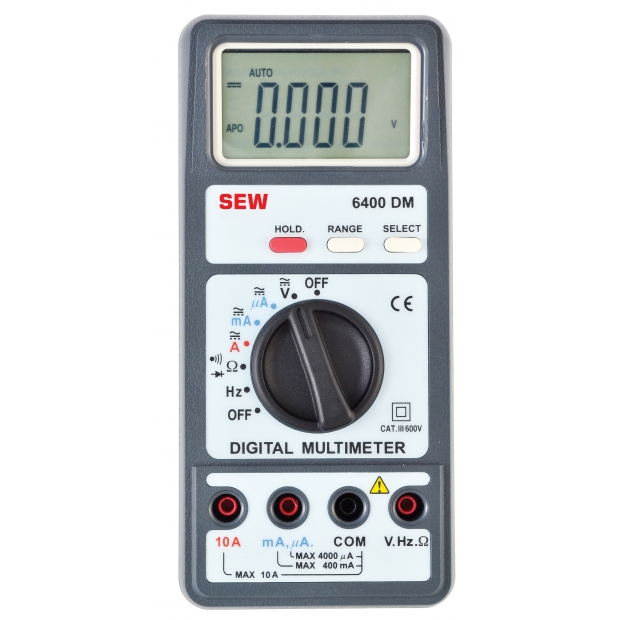

Measurement Ranges:
- DC Voltage: 400mV / 4V / 40V / 400V / 1000V.
- AC Voltage: 400mV / 4V / 40V / 400V / 750V.
- DC/AC Current: 400μA / 4000μA / 40mA / 400mA.
- Resistance: 40Ω / 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ / 200MΩ.
- Capacitance: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF / 40mF.
- Frequency: 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz.
- Phase Rotation: 8080Hz.

- Auto-ranging for ease of use.
- Voltage, resistance, current, continuity, and diode measurement.
- Capacitance measurement: Up to 4000μF.
- Resistance measurement: Up to 40MΩ.
- Frequency measurement: Up to 100kHz.
- Data hold function to freeze readings.
- Over-range indication and low battery detection.
- Auto power-off after 15 minutes.
- Compact and lightweight design for portability.
- Safety standard: EN 61010-1 CAT III 600V.

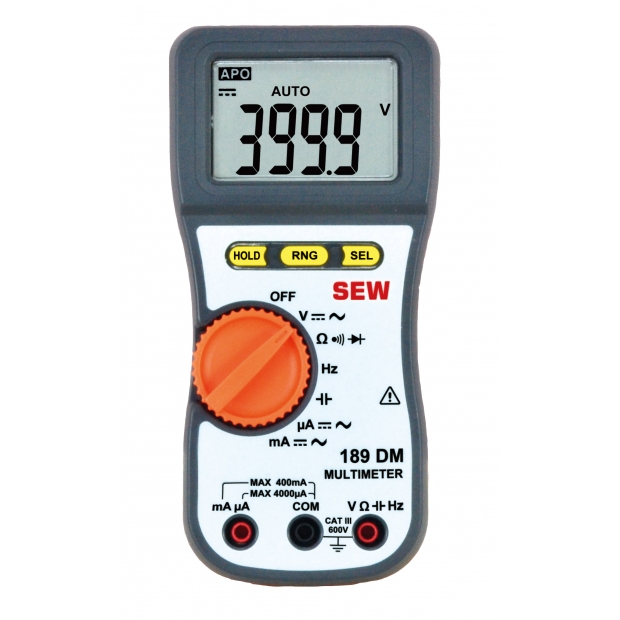

Measurement Ranges:
- DC Voltage: 400mV / 4V / 40V / 400V / 1000V.
- AC Voltage: 400mV / 4V / 40V / 400V / 750V.
- DC/AC Current: 400μA / 4000μA / 40mA / 400mA.
- Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ.
- Capacitance: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF.
- Frequency: 4kHz / 40kHz / 100kHz.
- Continuity Test: Buzzer sounds when resistance is below 25Ω.

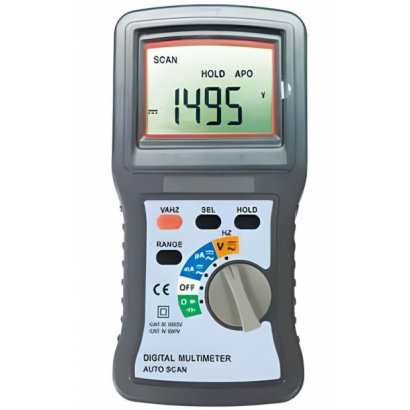

- DC Voltage Measurement: Up to 1500V, suitable for solar applications.
- AC Voltage Measurement: Up to 750V.
- Microampere and milliampere measurement: 600.0 µA ~ 6000 µA, 60.00 mA ~ 600.0 mA.
- Resistance Measurement: 600.0 Ω ~ 60.00 MΩ.
- Capacitance Measurement: 6.000 nF ~ 60.00 mF.
- Frequency Measurement: 6.000 kHz ~ 100.0 kHz.
- Diode and Continuity Testing.
- VAHz function for voltage and current analysis.
- Range change function for flexible measurement.
- Data hold and auto power-off.
- Low battery indication.
- IP65 protection rating for durability.
- Safety Standards: IEC / EN 61010-1 CAT III 1000V, CAT IV 600V.

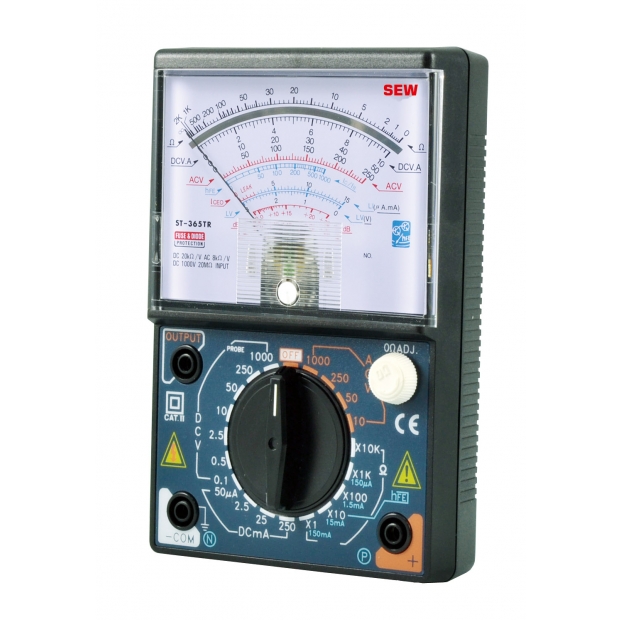

- Easy-to-read 3-color scale for mistake-proof reading.
- Mirror scale to reduce parallax errors.
- Safety fused on all ranges for protection.
- Diode-protected meter to prevent damage due to overload.
- hFE and dB measurement for transistor testing.
- Built-in stand for convenient reading and measuring.
- Safety "OFF" position to enhance protection.
Measurement Ranges:
- DC Voltage: 0.1V / 0.5V / 2.5V / 10V / 50V / 250V / 1000V.
- AC Voltage: 10V / 50V / 250V / 1000V.
- DC Current: 50μA / 2.5mA / 25mA / 250mA.
- Resistance: 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- dB Measurement: -10dB to +22dB.
- hFE Measurement: 0-1000.
- ICEO Measurement: 150μA / 1.5mA / 15mA / 150mA.
Specifications:
- Dimensions: 100mm × 150mm × 41mm.
- Weight: Approx. 300g (including battery).
- Power Source: 1.5V (AA) × 2, 9V (6F22) × 1.
- Safety Standard: EN 61010-1 CAT II 1000V.
