TAHSING Instruments

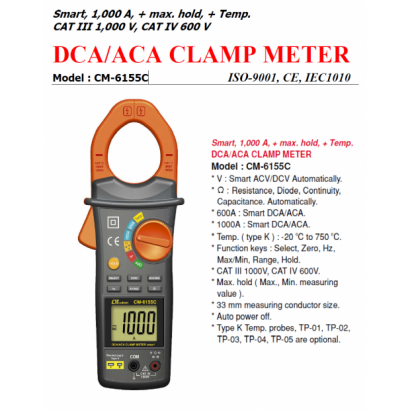

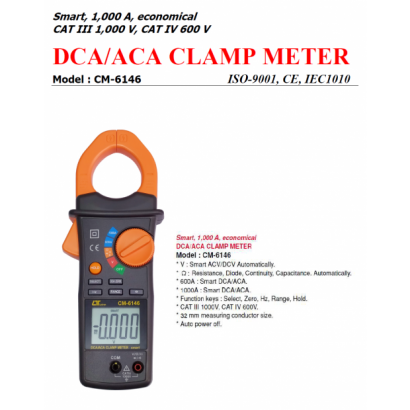

1. Wide Measurement Range: Measures up to 1000 A for both ACA (Alternating Current Amperes) and DCA (Direct Current Amperes), with two ranges for each (600 A, 1000 A).

2. Smart Functionality: Features intelligent functions that automatically select ACV, DCV, resistance, diode, continuity beeper, capacitance, ACA, and DCA measurements with auto range.

3. High Accuracy and Resolution: Provides high resolution with 6000 counts A/D and accurate readings for various measurements.

4. User-Friendly Design: Includes a bright LCD display, data hold function, and auto power off to save battery life.

5. Safety Compliance: Meets IEC 1010 CAT III 1000 V and CAT IV 600 V safety standards, ensuring reliable and safe operation.

1. Wide Measurement Range: Measures up to 1000 A for both ACA (Alternating Current Amperes) and DCA (Direct Current Amperes), with two ranges for each (600 A, 1000 A).

2. Smart Functionality: Features intelligent functions that automatically select ACV, DCV, resistance, diode, continuity beeper, capacitance, ACA, and DCA measurements with auto range.

3. High Accuracy and Resolution: Provides high resolution with 6000 counts A/D and accurate readings for various measurements.

4. User-Friendly Design: Includes a bright LCD display, data hold function, and auto power off to save battery life.

5. Safety Compliance: Meets IEC 1010 CAT III 1000 V safety standards, ensuring reliable and safe operation.

- Non-contact voltage detection for enhanced safety.
- Designed for indoor and outdoor use.
- Waterproof construction (IP65-rated).
- Self-test function to verify proper operation.
- Low power consumption for extended battery life.
- CE Certified.
Specifications:
- Voltage Detection Distance: 120 cm for 11kV (phase to ground).
- Applicable Frequency: 50 / 60 Hz.
- Audible Alarm Volume: ≥65dB at 1 meter.
- Operating Temperature & Humidity: 0°C - 40°C / 80% RH.
- Dimensions: 79mm × 33mm × 42mm (excluding watch strap).
- Weight: Approx. 42g (battery included).
- Battery Type: CR2032.
- Battery Life: 50 hours of continuous use.

- Non-contact voltage detection for enhanced safety.
- Designed for indoor and outdoor use.
- Waterproof construction (IP67-rated).
- Self-test function to verify proper operation.
- Low power consumption for extended battery life.
- CE Certified.

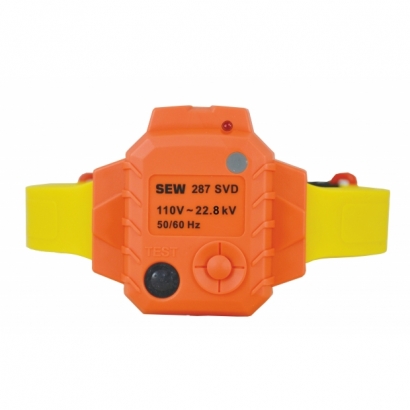

Specifications:
- Voltage Detection Distance:
- 6.6kV (3.8kV phase to ground): 40cm ± 20%.
- 11.4kV (6.6kV phase to ground): 55cm ± 20%.
- 19.7kV (11.4kV phase to ground): 80cm ± 20%.
- 22.8kV (13.2kV phase to ground): 85cm ± 20%.
- Applicable Frequency: 50 / 60 Hz.
- Audible Alarm Volume: ≥70dB at 1 meter.
- Operating Temperature & Humidity: 0°C - 40°C / 80% RH.
- Dimensions: 61mm × 62mm × 18.5mm.
- Weight: Approx. 70g (battery included).
- Battery Type: CR2032.
- Battery Life: 50 hours of continuous use.

WAKO Amp Meter (Pointer-Type Panel Meter)
- Measurement Range
- AC Current (AC-A): 1A to 5A
- AC Voltage (AC-V): 1V to 600V
- DC Current (DC-A): 50μA to 30A
- DC Voltage (DC-V): 50mV to 600V
- Accuracy Class
- Class 1.5, ensuring precise readings.
- Display Type
- Analog pointer display, providing clear and intuitive readings.
- Dimensions
- Standard size design, suitable for embedded installation.
- Applications
- Industrial equipment monitoring
- Power system testing
- Energy consumption management
The WAKO Amp Meter supports multiple measurement functions, including AC-V, AC-A, DC-V, DC-A, HZ, and RPM.

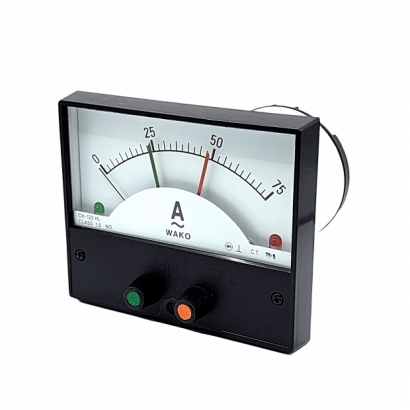

Models include:
- CH-100H (Upper alarm)
- CH-100HL (Upper/Lower alarm)
- CH-120H (Upper alarm)
- CH-120HL (Upper/Lower alarm)

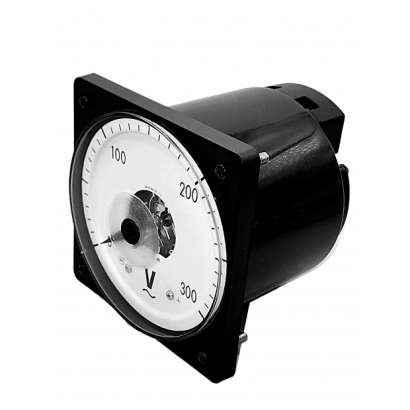

1. Accuracy Class
• Class 1.5
2. Measuring Range
• AC Current: 1A to 5A
• AC Voltage: 1V to 600V
• DC Current: 50μA to 30A
• DC Voltage: 50mV to 600V
3. Construction Materials
• Base: Bakelite
• Cover: PC (Polycarbonate)
• Front Frame: Black ABS
• Inner Frame: Gray ABS
4. Pointer Design
• Made of aluminum alloy
• Customizable colors: black, red, white, etc.
5. Anti-Static Treatment
• All meters are treated for electrostatic protection
6. Damping & Overshoot
• Customizable damping and overshoot
• Typical overshoot ≤ 15% of full scale
7. Operating Temperature
• -20°C to +50°C
8. Mounting Position
• Standard: Vertical
• Optional: Horizontal or inclined (customized)
9. External Shunt Voltage Drop (for DC Ammeters)
• Available specs: 150mV, 100mV, 75mV, 60mV, 50mV
10. Dimensions
• Overall: 110 × 110 mm
• Panel Cutout: Φ103 mm

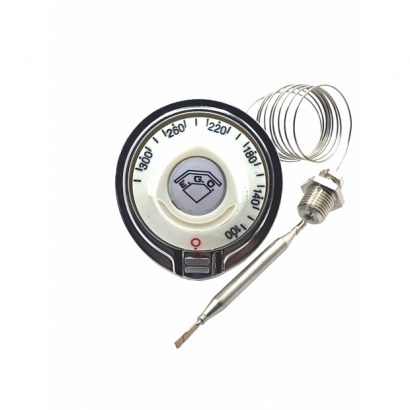

- Temperature Range: Adjustable from 100°C to 300°C, suitable for various heating systems.
- 3P Design: Features three connection points, ensuring stable and reliable operation.
- Durable Construction: Made with high-quality materials for long-lasting performance.
- Safety Mechanism: Includes overheat protection to prevent damage.
Applications
- Industrial Heating Systems
- Ovens and Cooking Appliances
- Water Heaters and Boilers
- Factory Equipment Temperature Control

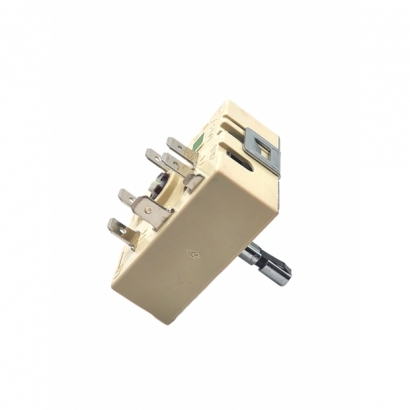

- Voltage Compatibility: Available in 120V and 230V versions, suitable for different electrical systems.
- Precise Energy Control: Adjusts power levels to ensure stable and efficient heating regulation.
- Durable Construction: Made with high-quality materials for long-term reliability.
- Compact Design: Ideal for embedded installation in heating appliances.
Applications
- Electric Cooking Equipment (Stoves, Ovens)
- Industrial Heating Systems
- Temperature Control for Processing Equipment
