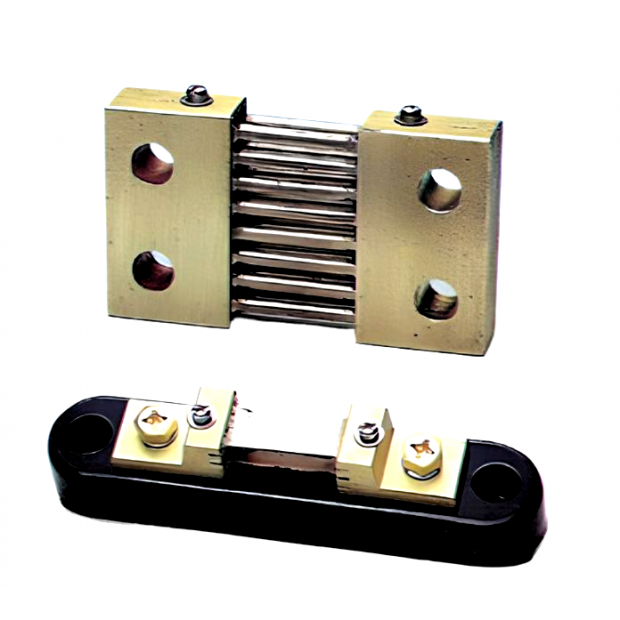

Shunt

Shunt Resistor for Current Measurement
- Current Measurement
- A shunt resistor diverts a portion of high current, allowing precise measurement by detecting the voltage drop across it.
- Commonly used with ammeters or testing equipment for accurate current monitoring.
- Current Limiting
- In certain circuits, a shunt helps protect sensitive components by preventing excessive current flow that could damage equipment.
Key Features
- High Precision
- Made from low-resistance metal to ensure measurement accuracy and stability.
- High Current Endurance
- Designed to withstand large current flows without degradation.
- Versatile Design
- Available in various sizes and specifications, suitable for different current ranges and environments.
Applications
- Power Testing & Analysis: Used for measuring high-current circuits.
- Electronic Devices: Helps monitor or limit current in electrical circuits.
- Industrial Equipment: Ensures precise current monitoring in large-scale power systems.

Shunt

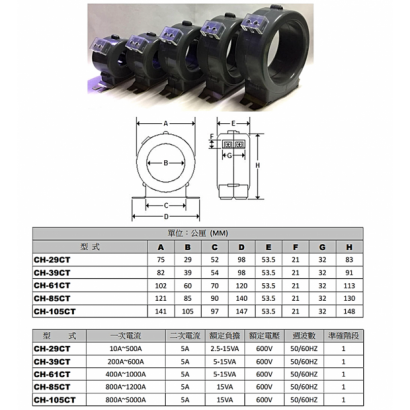

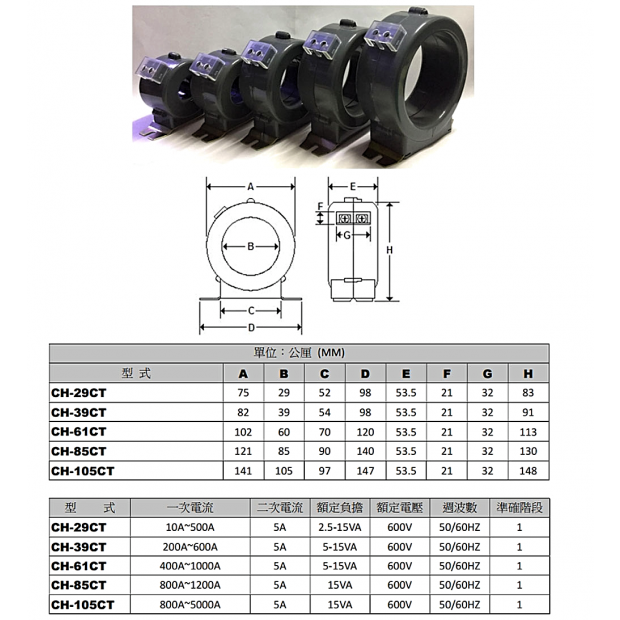

Enclosed Current Transformer (CT)

- Protective Housing: Typically made of flame-retardant plastic or metal, shielding internal components from moisture, dust, and mechanical damage.
- High Accuracy: Designed for precise current measurement, often with Class 0.5 or Class 1 accuracy.
- Multiple Mounting Options: Can be installed on busbars, panels, or electrical systems.
- Safety & Isolation: Provides electrical insulation, reducing risks in high-voltage environments.
Applications:
- Power Distribution Systems: Used for current monitoring and protection.
- Industrial Automation: Helps track energy consumption and load management.
- Switchgear & Control Panels: Integrated into electrical protection and metering setups.

Enclosed Current Transformer (CT)

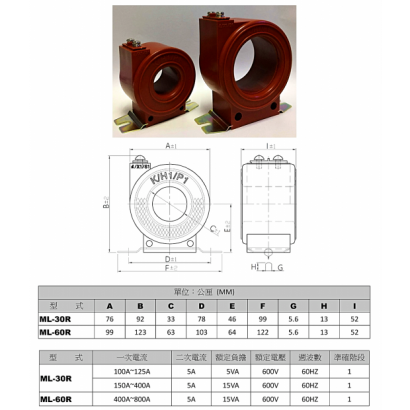

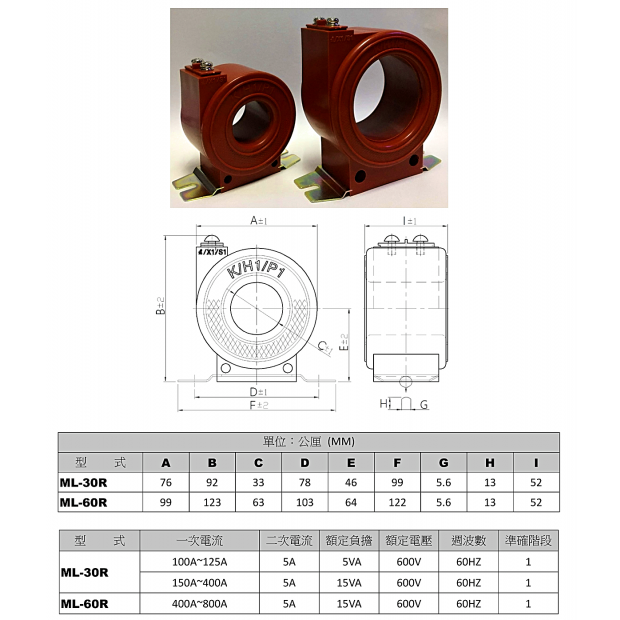

Encapsulated Current Transformer (CT)-ML30R/ML60R

- Resin or Plastic Encapsulation: Provides mechanical strength, electrical insulation, and environmental protection.
- High Accuracy: Typically Class 0.5 or Class 1, ensuring precise current measurement.
- Compact & Durable: Designed for harsh environments, including high humidity and temperature variations.
- Multiple Mounting Options: Can be installed on busbars, panels, or directly onto electrical systems.
Applications:
- Power Distribution Systems: Used for current monitoring and protection.
- Industrial Automation: Helps track energy consumption and load management.
- Switchgear & Control Panels: Integrated into electrical protection and metering setups.

Encapsulated Current Transformer (CT)-ML30R/ML60R

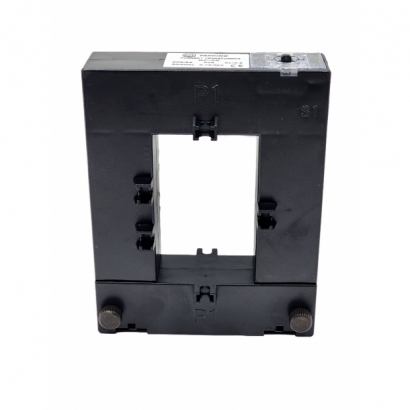

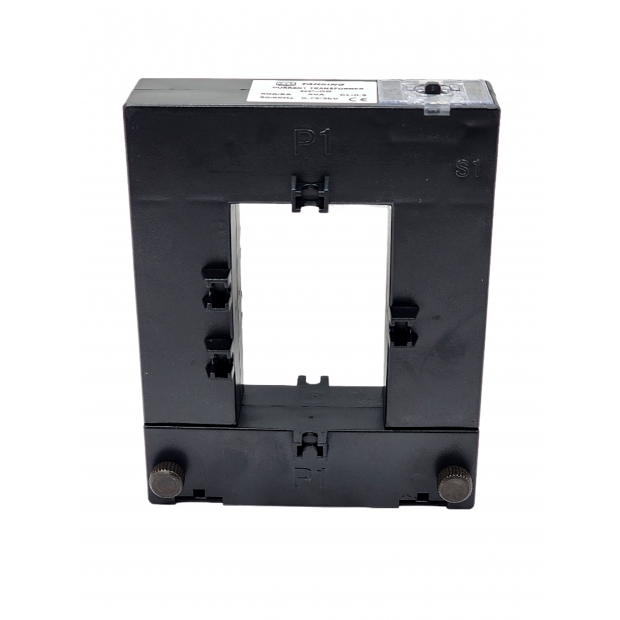

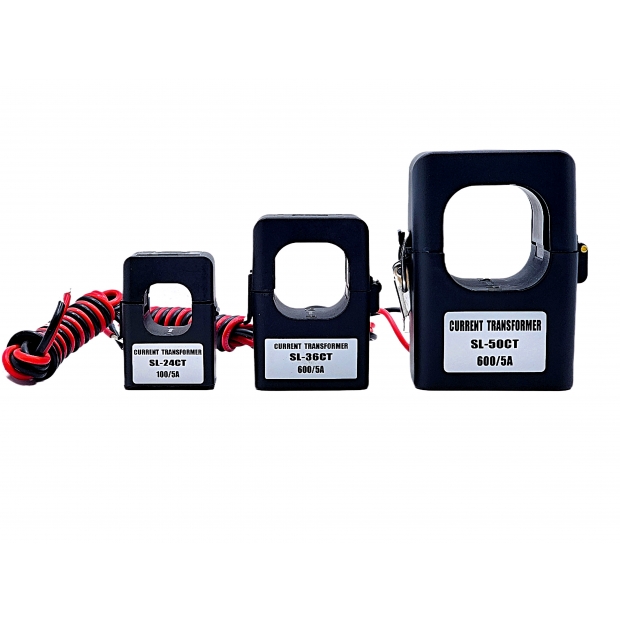

SCT CT / Split-Core Current Transformers (SCTs)

Model:DP23,DP58,DP88,DP812,DP816
- Split-Core Design: Allows for quick installation by clamping around a conductor.
- Wide Current Range: Can measure currents from 5A to 1500A.
- High Accuracy: Typically Class 0.5 or Class 1, ensuring precise readings.
- Compact & Durable: Often housed in flame-retardant plastic for safety.
- Multiple Output Options: Provides 5A, 1A, or voltage output (333mV, 1V, 5V).
Applications:
- Energy Metering: Used in sub-metering systems for power consumption tracking.
- Industrial Load Monitoring: Helps optimize electrical efficiency.
- Building Automation: Integrated into smart energy management systems.

SCT CT / Split-Core Current Transformers (SCTs)

Clamp-On Current Transformer

- Easy Installation: No need to cut or disconnect wires—just clamp it around the conductor.
- Wide Measurement Range: Available for currents from 1A to 1000A.
- High Accuracy: Provides stable output signals with minimal error.
- Safety & Isolation: Offers high circuit isolation, reducing electrical risks.
- Compact & Lightweight: Designed for portable and fixed applications.
Applications:
- Power Monitoring: Used in energy audits and load analysis.
- Industrial Automation: Helps track current consumption in machinery.
- Electrical Maintenance: Ideal for troubleshooting and diagnostics.

Clamp-On Current Transformer

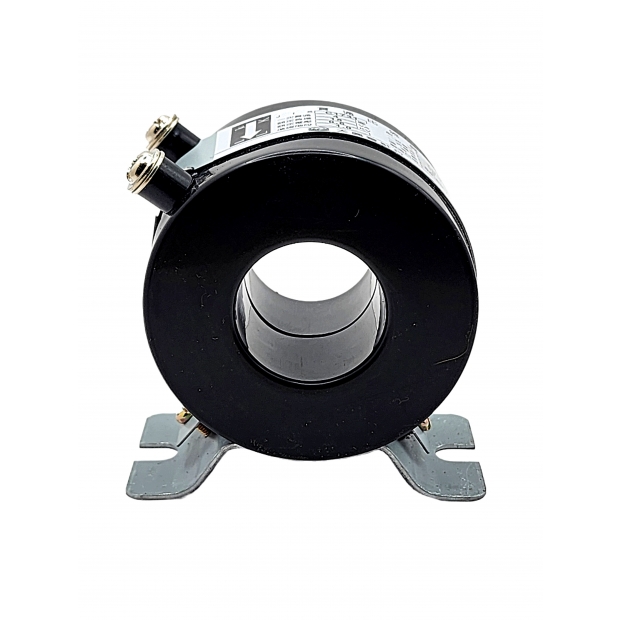

MFO Series Current Transformer (CT)

● The insulated housing of the current transformer is made of flame-retardant plastic with a fully sealed design.
● The core is wound using oriented cold-rolled silicon steel sheets.
● The secondary wiring uses electromagnetic enameled wire, with the wire diameter strictly selected according to economic current density to reduce temperature rise.

MFO Series Current Transformer (CT)

Through-Type Current Transformer

- Flame-Retardant Insulated Housing: Made of high-quality plastic with a fully sealed design for safety.
- High-Performance Core: Constructed using oriented cold-rolled silicon steel sheets, ensuring stable and accurate measurements.
- Optimized Secondary Wiring: Uses electromagnetic enameled wire, with the wire diameter carefully selected based on economic current density to minimize temperature rise.
Applications:
- Industrial Power Monitoring
- Energy Management Systems
- Electrical Protection and Fault Detection

Through-Type Current Transformer
