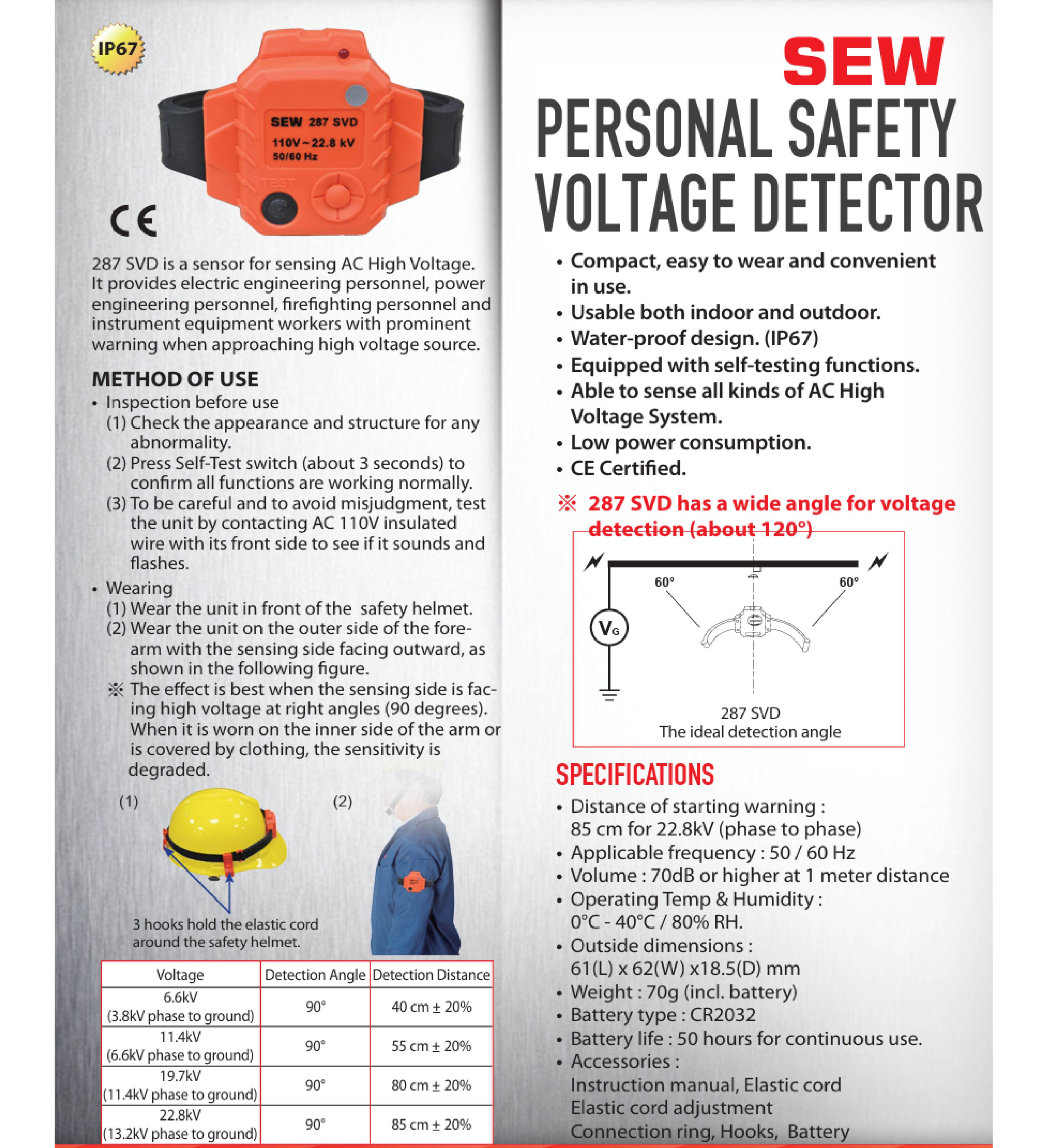

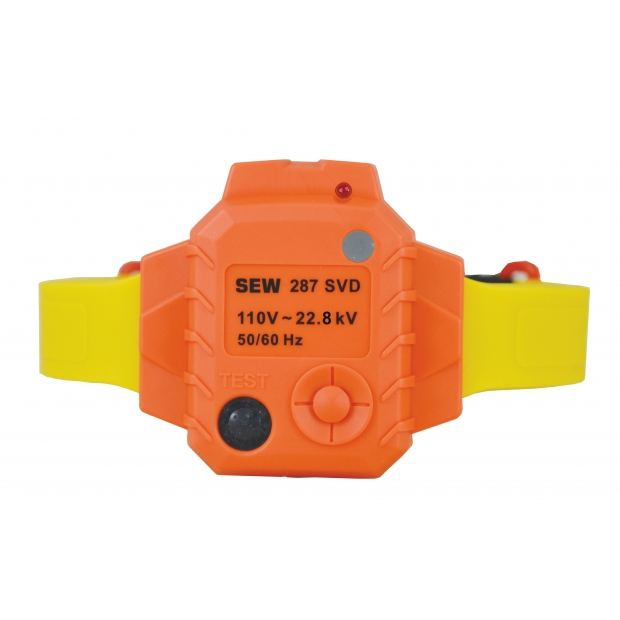

287SVD High Voltage Sensor

- Non-contact voltage detection for enhanced safety.
- Designed for indoor and outdoor use.
- Waterproof construction (IP67-rated).
- Self-test function to verify proper operation.
- Low power consumption for extended battery life.
- CE Certified.
Specifications:
- Voltage Detection Distance:
- 6.6kV (3.8kV phase to ground): 40cm ± 20%.
- 11.4kV (6.6kV phase to ground): 55cm ± 20%.
- 19.7kV (11.4kV phase to ground): 80cm ± 20%.
- 22.8kV (13.2kV phase to ground): 85cm ± 20%.
- Applicable Frequency: 50 / 60 Hz.
- Audible Alarm Volume: ≥70dB at 1 meter.
- Operating Temperature & Humidity: 0°C - 40°C / 80% RH.
- Dimensions: 61mm × 62mm × 18.5mm.
- Weight: Approx. 70g (battery included).
- Battery Type: CR2032.
- Battery Life: 50 hours of continuous use.
