High Voltage Detector

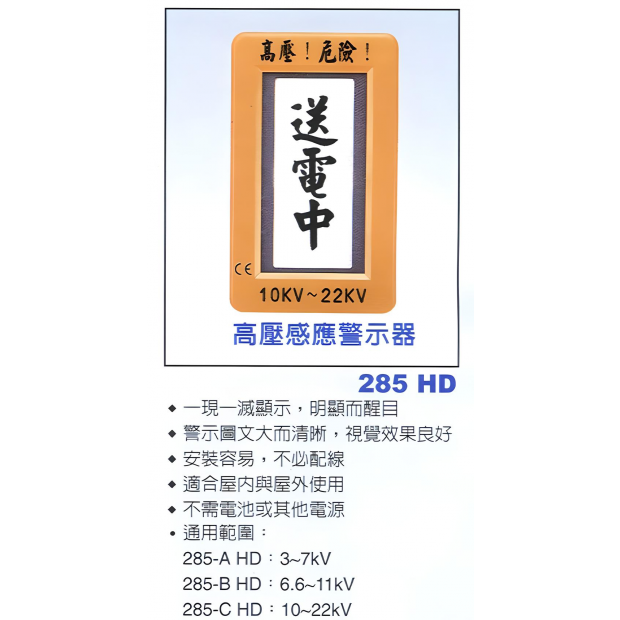

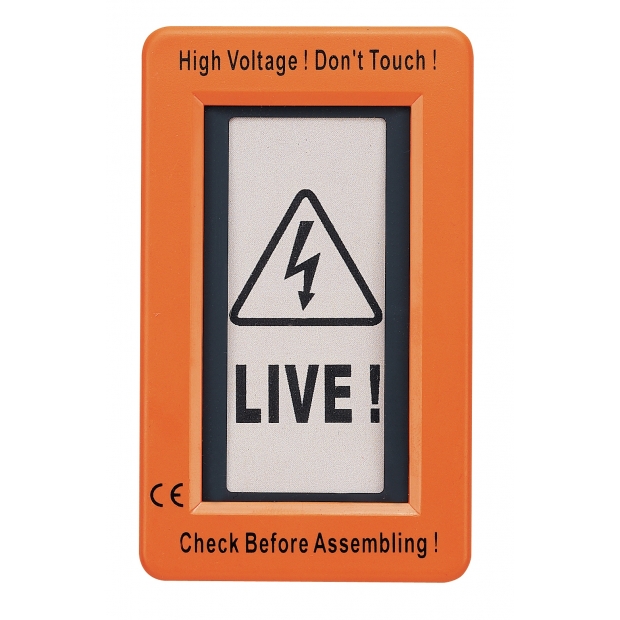

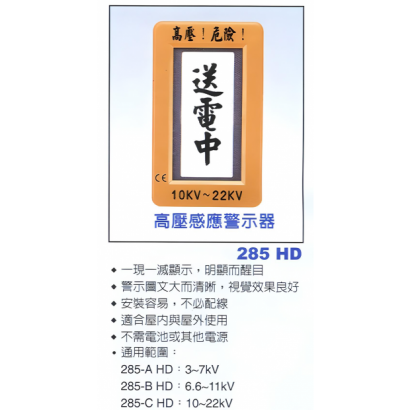

285HD High Voltage Induction Detector

285HD High Voltage Induction Detector

- Three voltage detection ranges:
- 285-A HD: 3~7 kV.
- 285-B HD: 6.6~11 kV.
- 285-C HD: 10~22 kV.
- Large LCD display with continuous flashing when high voltage is detected.
- Non-contact detection—no physical contact required.
- Radiated field sensing—voltage strength increases with proximity.
- Compact and lightweight design (approx. 80g).
- Easy installation with a metal clip and cable ties.
- Continuous monitoring for enhanced safety.
- No battery required.
- Meets safety standards: EN 61326-1, EN 55011, EN 61000-4-2, EN 61000-4-3.。

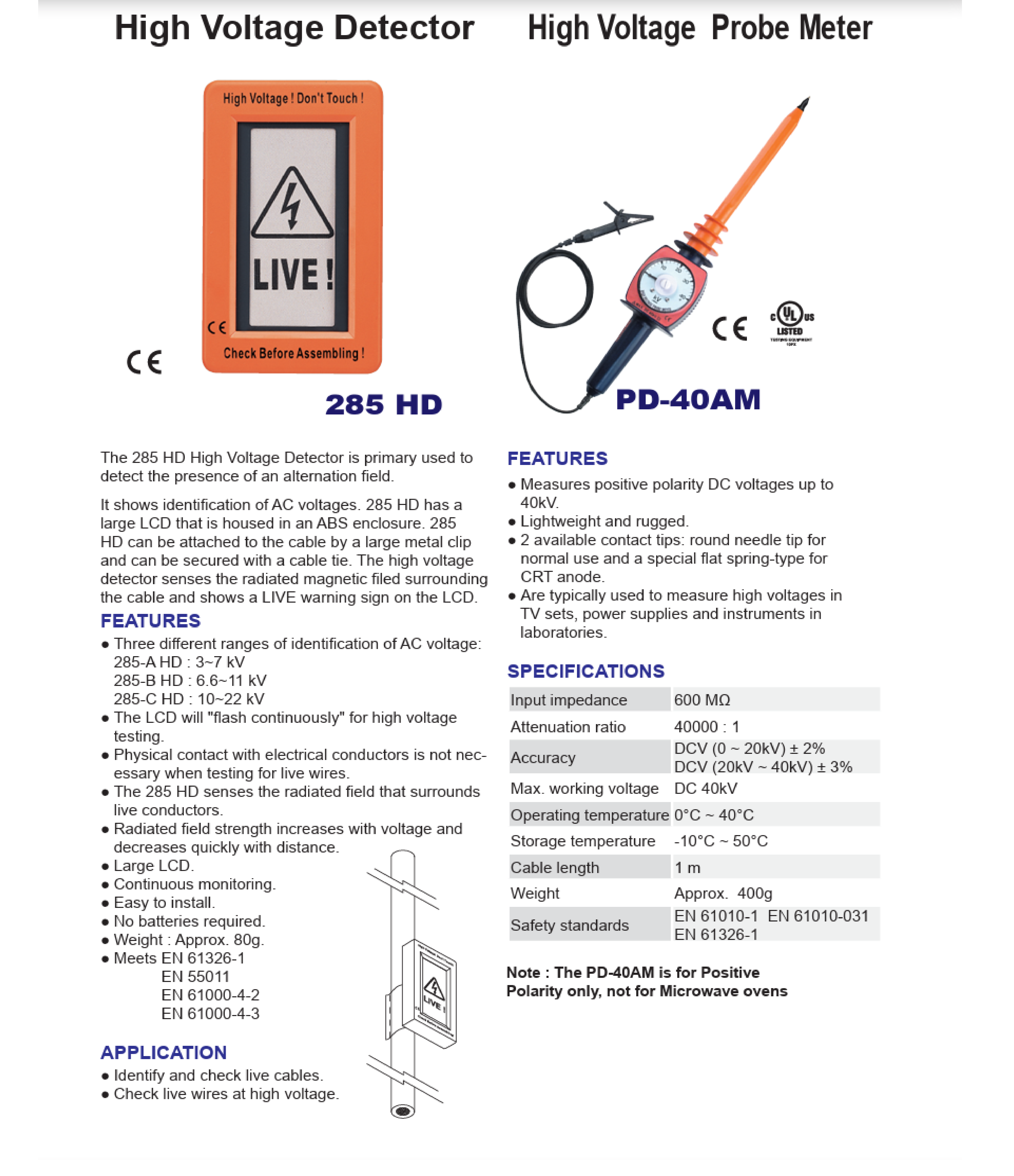

  • 285HD High Voltage Detector_.jpg
