Earth Resistance Meter

- Earth resistance measurement: 0-12Ω, 0-120Ω, 0-1200Ω.
- Earth voltage measurement: 0-30V AC (40-500Hz).
- 2mA measuring current, allowing testing without tripping earth leakage breakers.
- Battery-operated with a battery life indicator.
- Calibration performed with supplied test leads.
- Supports both two-wire and three-wire measurement systems.
- Compact design: 175mm × 85mm × 75mm, weighing approximately 600g.
- Safety standards: EN 61010-1 CAT IV 30V, EN 61326-1.

- Earth resistance measurement: 0-20Ω, 0-200Ω, 0-2000Ω.
- Earth voltage measurement: 0-200V AC (40-500Hz).
- 2mA measuring current, allowing testing without tripping earth leakage breakers.
- Battery-operated with a low battery indicator.
- Data hold function for easy readings.
- Over-range indication: “1” (MSD).
- Calibration performed with supplied test leads.
- Safety standards: EN 61010-1 CAT III 300V, IEC 61557-1, IEC 61557-5, EN 61326-1.
- Compact design: 170mm × 165mm × 92mm, weighing approximately 1040g.

- Earth resistance measurement: 0-10Ω, 0-100Ω, 0-1000Ω.
- Earth voltage measurement: 0-30V AC (40-500Hz).
- 2mA measuring current, allowing testing without tripping earth leakage breakers.
- Battery-operated with a battery check function.
- Calibration performed with supplied test leads.
- Safety standards: EN 61010-1 CAT III 300V, EN 61326-1.
- Compact design: 170mm × 165mm × 92mm, weighing approximately 1000g.
- Accessories included: Test leads (red-15m, yellow-10m, green-5m), auxiliary earth spikes, simplified measurement probe, shoulder belt, and batteries.

- Earth resistance measurement: 0-20Ω, 0-200Ω, 0-2000Ω.
- Earth voltage measurement: 0-200V AC (40-500Hz).
- 2mA measuring current, allowing testing without tripping earth leakage breakers.
- Battery-operated with a low battery indicator.
- Data hold function for easy readings.
- Over-range indication: “1” (MSD).
- **Calibration performed with supplied test leads.
- Safety standards: IEC 1010 CAT III 200V.
- Compact design: 163mm × 100mm × 50mm, weighing approximately 480g.

- High-quality shock-resistant meter head for stable readings.
- Measures earth resistance and ground voltage accurately.
- Automatic timer function for long-duration testing (about 3-5 minutes).
- Battery-operated with a battery check function.
- Calibration performed with supplied test leads.
- Safety standard compliance: EN 61010-1 CAT II 30V.
- Compact and lightweight design (163mm × 100mm × 50mm, approx. 460g).
- Comes with accessories: test leads (red-15m, yellow-10m, green-5m), auxiliary earth spikes, carrying case, and batteries.

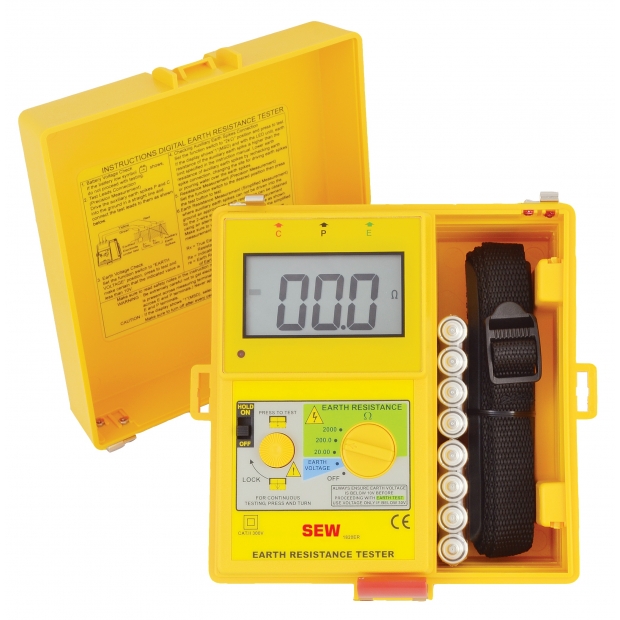

- Earth Resistance Ranges: 0-20Ω / 0-200Ω / 0-2000Ω.
- Earth Voltage Range: 0-200V (40-500Hz).
Accuracy:
- Earth resistance: ±(2%rdg+2dgt) at 200/2000Ω, ±(2%rdg+0.1Ω) at 20Ω.
- Earth voltage: ±(1%rdg+2dgt).
- Display: 3½ digit (2000 counts).
- Power Source: 1.5V (AA) × 8.
- Safety Standards: EN 61010-1 CAT III 300V, IEC 61557-1, IEC 61557-5, EN 61326-1.
- Accessories: Test leads (red-15m, yellow-10m, green-5m), auxiliary earth spikes, carrying case, batteries.

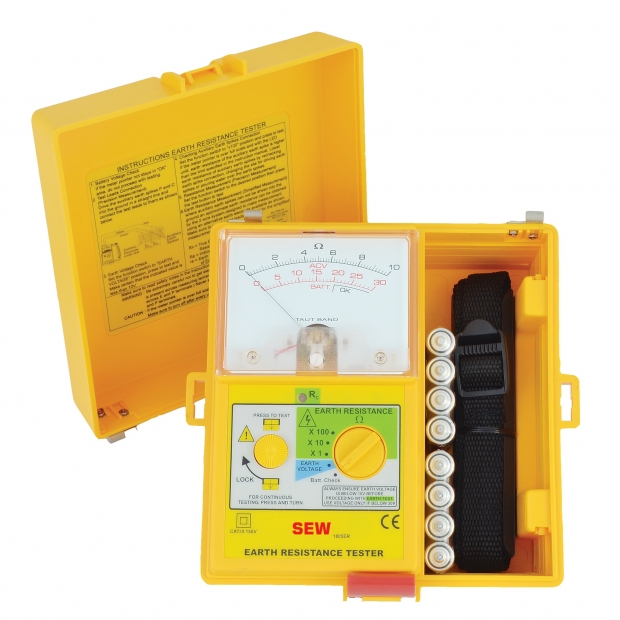

- Earth Resistance Ranges: 0-12Ω / 0-120Ω / 0-1200Ω.
- Earth Voltage Range: 0-30V AC (40-500Hz).
- Accuracy:
- Earth resistance: ±3% of full scale.
- Earth voltage: ±2.5% of full scale.
- Power Source: 1.5V (AA) × 8.
- Safety Standards: EN 61010-1 CAT III 30V, EN 61326-1.
- Accessories: Test leads (red-15m, yellow-10m, green-5m), auxiliary earth spikes, carrying case, batteries.

- Earth Resistance Ranges: 0-12Ω / 0-120Ω / 0-1200Ω.
- Earth Voltage Range: 0-30V AC (40-500Hz).
Accuracy:
- Earth resistance: ±3% of full scale.
- Earth voltage: ±2.5% of full scale.
- Power Source: 1.5V (AA) × 8.
- Safety Standards: EN 61010-1 CAT III 30V, EN 61326-1.
- Accessories: Test leads (red-15m, yellow-10m, green-5m), auxiliary earth spikes, carrying case, batteries.

- Earth Resistance Ranges: 0-20Ω / 0-200Ω / 0-2000Ω.
- Earth Voltage Range: 0-200V AC (40-500Hz).
Accuracy:
- Earth resistance: ±(2%rdg+2dgt) or ±0.1Ω, whichever is greater.
- Earth voltage: ±(1%rdg+2dgt).
- Resolution:
- 0-20Ω: 0.01Ω.
- 0-200Ω: 0.1Ω.
- 0-2000Ω: 1Ω.
- Measuring System: Earth resistance by constant current inverter (820Hz, 2mA approx.).
- Display: 3½ digit (2000 counts).
- Power Source: 1.5V (AA) × 6.
- Safety Standards: EN 61010-1 CAT III 200V, IEC 61557-1, IEC 61557-5, EN 61326-1.
- Accessories: Test leads (red-15m, yellow-10m, green-5m), auxiliary earth spikes, carrying case, batteries.
