High Voltage Detector

- Non-contact voltage detection for enhanced safety.
- Waterproof design (IP68-rated) for indoor and outdoor use.
- Self-test function to verify proper operation.
- Low power consumption for extended battery life.
- Compact and easy to wear.
Specifications:

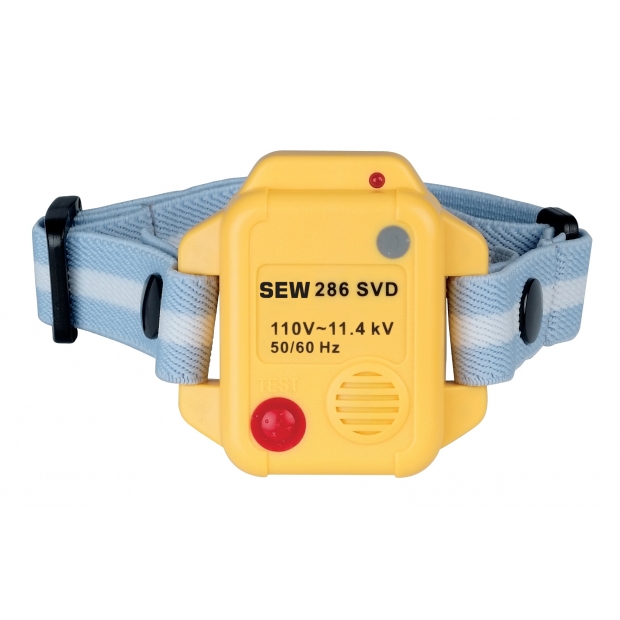

- Voltage Detection Distance: 80 cm for 11.4kV (phase to ground).
- Applicable Frequency: 50 / 60 Hz.
- Audible Alarm Volume: ≥70dB at 1 meter.
- Operating Temperature & Humidity: 0°C - 40°C / 80% RH.
- Dimensions: 59mm × 56mm × 18mm.
- Weight: Approx. 35g (battery included).
- Battery Type: CR2032.
- Battery Life: 50 hours of continuous use.

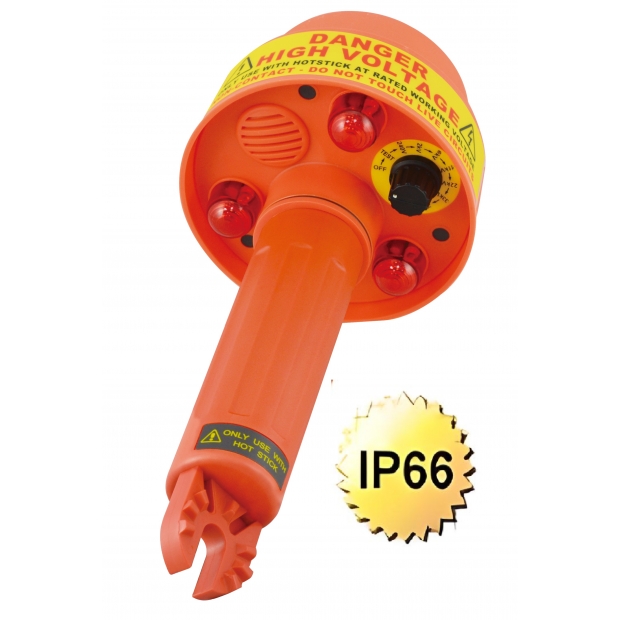

- Eight voltage settings: 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV.
- 360° LED indication with three bright LED indicators for easy viewing.
- Sound indication when voltage is detected.
- Flashlight function for use in dim environments.
- Self-test function to verify proper operation.
- Non-contact detection for enhanced safety.
- Compatible with most hot sticks for extended reach.
- Lightweight, robust, and compact design.
- Easy battery access with no special parts required.
- Protection class: IP66.
- Meets safety standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8.
Specifications:
- Operating Temperature: -10°C ~ 50°C.
- Storage Temperature: -20°C ~ 60°C.
- Humidity: 85% R.H. @ 40°C.
- Case Dimensions: 265mm × 117mm.
- Weight: Approx. 600g (including batteries).
- Power Source: 1.5V “C” × 3 Alkaline Batteries.

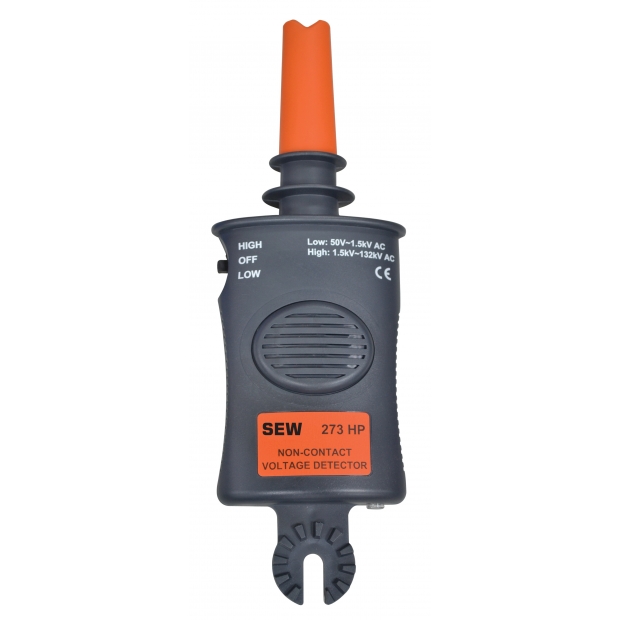

- Two voltage ranges:
- Low range: 50V ~ 1.5kV AC.
- High range: 1.5kV ~ 132kV AC.
- Non-contact detection for enhanced safety.
- Bright LED visual indication and audible alarm.
- Mechanical slide switch for easy function selection.
- Lightweight, robust, and compact design.
- Compatible with hot sticks for extended reach.
- Meets safety standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3.
Specifications:
- Operating Temperature: 0°C ~ 40°C.
- Dimensions: 245mm × 80mm × 37mm.
- Weight: Approx. 175g (including battery).
- Power Source: 9V (6F22) × 1.
