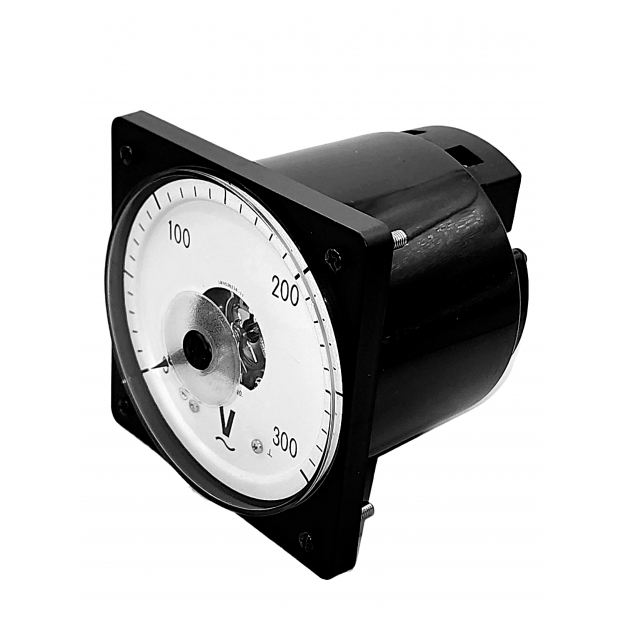

LS110 Wide Angle Panel Meter

1. Accuracy Class
• Class 1.5
2. Measuring Range
• AC Current: 1A to 5A
• AC Voltage: 1V to 600V
• DC Current: 50μA to 30A
• DC Voltage: 50mV to 600V
3. Construction Materials
• Base: Bakelite
• Cover: PC (Polycarbonate)
• Front Frame: Black ABS
• Inner Frame: Gray ABS
4. Pointer Design
• Made of aluminum alloy
• Customizable colors: black, red, white, etc.
5. Anti-Static Treatment
• All meters are treated for electrostatic protection
6. Damping & Overshoot
• Customizable damping and overshoot
• Typical overshoot ≤ 15% of full scale
7. Operating Temperature
• -20°C to +50°C
8. Mounting Position
• Standard: Vertical
• Optional: Horizontal or inclined (customized)
9. External Shunt Voltage Drop (for DC Ammeters)
• Available specs: 150mV, 100mV, 75mV, 60mV, 50mV

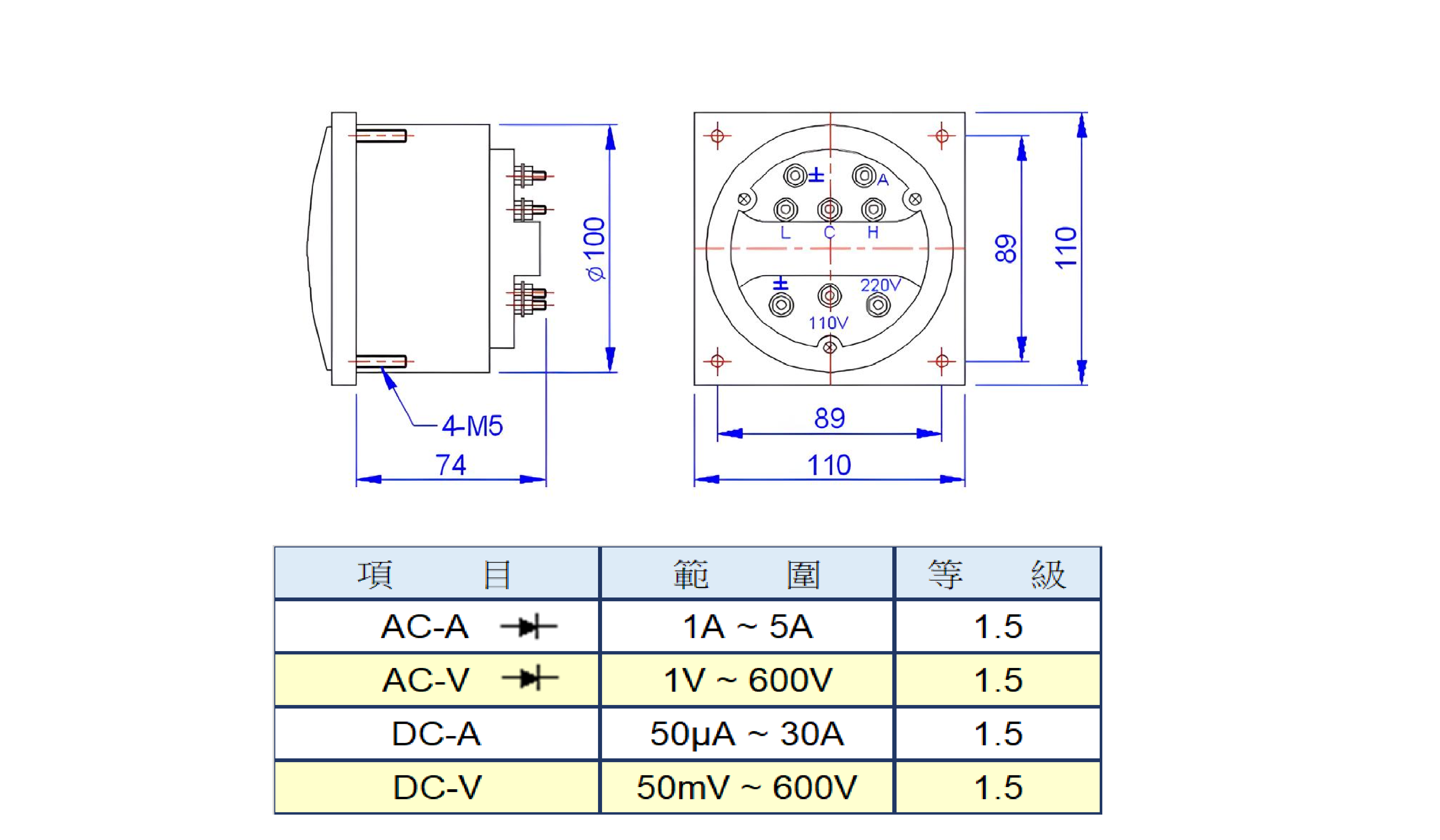

10. Dimensions
• Overall: 110 × 110 mm
• Panel Cutout: Φ103 mm
