| Circuit | LSI circuit provides high reliability and durability. |
| Display | 39.5 mm x29.8 mm large LCD display |
| Measurements | DCV, ACV, DCA, ACA, Resistance, Capacitance, Frequency, Diode, Continuity beeper. |
| A/D counts no. | 6000 counts. |
| Voltage ranges | DC V: 600 mV /6 V/60 V/600 V /1000 V AC V: 6 V/60 V/600 V /1000 V |
| Current ranges | DC/AC Current : 600A/1000A |
| Safety standard | IEC 1010 CAT III 1000 V |
| ACV input impedance | 10 M ohm impedance for voltage circuit. |
| Clamp frequency response | ACA specification be tested on sine wave 50/60 Hz |
| Over-load protection | / |
| Over-range | Indication of " OL " or " -OL ". |
| Data Hold | To freeze the display reading on the LCD display |
| Data Recording | / |
| Relative measure. | / |
| Peak to Peak | / |
| DCA zero adj. | DCA : Push bottom adjustment. Other ranges : Automatic adjustment. |
| Range selection | Under auto function. push range button to range selecting. |
| Data logger | / |
| Display sampling time | Approx. 0.5 to 1 second. |
| Data Output USB/RS232 | / |
| Operating Temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Operating Humidity | Max. 80% R.H. |
| Power Supply | DC 9 V battery 006P, MN1604 |
| Power Consumption | Approx. DC 9.1 mA. |
| Max. Conductor size | 32 mm (1.3 inch) Dia. |
| Dimensions | 241 x94 x 46 mm ( 9.5 x 3.7 x 1.8 inch ). |
| Polarity | Automatic Switching, " - " indicates negative polarity. |
| Current Sensor | Hall effect sensor. |
| Zero adjustment | / |
| Over-input | Indication of " OL " or " -OL ". |
| Sampling Time | Approx. 0.5 to 1 second. |
| Data Output | / |
| Battery | / |
| Weight | 380 g/0.83 LB ( w/o battery ). |
| Max. Jaw Open Size | Same Conductor size |
| Accessories Included | Red and Black Test Leads 1 Set Instruction Manual : 1 PC |
| Optional Accessories | Full line adapters : ACA/DCA current adapter, Pressure adapter, Light adapter, EMF adapter, Sound level adapter, High voltage probe. |
AC/DC Clamp Meter

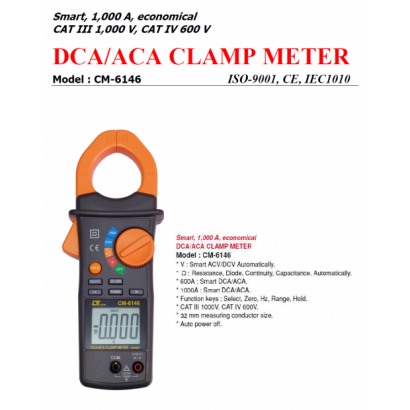

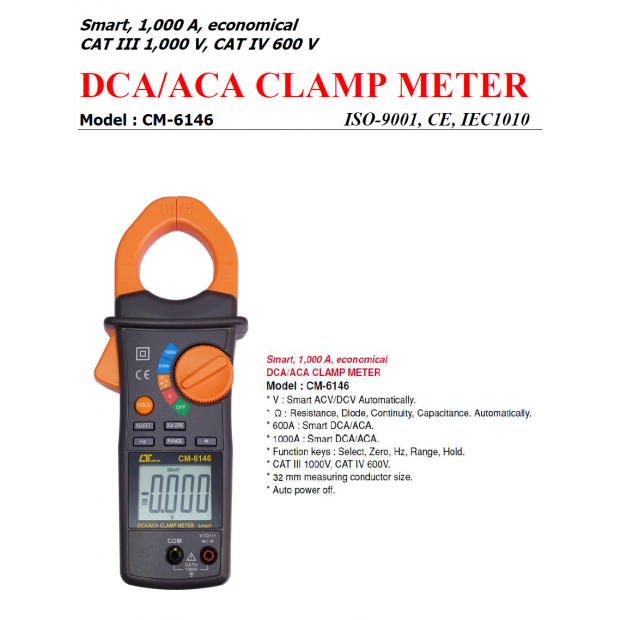

CM-6146 DCA/ACA Clamp Meter
CM-6146 DCA/ACA Clamp Meter
1. Wide Measurement Range: Measures up to 1000 A for both ACA (Alternating Current Amperes) and DCA (Direct Current Amperes), with two ranges for each (600 A, 1000 A).
2. Smart Functionality: Features intelligent functions that automatically select ACV, DCV, resistance, diode, continuity beeper, capacitance, ACA, and DCA measurements with auto range.
3. High Accuracy and Resolution: Provides high resolution with 6000 counts A/D and accurate readings for various measurements.
4. User-Friendly Design: Includes a bright LCD display, data hold function, and auto power off to save battery life.
5. Safety Compliance: Meets IEC 1010 CAT III 1000 V safety standards, ensuring reliable and safe operation.
2. Smart Functionality: Features intelligent functions that automatically select ACV, DCV, resistance, diode, continuity beeper, capacitance, ACA, and DCA measurements with auto range.
3. High Accuracy and Resolution: Provides high resolution with 6000 counts A/D and accurate readings for various measurements.
4. User-Friendly Design: Includes a bright LCD display, data hold function, and auto power off to save battery life.
5. Safety Compliance: Meets IEC 1010 CAT III 1000 V safety standards, ensuring reliable and safe operation.
