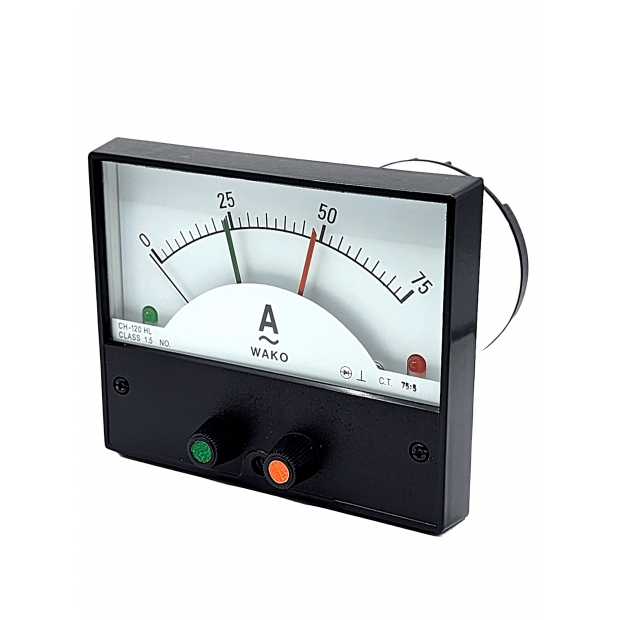

CH-120HL WAKO Amp Meter (Pointer-Type Panel Meter)

WAKO Amp Meter (Pointer-Type Panel Meter)

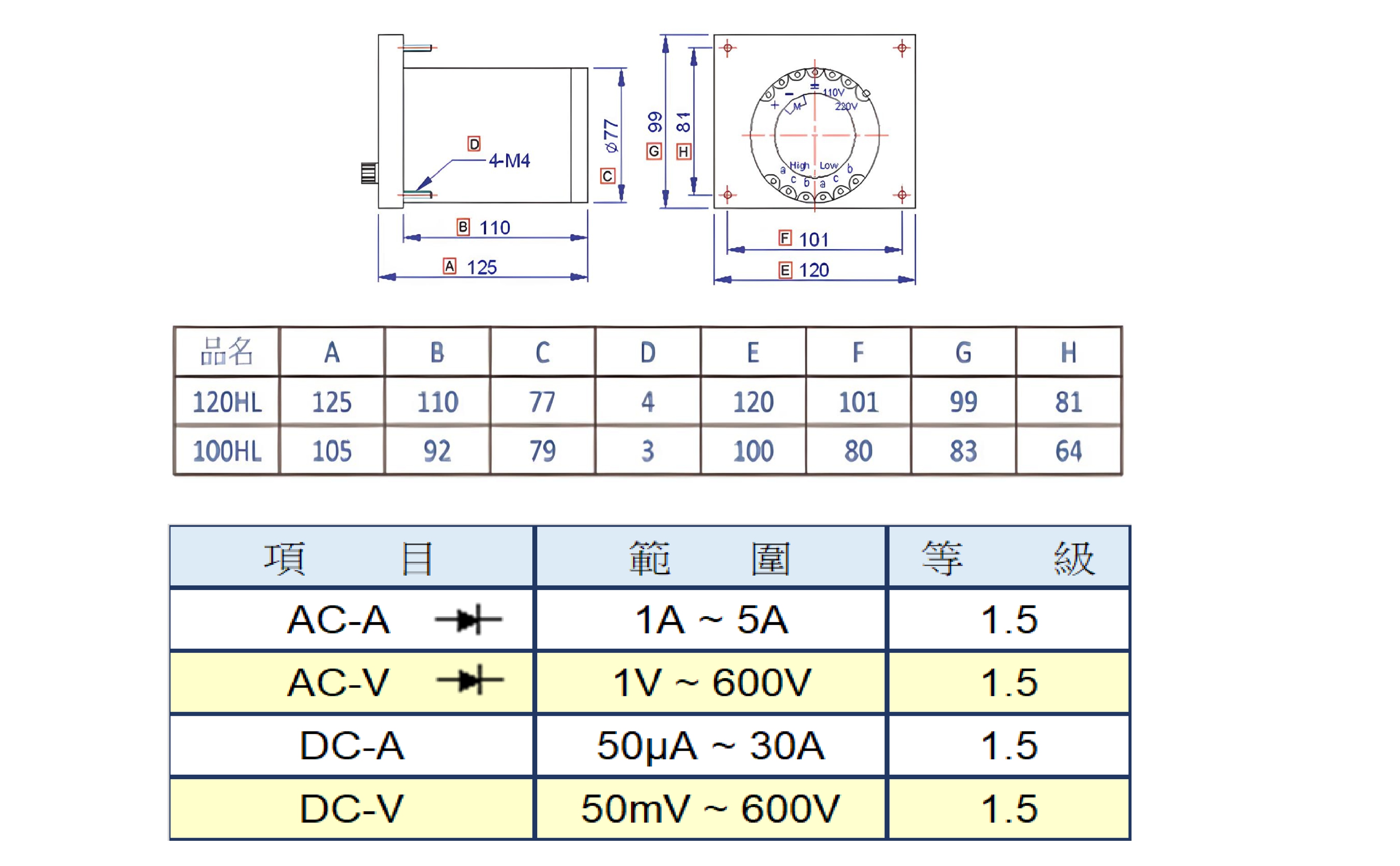

- Measurement Range
- AC Current (AC-A): 1A to 5A
- AC Voltage (AC-V): 1V to 600V
- DC Current (DC-A): 50μA to 30A
- DC Voltage (DC-V): 50mV to 600V
- Accuracy Class
- Class 1.5, ensuring precise readings.
- Display Type
- Analog pointer display, providing clear and intuitive readings.
- Dimensions
- Standard size design, suitable for embedded installation.
- Applications
- Industrial equipment monitoring
- Power system testing
- Energy consumption management
The WAKO Amp Meter supports multiple measurement functions, including AC-V, AC-A, DC-V, DC-A, HZ, and RPM.
Models include:
- CH-100H (Upper alarm)
- CH-100HL (Upper/Lower alarm)
- CH-120H (Upper alarm)
- CH-120HL (Upper/Lower alarm)
