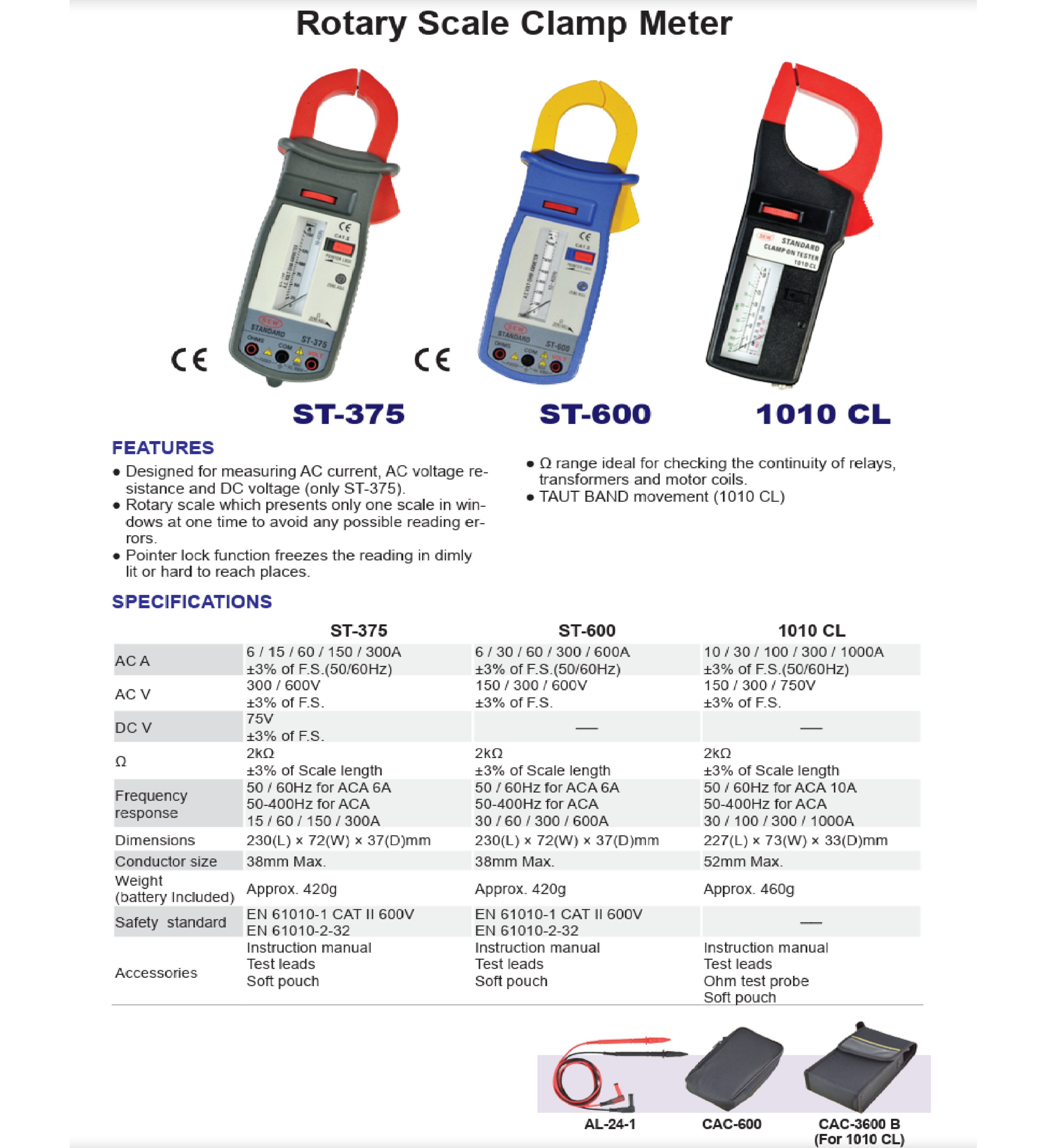

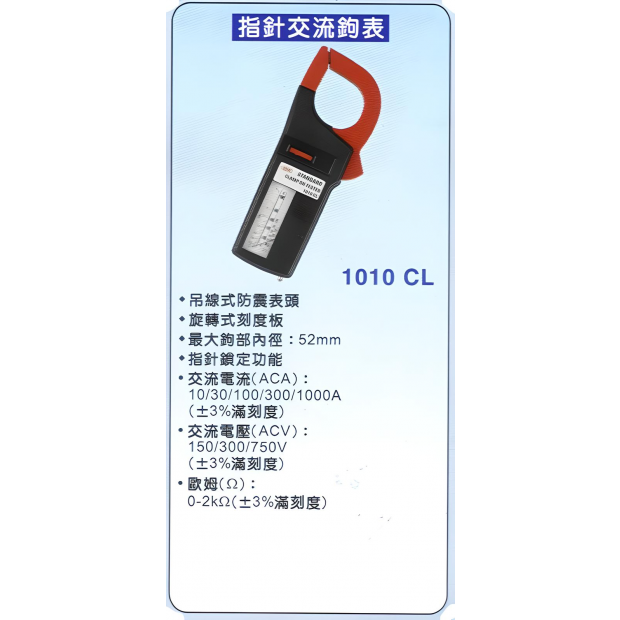

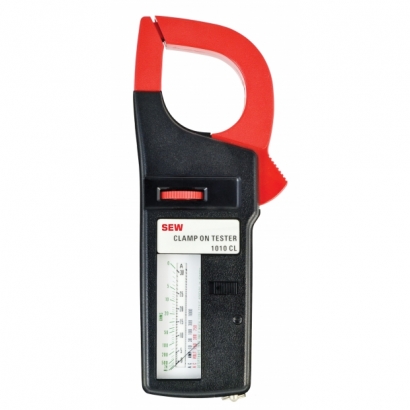

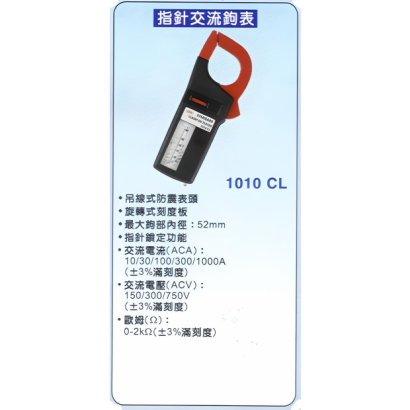

1010CL Analog AC Clamp Meter
1010CL Analog AC Clamp Meter
- AC Current Ranges: 10A / 30A / 100A / 300A / 1000A (±3% of full scale).
- AC Voltage Ranges: 150V / 300V / 750V (±3% of full scale).
- Resistance Range: 2kΩ (±3% of scale length).
- Frequency Response:
- 50/60Hz for ACA 10A.
- 50-400Hz for ACA 30A / 100A / 300A / 1000A.
- Conductor Size: 52mm max.
- Dimensions: 227mm × 73mm × 33mm.
- Weight: Approx. 460g (including battery).
- Safety Standards: EN 61010-1 CAT III 600V.
- AC Voltage Ranges: 150V / 300V / 750V (±3% of full scale).
- Resistance Range: 2kΩ (±3% of scale length).
- Frequency Response:
- 50/60Hz for ACA 10A.
- 50-400Hz for ACA 30A / 100A / 300A / 1000A.
- Conductor Size: 52mm max.
- Dimensions: 227mm × 73mm × 33mm.
- Weight: Approx. 460g (including battery).
- Safety Standards: EN 61010-1 CAT III 600V.
