AC/DC Digital Clamp Meter

  1. Domestically Distributed Products
  2. SEW
  3. AC/DC Digital Clamp Meter
one two four
  • Read More
    ST-600 交流鈎表.jpg

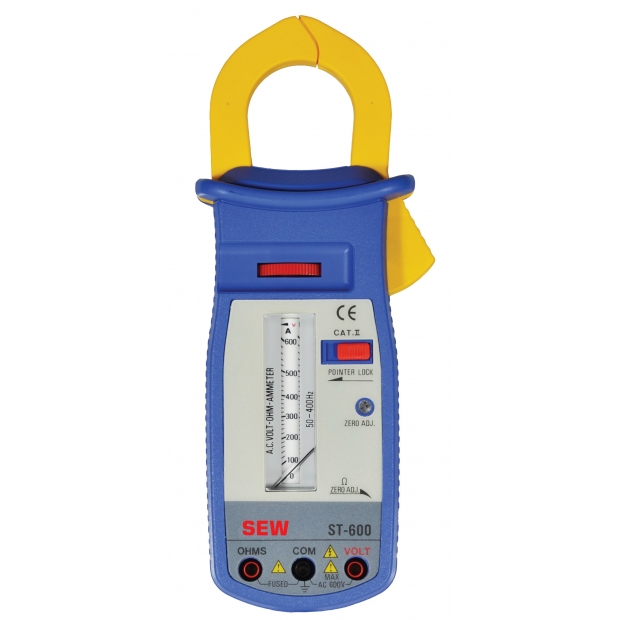

    ST-600 AC Clamp Meter

    - AC Current Ranges: 6A / 30A / 60A / 300A / 600A (±3% of full scale).
    - AC Voltage Ranges: 150V / 300V / 600V (±3% of full scale).
    - Resistance Range: 2kΩ (±3% of scale length).
    - Frequency Response:
    - 50/60Hz for ACA 6A.
    - 50-400Hz for ACA 30A / 60A / 300A / 600A.
    - Conductor Size: 38mm max.
    - Dimensions: 230mm × 72mm × 37mm.
    - Weight: Approx. 420g (including battery).
    - Safety Standards: EN 61010-1 CAT III 600V, EN 61010-2-32.
  • Read More
    ST-375 交直流鈎表.jpg

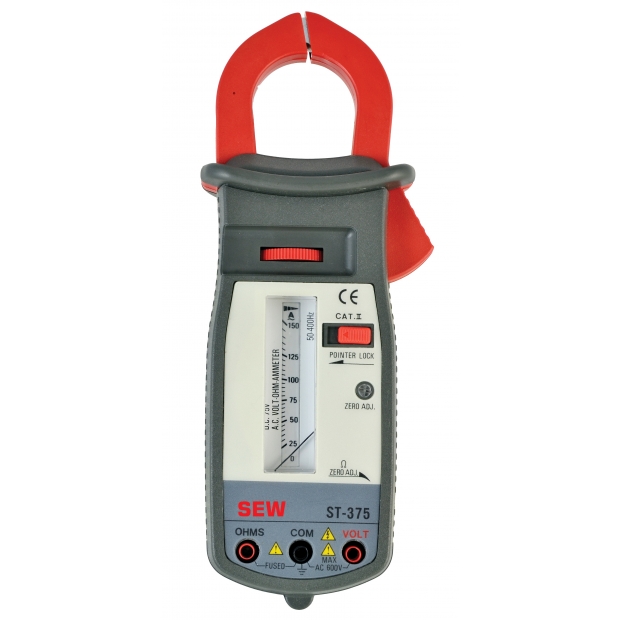

    ST-375 AC/DC Clamp Meter

    - AC Current Ranges: 6A / 15A / 60A / 150A / 300A (±3% of full scale).
    - AC Voltage Ranges: 300V / 600V (±3% of full scale).
    - DC Voltage Range: 75V (±3% of full scale).
    - Resistance Range: 2kΩ (±3% of scale length).
    - Frequency Response:
    - 50/60Hz for ACA 6A.
    - 50-400Hz for ACA 15A / 60A / 150A / 300A.
    - Conductor Size: 38mm max.
    - Dimensions: 230mm × 72mm × 37mm.
    - Weight: Approx. 420g (including battery).
    - Safety Standards: EN 61010-1 CAT II 600V, EN 61010-2-32.
