AC/DC Digital Clamp Meter

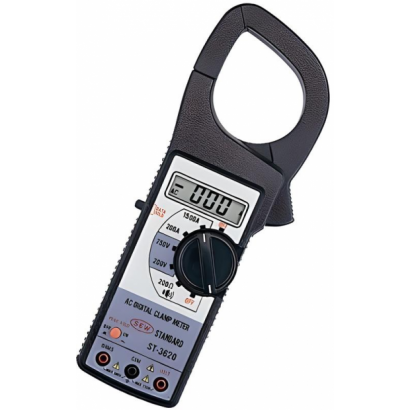

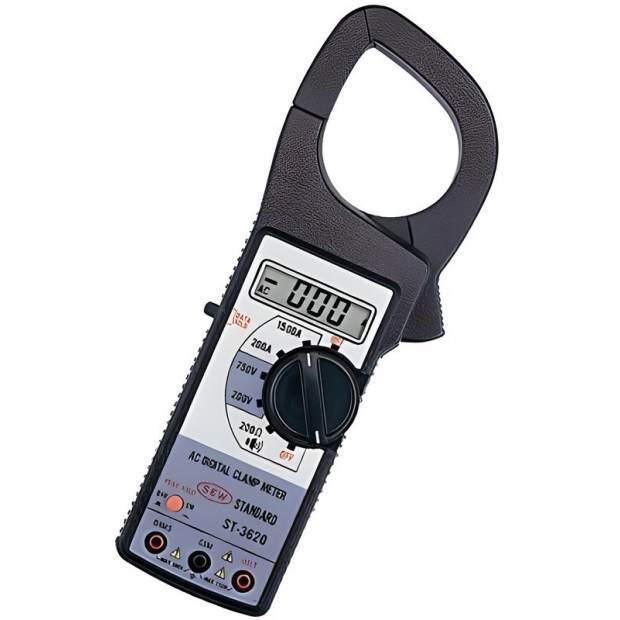

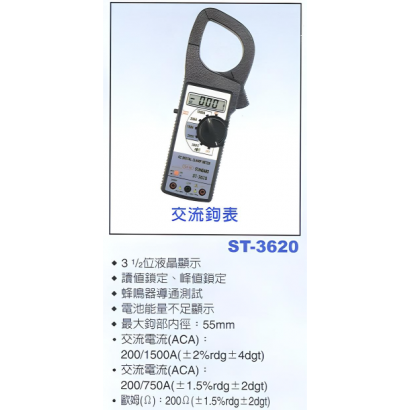

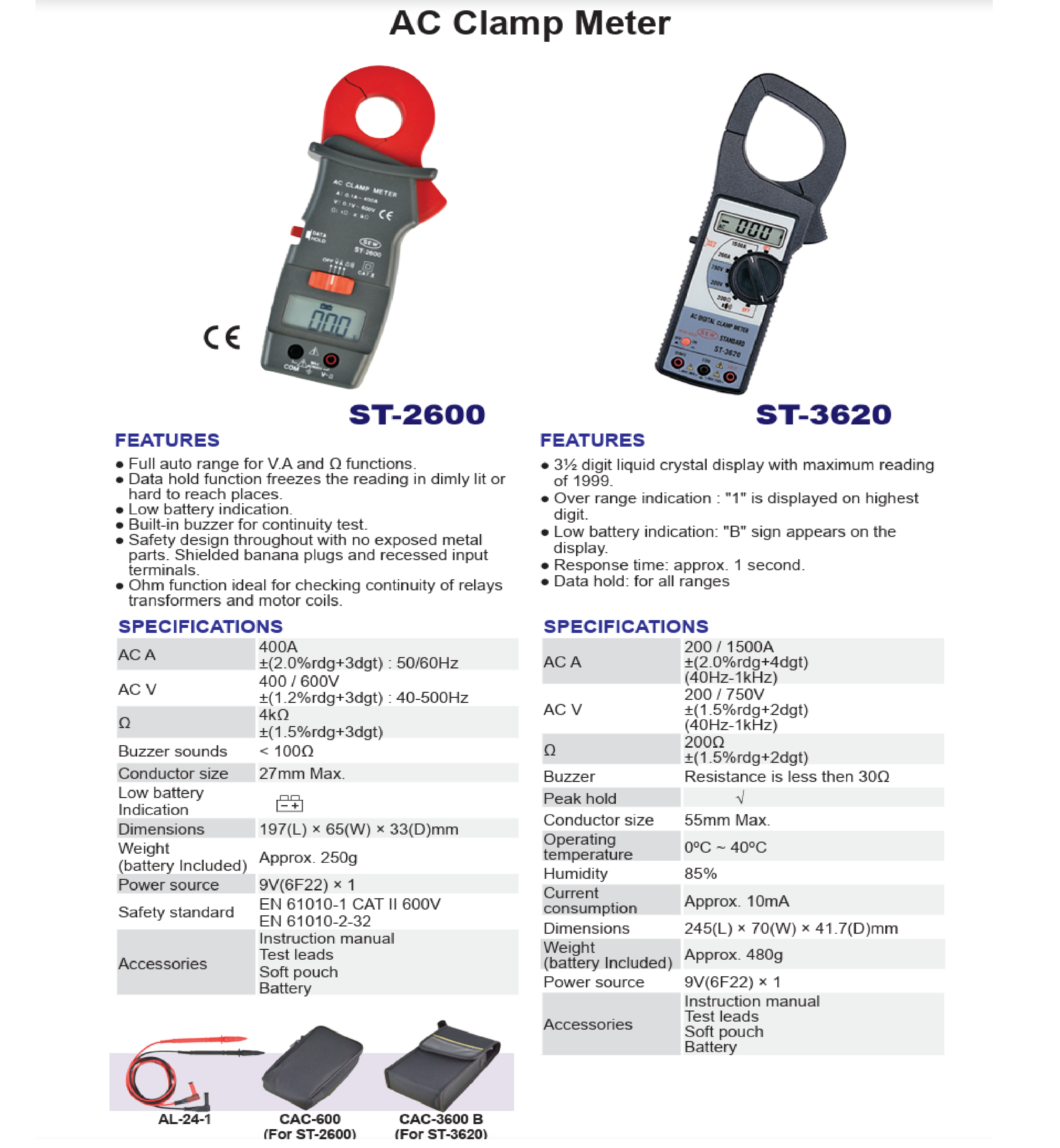

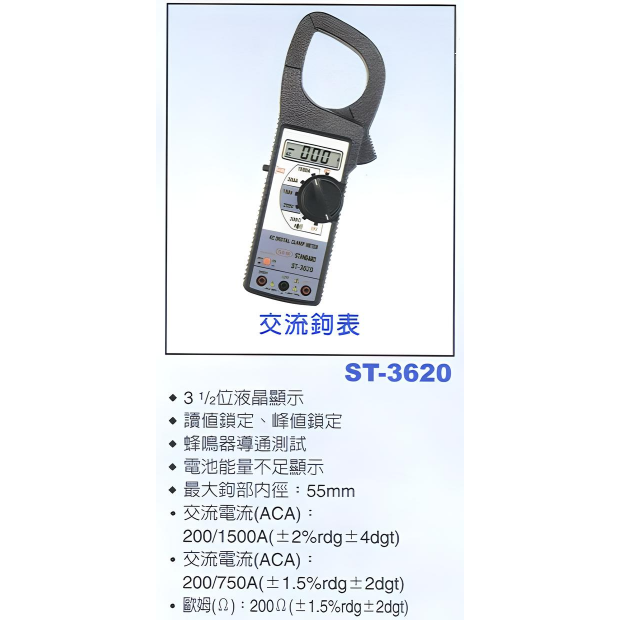

ST-3620 AC Clamp Meter
ST-3620 AC Clamp Meter
- AC Current Ranges: 200A / 1500A (40Hz-1kHz), accuracy ±(2.0%rdg+4dgt).
- AC Voltage Ranges: 200V / 750V (40Hz-1kHz), accuracy ±(1.5%rdg+2dgt).
- Resistance Range: 200Ω, accuracy ±(1.5%rdg+2dgt).
- Continuity Test: Buzzer sounds when resistance is less than 30Ω.
- Peak Hold Function: Captures maximum values.
- Conductor Size: 55mm max.
- Operating Temperature: 0ºC ~ 40ºC.
- Power Source: 9V (6F22) × 1.
- Dimensions: 245mm × 70mm × 41.7mm.
- Weight: Approx. 480g (including battery).
- Safety Standards: EN 61010-1 CAT III 600V.
- AC Voltage Ranges: 200V / 750V (40Hz-1kHz), accuracy ±(1.5%rdg+2dgt).
- Resistance Range: 200Ω, accuracy ±(1.5%rdg+2dgt).
- Continuity Test: Buzzer sounds when resistance is less than 30Ω.
- Peak Hold Function: Captures maximum values.
- Conductor Size: 55mm max.
- Operating Temperature: 0ºC ~ 40ºC.
- Power Source: 9V (6F22) × 1.
- Dimensions: 245mm × 70mm × 41.7mm.
- Weight: Approx. 480g (including battery).
- Safety Standards: EN 61010-1 CAT III 600V.
DETAIL
