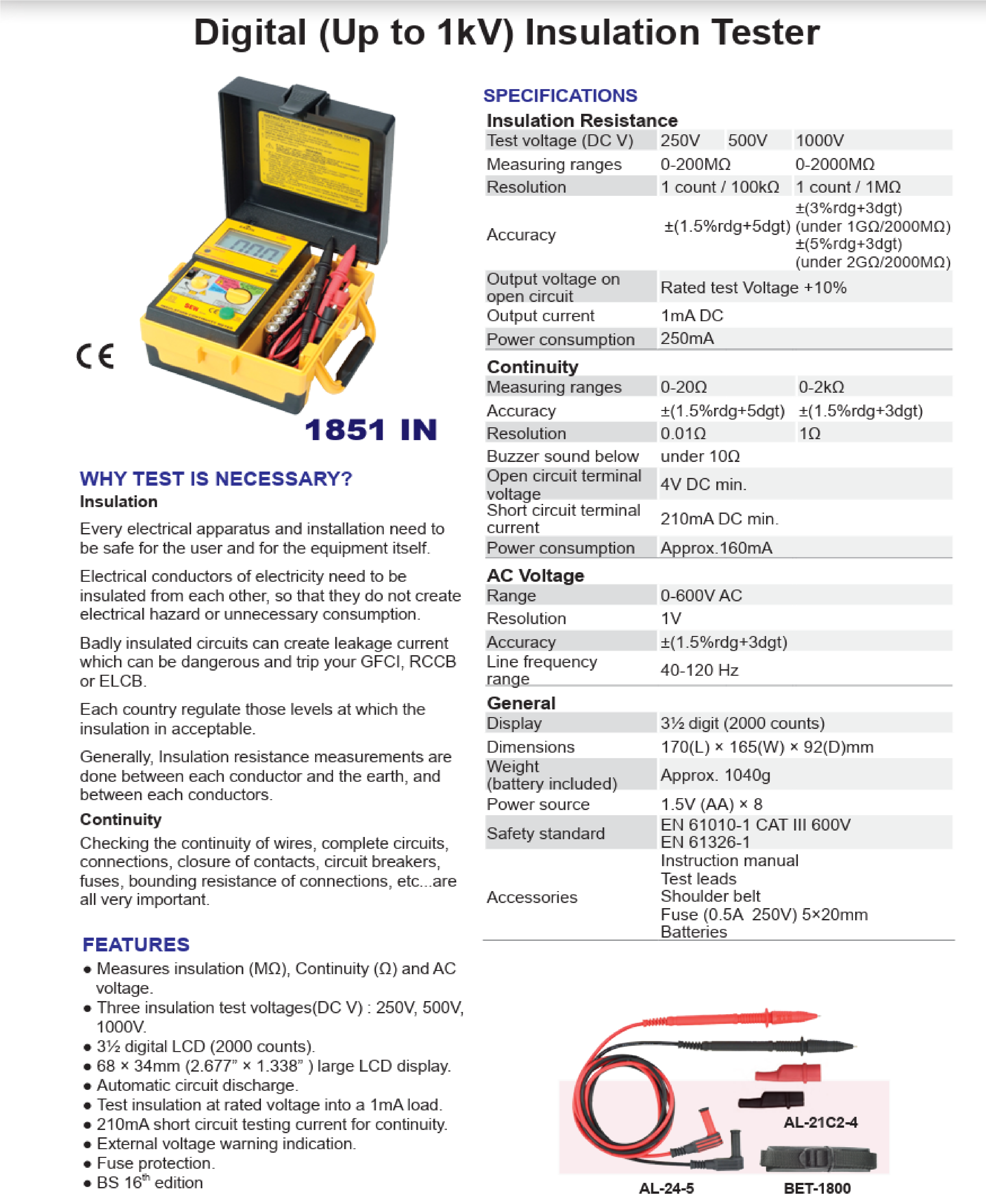

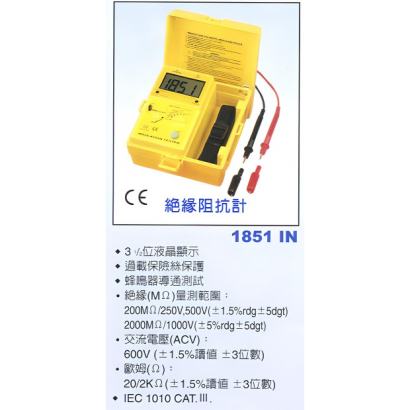

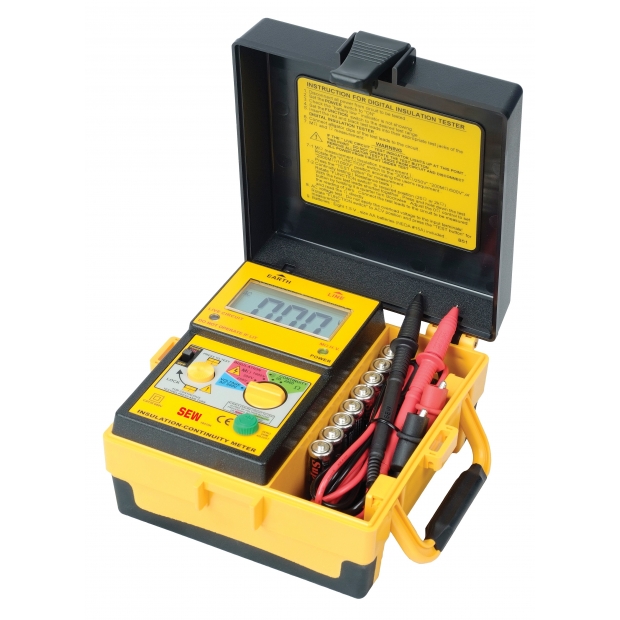

1851IN Insulation Impedance Meter

• Measures insulation (MΩ), Continuity (Ω) and AC voltage.
• Three insulation test voltages(DC V) : 250V, 500V, 1000V.
• 3½ digital LCD (2000 counts).
• 68 × 34mm (2.677” × 1.338” ) large LCD display.
• Automatic circuit discharge.
• Test insulation at rated voltage into a 1mA load.
• 210mA short circuit testing current for continuity.
• External voltage warning indication.
• Fuse protection.
• BS 16th edition.
