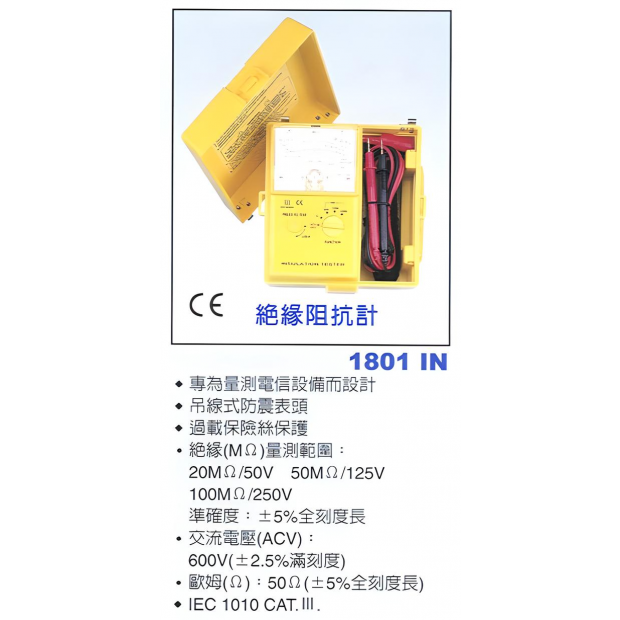

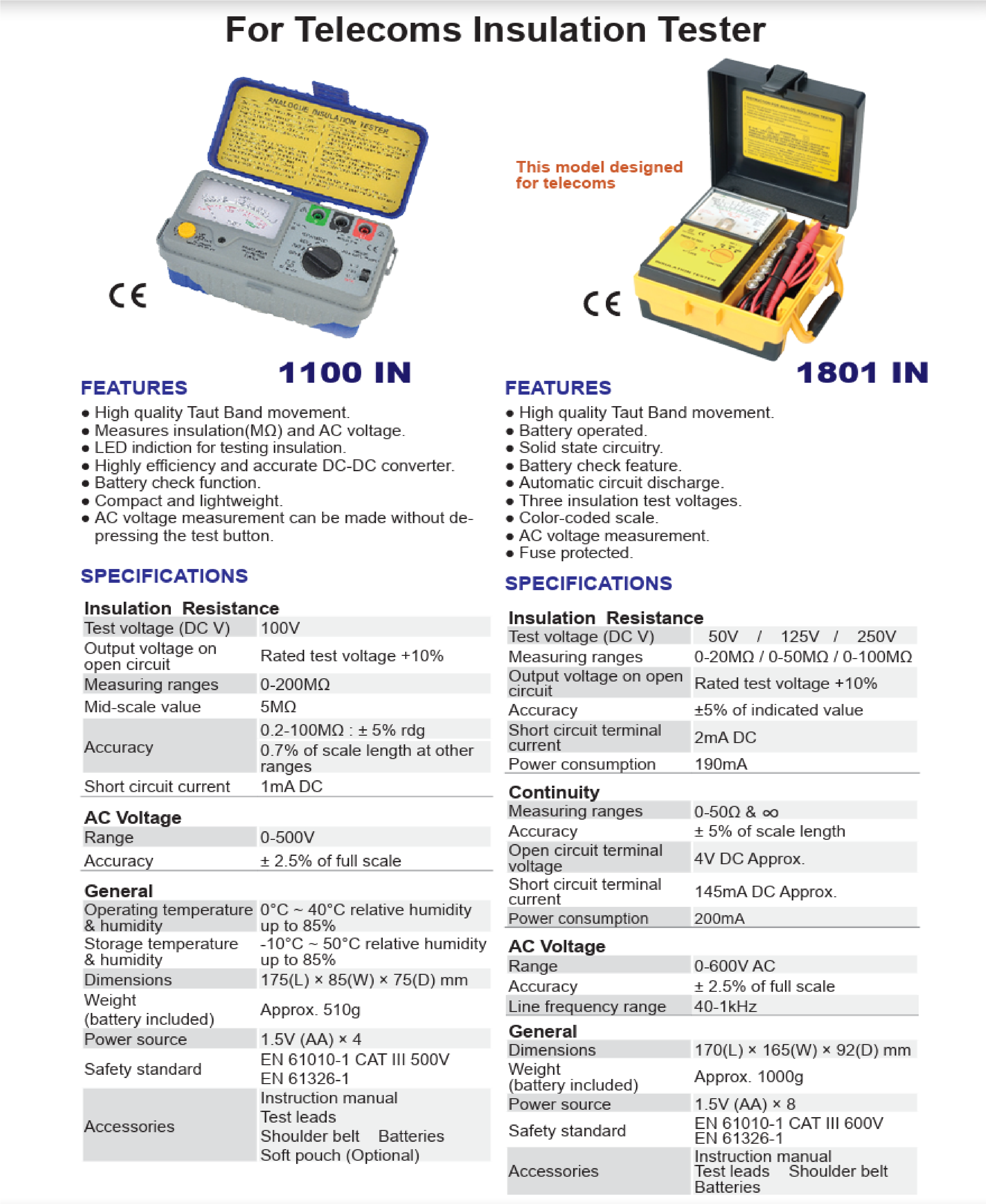

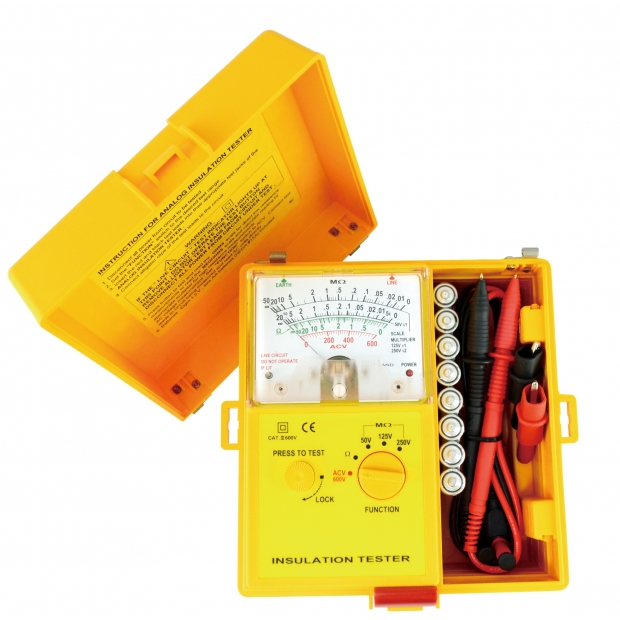

1801IN Insulation Impedance Meter

- Insulation Resistance Measurement:
- Test voltages: 50V, 125V, 250V
- Measuring ranges: 0-20MΩ / 0-50MΩ / 0-100MΩ
- Accuracy: ±5% of indicated value
- Continuity Testing:
- Measuring range: 0-50Ω & ∞
- Short circuit current: 145mA DC
- AC Voltage Measurement:
- Range: 0-600V AC
- Accuracy: ±2.5% of full scale
- Safety & Design:
- Automatic circuit discharge for safety
- Color-coded scale for easy reading
- Fuse protection
- Battery-operated for portability
Applications
- Telecom system insulation testing
- Preventive maintenance in electrical systems
- Safety inspections in industrial environments
