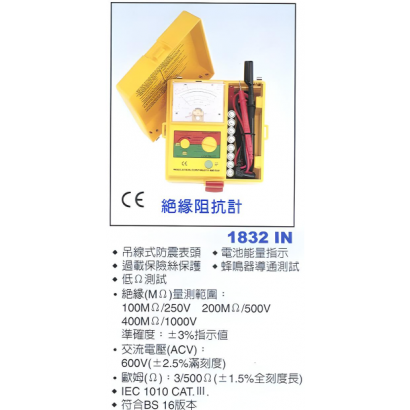

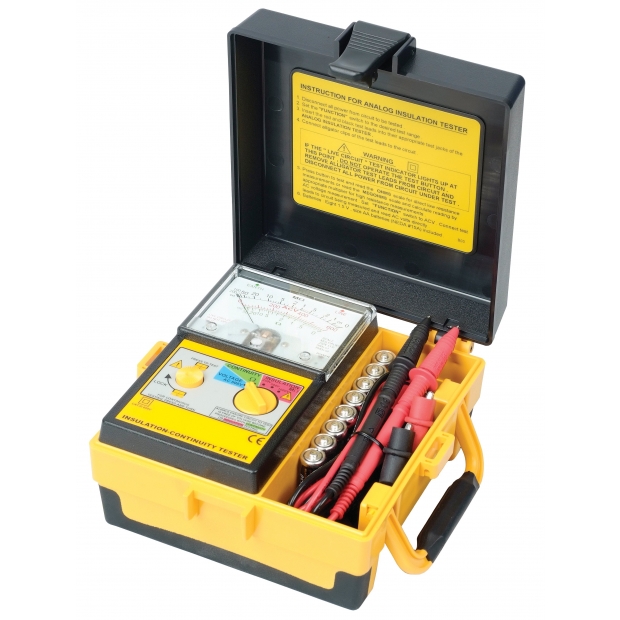

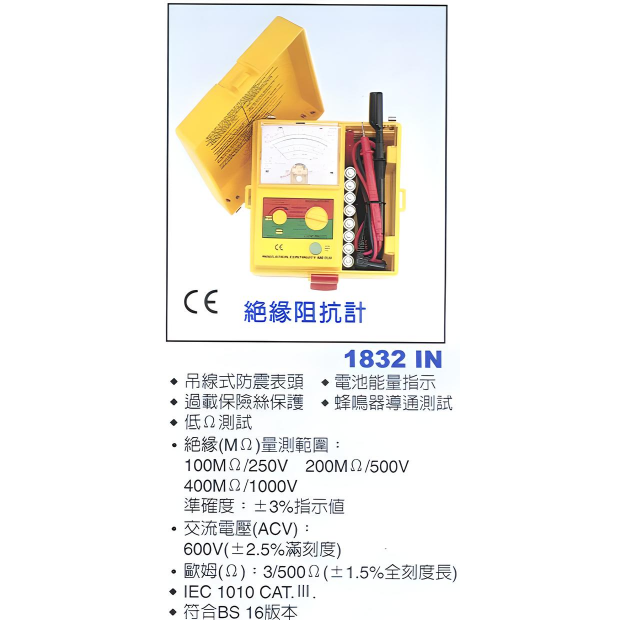

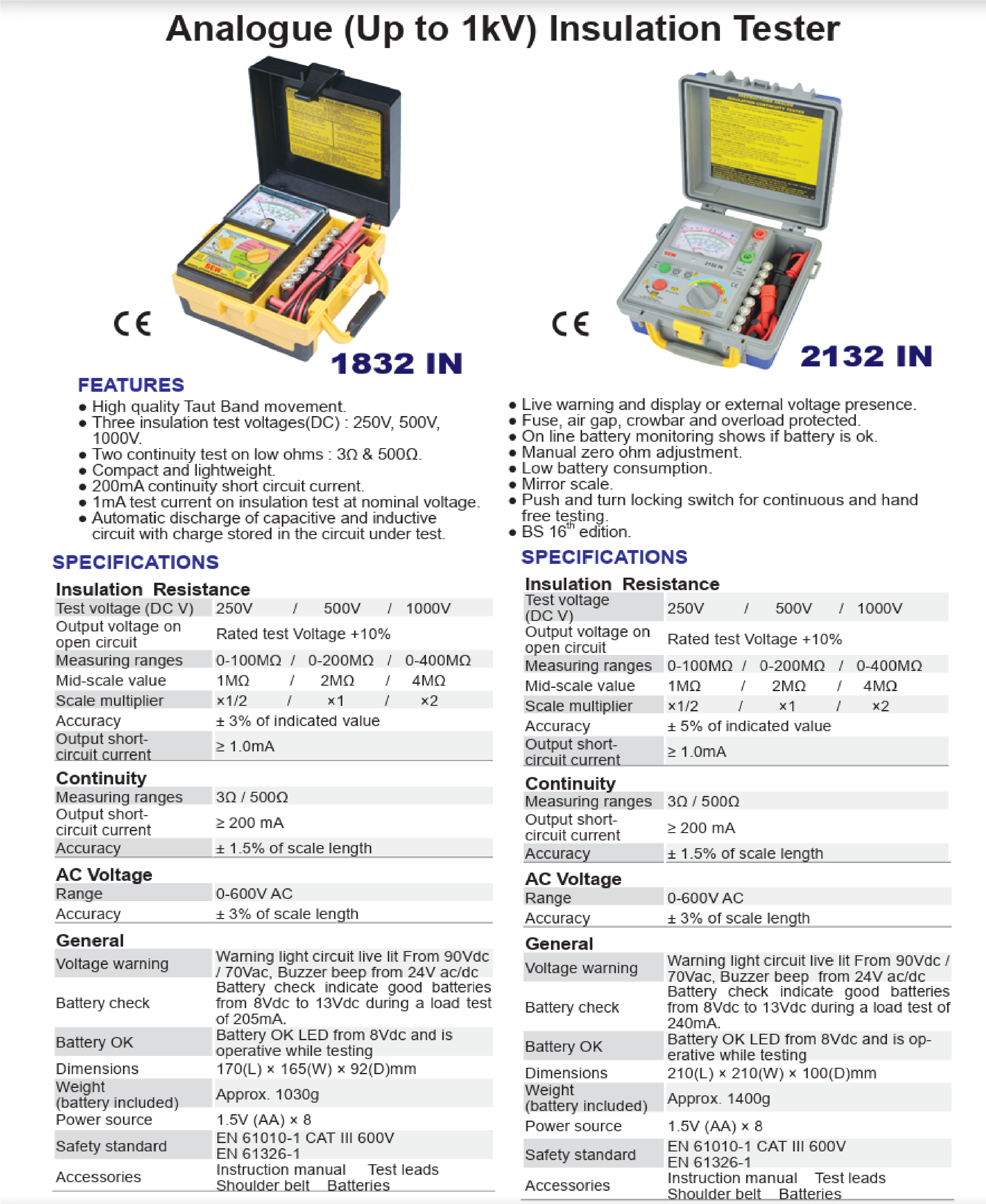

1832IN Insulation Impedance Meter

• High quality Taut Band movement.
• Three insulation test voltages(DC) : 250V, 500V, 1000V.
• Two continuity test on low ohms : 3Ω & 500Ω.
• Compact and lightweight.
• 200mA continuity short circuit current.
• 1mA test current on insulation test at nominal voltage.
• Automatic discharge of capacitive and inductive circuit with charge stored in the circuit under test.
• Live warning and display or external voltage presence.
• Fuse, air gap, crowbar and overload protected.
• On line battery monitoring shows if battery is ok.
• Manual zero ohm adjustment.
• Low battery consumption.
• Mirror scale.
• Push and turn locking switch for continuous and hand free testing.
• BS 16th edition.
