SEW

- Non-contact voltage detection for enhanced safety.
- Waterproof design (IP68-rated) for indoor and outdoor use.
- Self-test function to verify proper operation.
- Low power consumption for extended battery life.
- Compact and easy to wear.
Specifications:
- Voltage Detection Distance: 80 cm for 11.4kV (phase to ground).
- Applicable Frequency: 50 / 60 Hz.
- Audible Alarm Volume: ≥70dB at 1 meter.
- Operating Temperature & Humidity: 0°C - 40°C / 80% RH.
- Dimensions: 59mm × 56mm × 18mm.
- Weight: Approx. 35g (battery included).
- Battery Type: CR2032.
- Battery Life: 50 hours of continuous use.

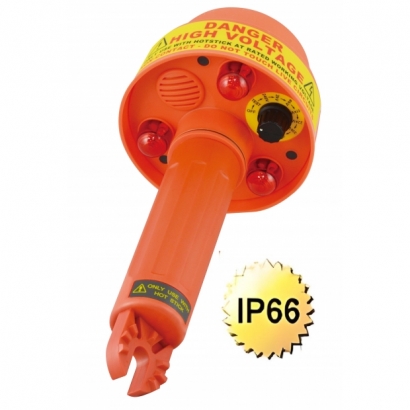

- Eight voltage settings: 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV.
- 360° LED indication with three bright LED indicators for easy viewing.
- Sound indication when voltage is detected.
- Flashlight function for use in dim environments.
- Self-test function to verify proper operation.
- Non-contact detection for enhanced safety.
- Compatible with most hot sticks for extended reach.
- Lightweight, robust, and compact design.
- Easy battery access with no special parts required.
- Protection class: IP66.
- Meets safety standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8.
Specifications:
- Operating Temperature: -10°C ~ 50°C.
- Storage Temperature: -20°C ~ 60°C.
- Humidity: 85% R.H. @ 40°C.
- Case Dimensions: 265mm × 117mm.
- Weight: Approx. 600g (including batteries).
- Power Source: 1.5V “C” × 3 Alkaline Batteries.

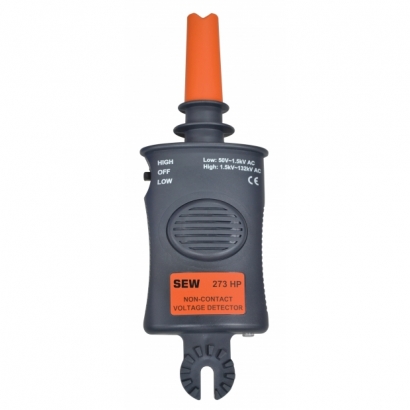

- Two voltage ranges:
- Low range: 50V ~ 1.5kV AC.
- High range: 1.5kV ~ 132kV AC.
- Non-contact detection for enhanced safety.
- Bright LED visual indication and audible alarm.
- Mechanical slide switch for easy function selection.
- Lightweight, robust, and compact design.
- Compatible with hot sticks for extended reach.
- Meets safety standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3.
Specifications:
- Operating Temperature: 0°C ~ 40°C.
- Dimensions: 245mm × 80mm × 37mm.
- Weight: Approx. 175g (including battery).
- Power Source: 9V (6F22) × 1.

- DC Voltage Ranges: 0.25V / 1V / 2.5V / 10V / 50V / 250V / 1000V (±2% of full scale).
- AC Voltage Ranges: 2.5V / 10V / 50V / 250V / 1000V (±3% of full scale).
- DC Current Ranges: 25µA / 1mA / 25mA / 500mA / 10A (±2% of full scale).
- AC Current Range: 10A (±3% of full scale).
- Resistance Ranges:
- R × 1: 0.2Ω to 20kΩ.
- R × 10: 2Ω to 200kΩ.
- R × 100: 20Ω to 2MΩ.
- R × 1000: 200Ω to 20MΩ.
- Decibel Meter: -20 to 62dB (0dB = 1mW / 600Ω).
- Power Source: 1.5V (AA) × 2.
- Safety Standards: EN 61010-1 CAT III 600V, EN 61326-1.
- Dimensions: 160mm × 100mm × 45mm.
- Weight: Approx. 380g (including battery).
- Accessories: Test leads, instruction manual, batteries.

- True RMS measurement for accurate readings.
- Automatic polarity indication and zero adjustment.
- Low battery indication and over-range warning.
- Shock and vibration-resistant TAUT BAND movement.
- Selectable pointer mode: Left-hand zero (normal mode) or center zero (galvo mode).
- Peak hold function for capturing maximum values.
- Continuity check with built-in buzzer.
Measurement Ranges:
- DC Voltage: 200mV / 2V / 20V / 200V / 600V.
- AC Voltage: 200mV / 2V / 20V / 200V / 600V.
- DC/AC Current: 200μA / 2mA / 20mA / 200mA / 10A.
- Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- Capacitance: 2000pF / 20nF / 200nF / 2μF / 20μF.
- Frequency: 2000Hz.
- Instant Continuity: Buzzer sounds when resistance is less than 40Ω.

- Automatic polarity indication for ease of use.
- Over-range warning to prevent measurement errors.
- Low battery indication for timely battery replacement.
- Measurement rate: 3 readings per second.
- Compact and lightweight design for portability.
Measurement Ranges:
- DC Voltage: 200mV / 2V / 20V / 200V / 1000V.
- AC Voltage: 200mV / 2V / 20V / 200V / 1000V.
- DC/AC Current: 200μA / 2mA / 20mA / 200mA / 10A.
- Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- Capacitance: 2000pF / 20nF / 200nF / 2μF / 20μF.

- Automatic polarity indication for ease of use.
- Over-range warning to prevent measurement errors.
- Low battery indication for timely battery replacement.
- Measurement rate: 3 readings per second.
- Compact and lightweight design for portability.
Measurement Ranges:
- DC Voltage: 200mV / 2V / 20V / 200V / 1000V.
- AC Voltage: 200V / 750V.
- DC Current: 200μA / 2mA / 20mA / 200mA / 10A.
- Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- Frequency: 2000Hz.
- Diode Test: 1.0mA test current, 3.2V max test voltage.

- True RMS measurement for accurate readings.
- Automatic polarity indication and zero adjustment.
- Low battery indication and over-range warning.
- Shock and vibration-resistant TAUT BAND movement.
- Selectable pointer mode: Left-hand zero (normal mode) or center zero (galvo mode).
- Peak hold function for capturing maximum values.
- Continuity check with built-in buzzer.
Measurement Ranges:
- DC Voltage: 200mV / 2V / 20V / 200V / 600V.
- AC Voltage: 200mV / 2V / 20V / 200V / 600V.
- DC/AC Current: 200μA / 2mA / 20mA / 200mA / 10A.
- Resistance: 200Ω / 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- Capacitance: 2000pF / 20nF / 200nF / 2μF / 20μF.
- Frequency: 2000Hz.
- Instant Continuity: Buzzer sounds when resistance is less than 40Ω.

- Auto-ranging design for ease of use.
- Angled display for better readability.
- Continuity check and diode measurement.
- Data hold function to freeze readings.
- Low battery indication and over-range warning.
- Fuse protection for safety.
- Special hook design for hands-free operation.
Measurement Ranges:
- DC Voltage: 400mV / 4V / 40V / 400V / 1000V.
- AC Voltage: 400mV / 4V / 40V / 400V / 750V.
- DC Current: 400μA / 4000μA / 40mA / 400mA / 10A.
- AC Current: 400μA / 4000μA / 40mA / 400mA / 10A.
- Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ.
- Frequency: 4kHz / 40kHz / 400kHz / 4MHz / 40MHz.
- Continuity Test: Buzzer sounds when resistance is below 25Ω.

- True RMS measurement for accurate readings.
- Auto-ranging for ease of use.
- Bar-graph indication for quick visual analysis.
- Data hold function to freeze readings.
- Low battery indication and auto power-off.
- Rugged and compact design for durability.
- IP65 protection rating for enhanced safety.
Measurement Ranges:
- DC Voltage: Up to 3000V.
- AC Voltage: Up to 2000V.
- DC/AC Current: Microampere and milliampere measurement.
- Safety Standards: IEC / EN 61010-1 CAT III 1000V, CAT IV 600V.

- Auto-ranging for ease of use.
- Phase rotation indication: Displays clockwise and counterclockwise rotation.
- Voltage, resistance, current, continuity, and diode measurement.
- Capacitance measurement: Up to 40,000μF (40.00mF).
- Resistance measurement: Up to 200MΩ.
- Frequency measurement: Up to 40MHz.
- Data hold function to freeze readings.
- Over-range indication and low battery detection.
- Auto power-off after 15 minutes.
- Convenient stand for viewing.
- Safety standard: EN 61010-1 CAT III 600V.
Measurement Ranges:
- DC Voltage: 400mV / 4V / 40V / 400V / 1000V.
- AC Voltage: 400mV / 4V / 40V / 400V / 750V.
- DC/AC Current: 400μA / 4000μA / 40mA / 400mA.
- Resistance: 40Ω / 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ / 200MΩ.
- Capacitance: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF / 40mF.
- Frequency: 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz.
- Phase Rotation: 8080Hz.

- Auto-ranging for ease of use.
- Voltage, resistance, current, continuity, and diode measurement.
- Capacitance measurement: Up to 4000μF.
- Resistance measurement: Up to 40MΩ.
- Frequency measurement: Up to 100kHz.
- Data hold function to freeze readings.
- Over-range indication and low battery detection.
- Auto power-off after 15 minutes.
- Compact and lightweight design for portability.
- Safety standard: EN 61010-1 CAT III 600V.
Measurement Ranges:
- DC Voltage: 400mV / 4V / 40V / 400V / 1000V.
- AC Voltage: 400mV / 4V / 40V / 400V / 750V.
- DC/AC Current: 400μA / 4000μA / 40mA / 400mA.
- Resistance: 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ.
- Capacitance: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF.
- Frequency: 4kHz / 40kHz / 100kHz.
- Continuity Test: Buzzer sounds when resistance is below 25Ω.
