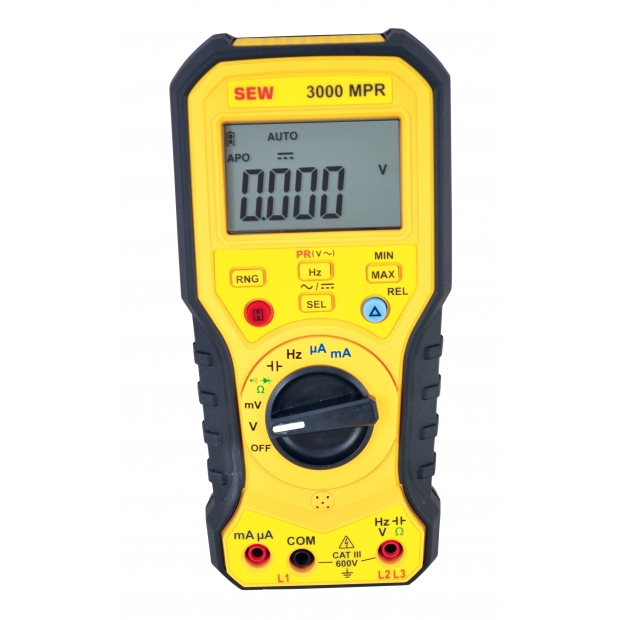

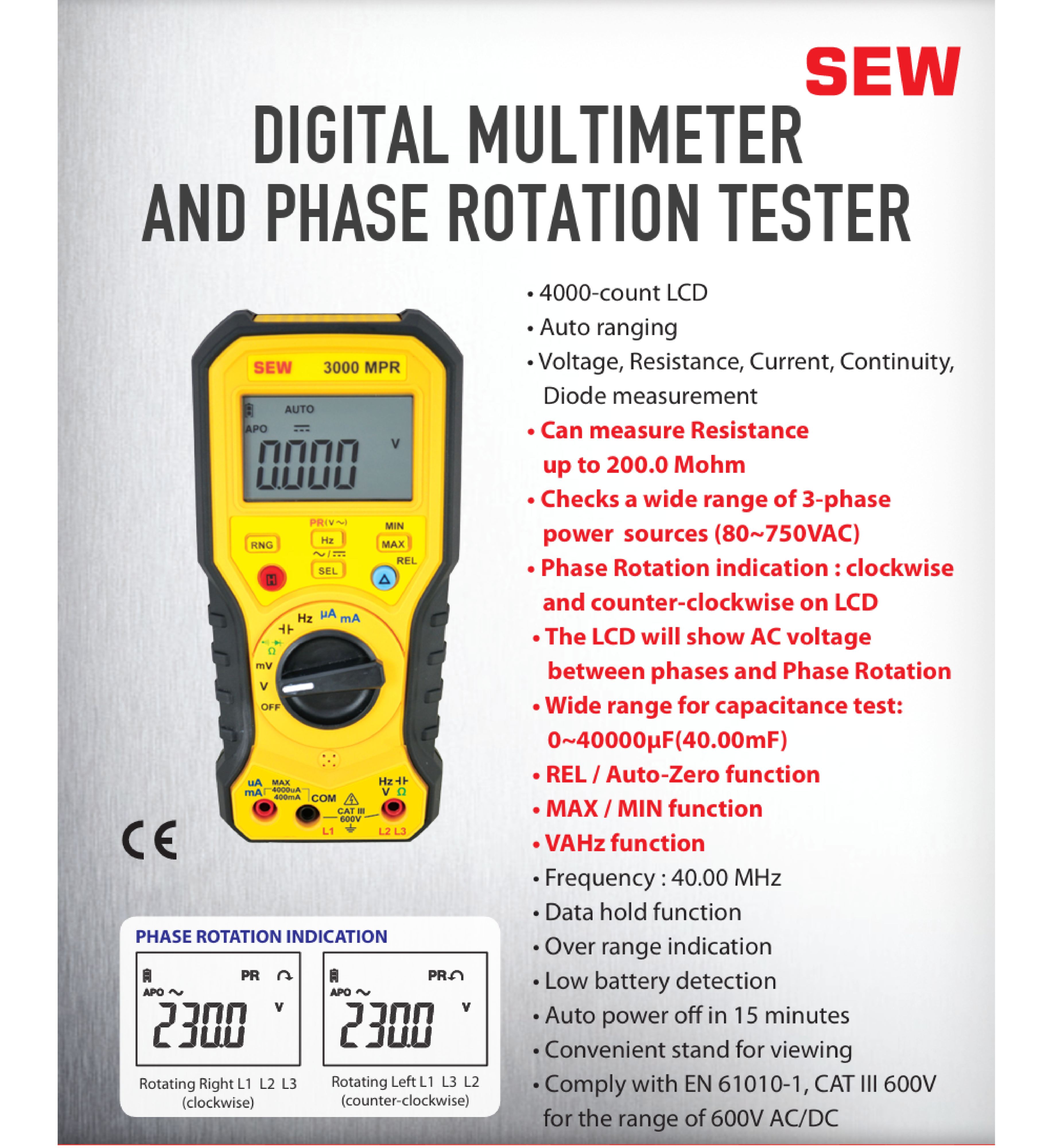

3000MPR Digital Multimeter & Phase Rotation Tester

- Auto-ranging for ease of use.
- Phase rotation indication: Displays clockwise and counterclockwise rotation.
- Voltage, resistance, current, continuity, and diode measurement.
- Capacitance measurement: Up to 40,000μF (40.00mF).
- Resistance measurement: Up to 200MΩ.
- Frequency measurement: Up to 40MHz.
- Data hold function to freeze readings.
- Over-range indication and low battery detection.
- Auto power-off after 15 minutes.
- Convenient stand for viewing.
- Safety standard: EN 61010-1 CAT III 600V.

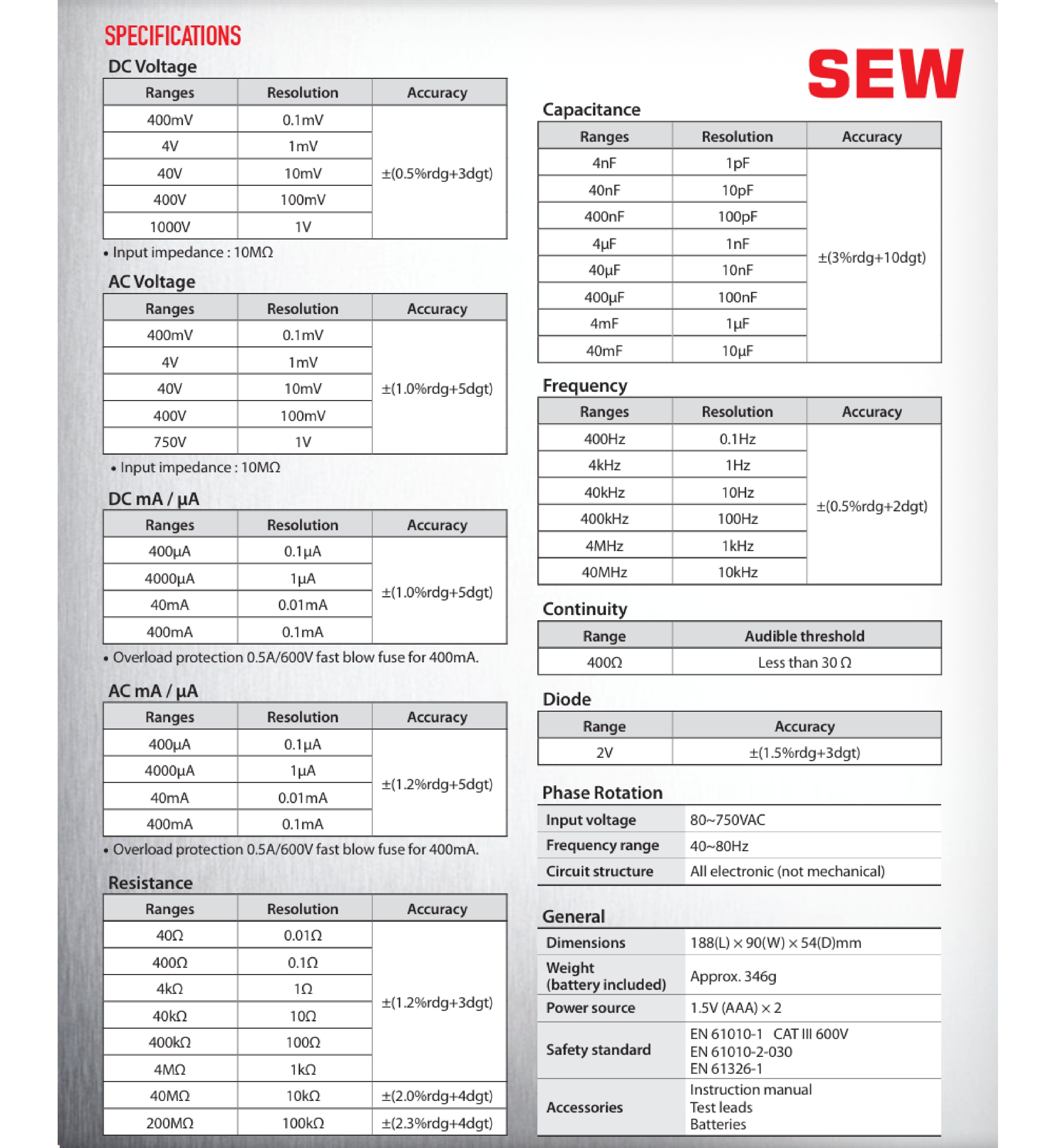

Measurement Ranges:
- DC Voltage: 400mV / 4V / 40V / 400V / 1000V.
- AC Voltage: 400mV / 4V / 40V / 400V / 750V.
- DC/AC Current: 400μA / 4000μA / 40mA / 400mA.
- Resistance: 40Ω / 400Ω / 4kΩ / 40kΩ / 400kΩ / 4MΩ / 40MΩ / 200MΩ.
- Capacitance: 4nF / 40nF / 400nF / 4μF / 40μF / 400μF / 4mF / 40mF.
- Frequency: 400Hz / 4kHz / 40kHz / 400kHz / 4MHz / 40MHz.
- Phase Rotation: 8080Hz.
