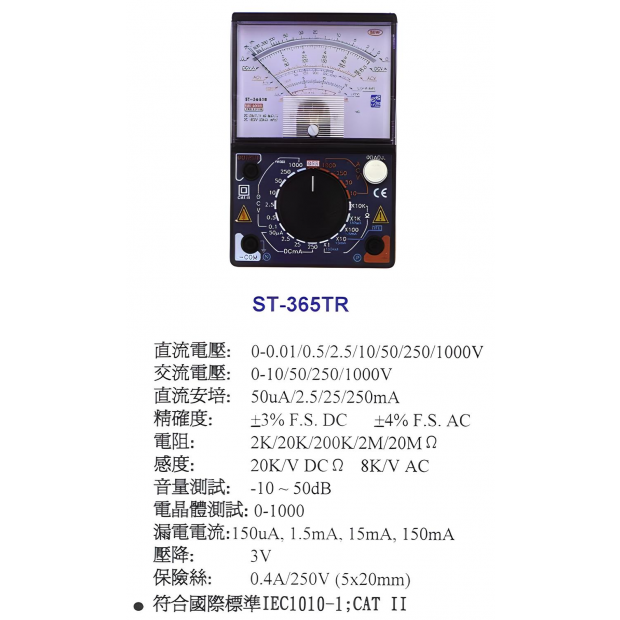

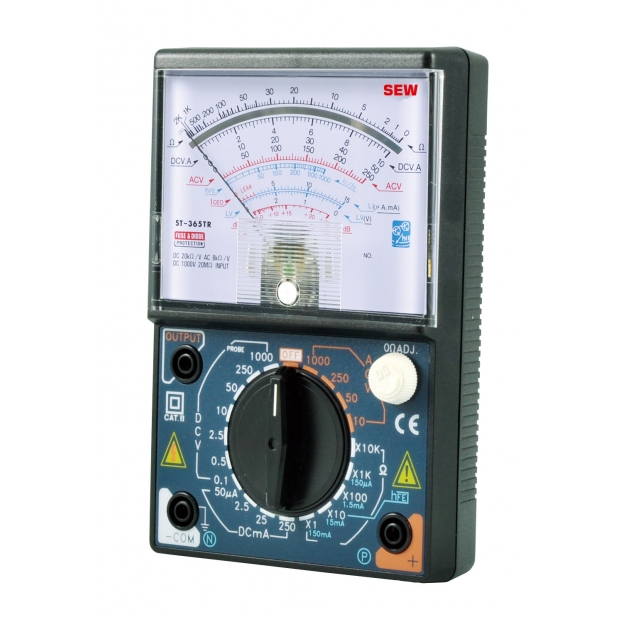

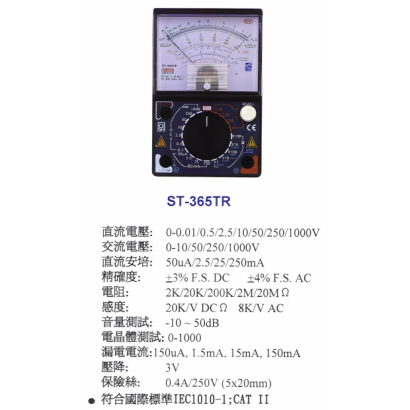

ST-365TR Analog Multimeter

- Easy-to-read 3-color scale for mistake-proof reading.
- Mirror scale to reduce parallax errors.
- Safety fused on all ranges for protection.
- Diode-protected meter to prevent damage due to overload.
- hFE and dB measurement for transistor testing.
- Built-in stand for convenient reading and measuring.
- Safety "OFF" position to enhance protection.
Measurement Ranges:
- DC Voltage: 0.1V / 0.5V / 2.5V / 10V / 50V / 250V / 1000V.
- AC Voltage: 10V / 50V / 250V / 1000V.
- DC Current: 50μA / 2.5mA / 25mA / 250mA.
- Resistance: 2kΩ / 20kΩ / 200kΩ / 2MΩ / 20MΩ.
- dB Measurement: -10dB to +22dB.
- hFE Measurement: 0-1000.
- ICEO Measurement: 150μA / 1.5mA / 15mA / 150mA.
Specifications:
- Dimensions: 100mm × 150mm × 41mm.
- Weight: Approx. 300g (including battery).
- Power Source: 1.5V (AA) × 2, 9V (6F22) × 1.
- Safety Standard: EN 61010-1 CAT II 1000V.
