AC/DC Digital Clamp Meter

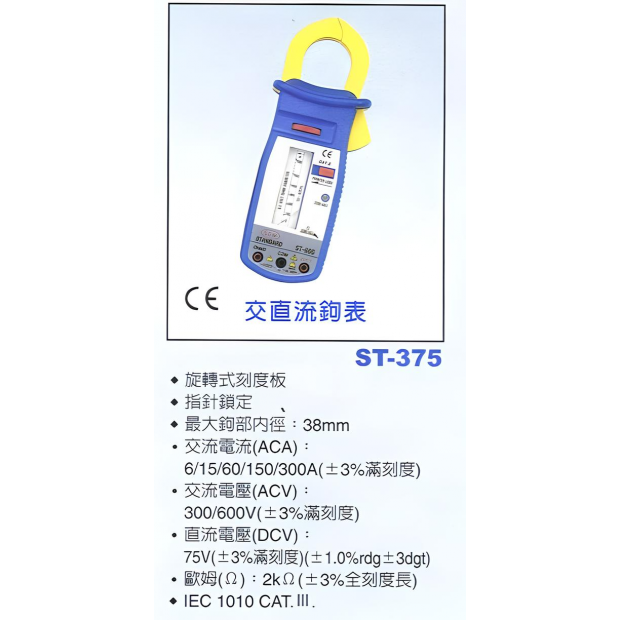

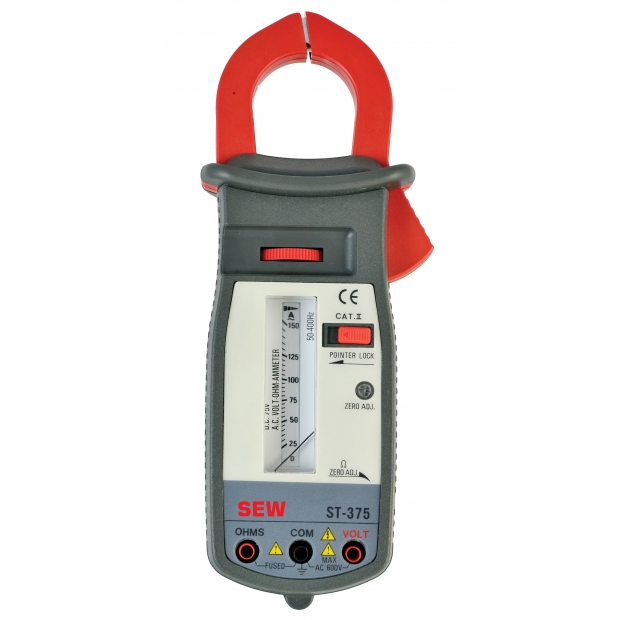

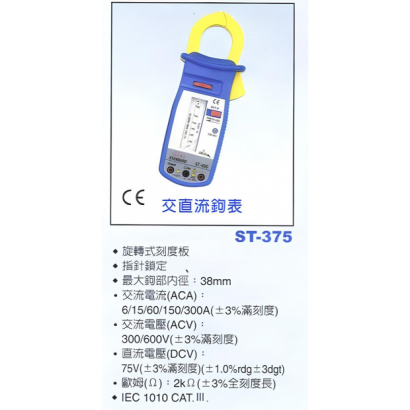

ST-375 AC/DC Clamp Meter
ST-375 AC/DC Clamp Meter
- AC Current Ranges: 6A / 15A / 60A / 150A / 300A (±3% of full scale).
- AC Voltage Ranges: 300V / 600V (±3% of full scale).
- DC Voltage Range: 75V (±3% of full scale).
- Resistance Range: 2kΩ (±3% of scale length).
- Frequency Response:
- 50/60Hz for ACA 6A.
- 50-400Hz for ACA 15A / 60A / 150A / 300A.
- Conductor Size: 38mm max.
- Dimensions: 230mm × 72mm × 37mm.
- Weight: Approx. 420g (including battery).
- Safety Standards: EN 61010-1 CAT II 600V, EN 61010-2-32.
- AC Voltage Ranges: 300V / 600V (±3% of full scale).
- DC Voltage Range: 75V (±3% of full scale).
- Resistance Range: 2kΩ (±3% of scale length).
- Frequency Response:
- 50/60Hz for ACA 6A.
- 50-400Hz for ACA 15A / 60A / 150A / 300A.
- Conductor Size: 38mm max.
- Dimensions: 230mm × 72mm × 37mm.
- Weight: Approx. 420g (including battery).
- Safety Standards: EN 61010-1 CAT II 600V, EN 61010-2-32.
