Earth Resistance Meter

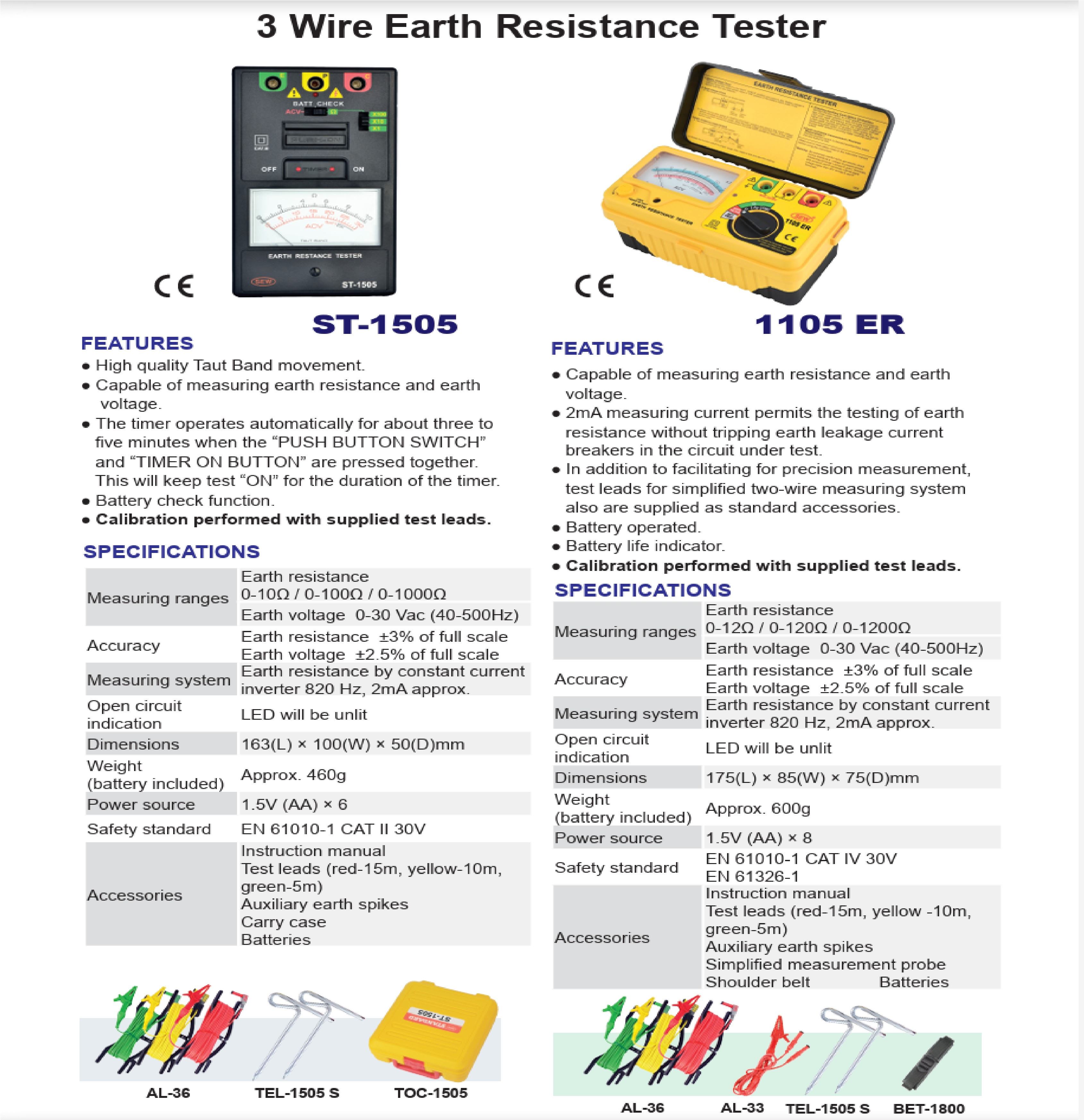

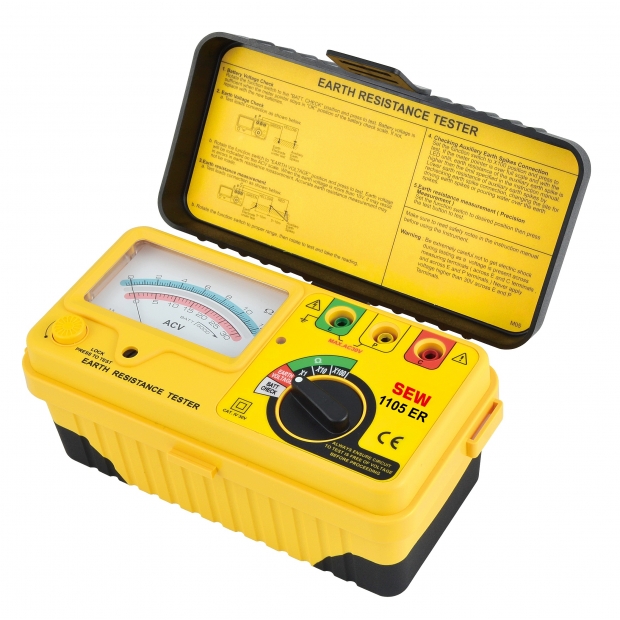

1105ER Earth Resistance Meter
1105ER Earth Resistance Meter
- Earth resistance measurement: 0-12Ω, 0-120Ω, 0-1200Ω.
- Earth voltage measurement: 0-30V AC (40-500Hz).
- 2mA measuring current, allowing testing without tripping earth leakage breakers.
- Battery-operated with a battery life indicator.
- Calibration performed with supplied test leads.
- Supports both two-wire and three-wire measurement systems.
- Compact design: 175mm × 85mm × 75mm, weighing approximately 600g.
- Safety standards: EN 61010-1 CAT IV 30V, EN 61326-1.
- Earth voltage measurement: 0-30V AC (40-500Hz).
- 2mA measuring current, allowing testing without tripping earth leakage breakers.
- Battery-operated with a battery life indicator.
- Calibration performed with supplied test leads.
- Supports both two-wire and three-wire measurement systems.
- Compact design: 175mm × 85mm × 75mm, weighing approximately 600g.
- Safety standards: EN 61010-1 CAT IV 30V, EN 61326-1.
