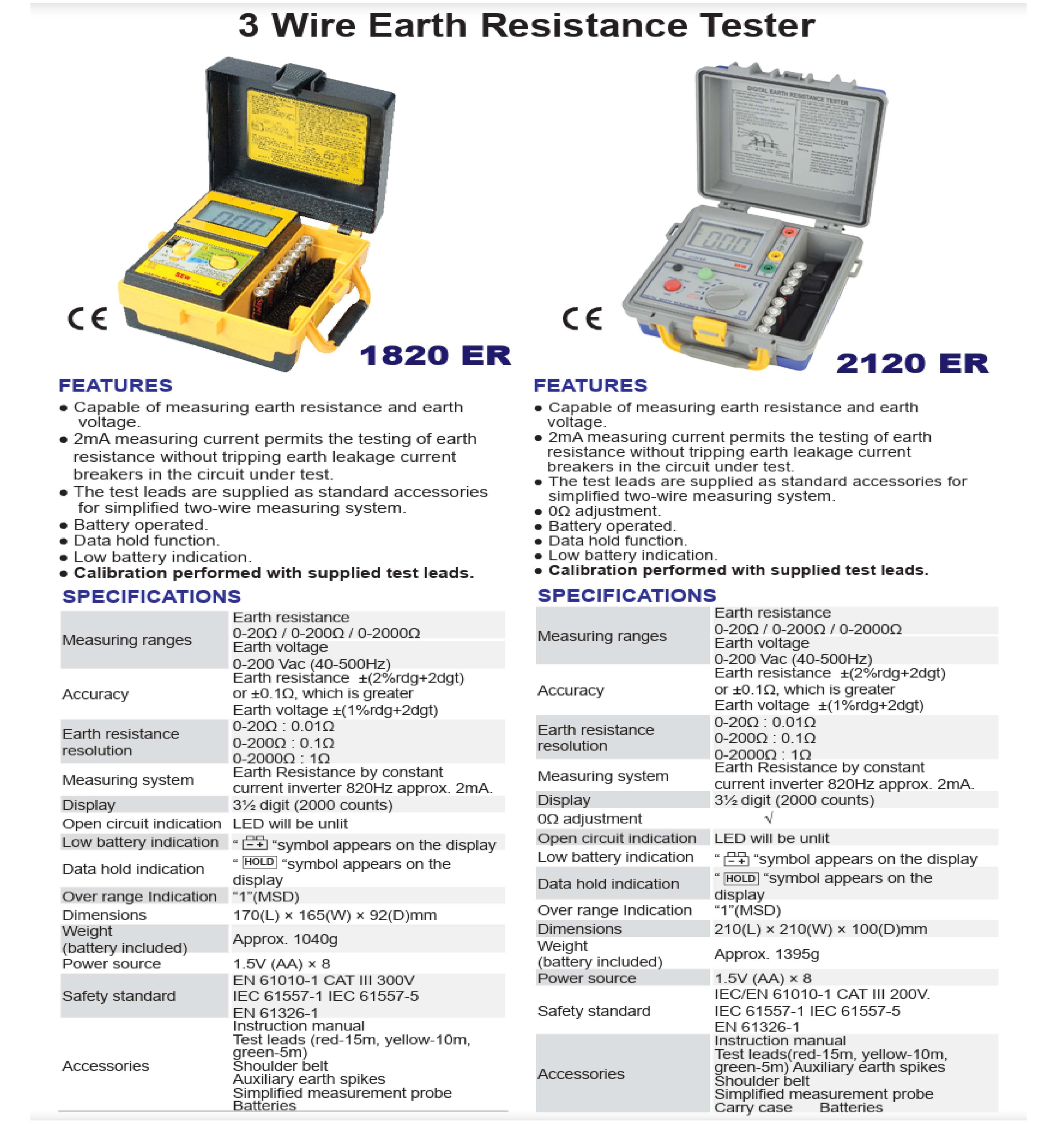

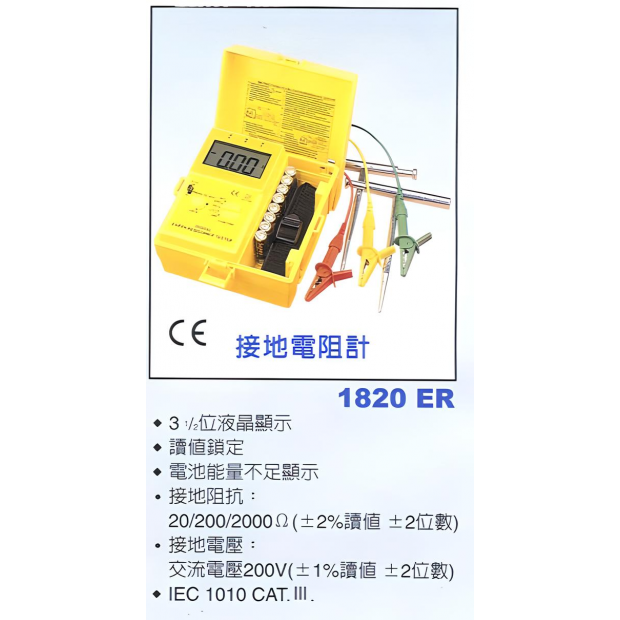

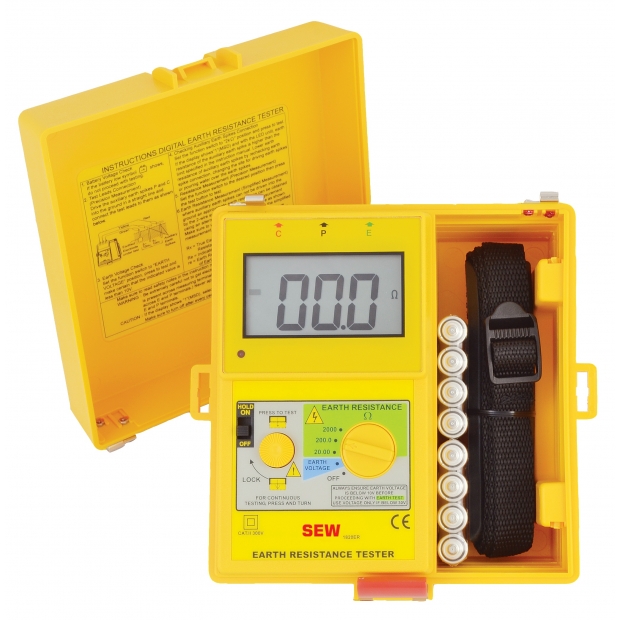

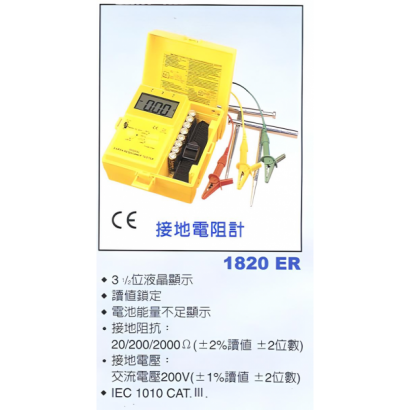

1820ER Earth Resistance Meter
1820ER Earth Resistance Meter
- Earth resistance measurement: 0-20Ω, 0-200Ω, 0-2000Ω.
- Earth voltage measurement: 0-200V AC (40-500Hz).
- 2mA measuring current, allowing testing without tripping earth leakage breakers.
- Battery-operated with a low battery indicator.
- Data hold function for easy readings.
- Over-range indication: “1” (MSD).
- Calibration performed with supplied test leads.
- Safety standards: EN 61010-1 CAT III 300V, IEC 61557-1, IEC 61557-5, EN 61326-1.
- Compact design: 170mm × 165mm × 92mm, weighing approximately 1040g.
- Earth voltage measurement: 0-200V AC (40-500Hz).
- 2mA measuring current, allowing testing without tripping earth leakage breakers.
- Battery-operated with a low battery indicator.
- Data hold function for easy readings.
- Over-range indication: “1” (MSD).
- Calibration performed with supplied test leads.
- Safety standards: EN 61010-1 CAT III 300V, IEC 61557-1, IEC 61557-5, EN 61326-1.
- Compact design: 170mm × 165mm × 92mm, weighing approximately 1040g.
DETAIL
