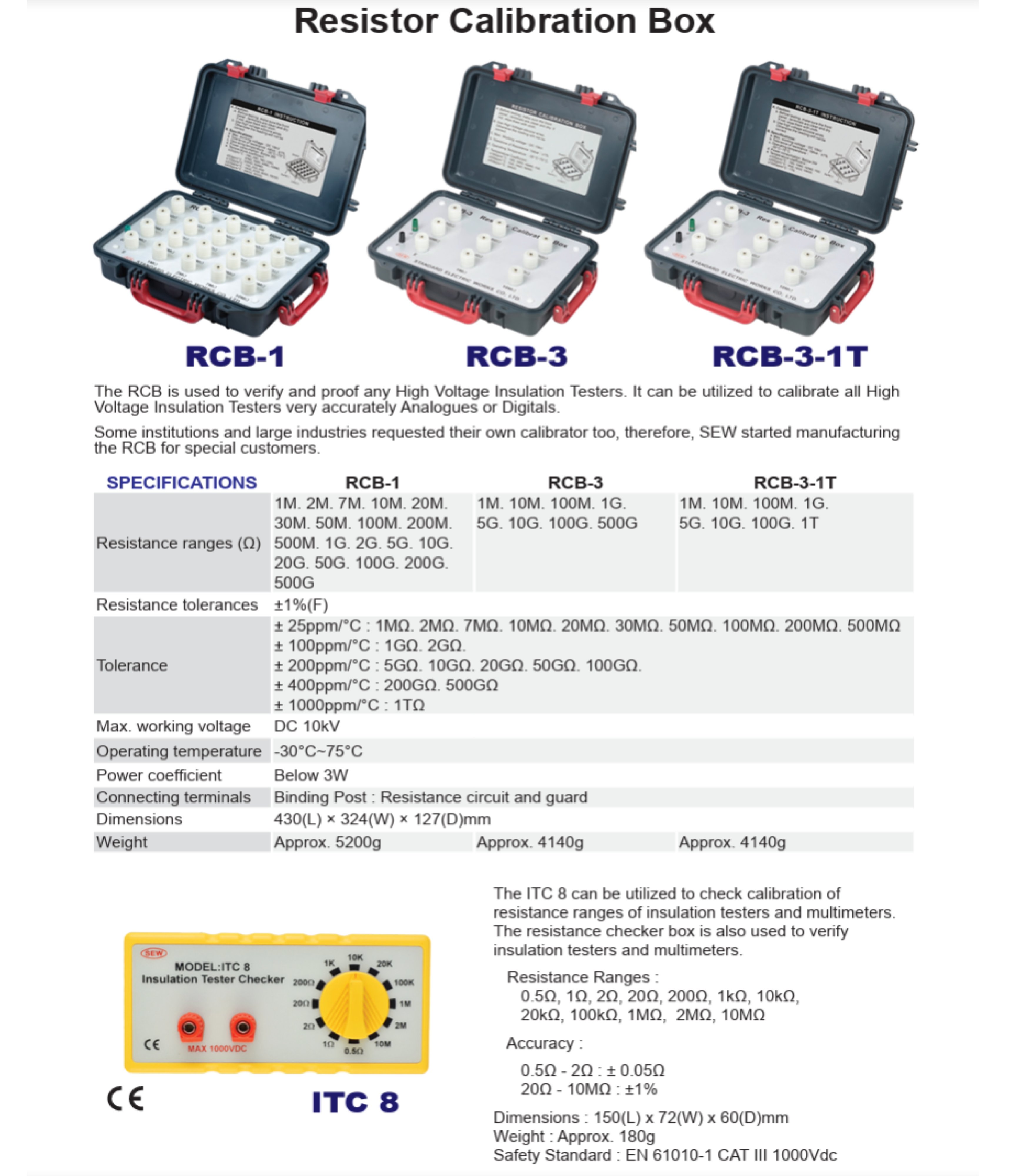

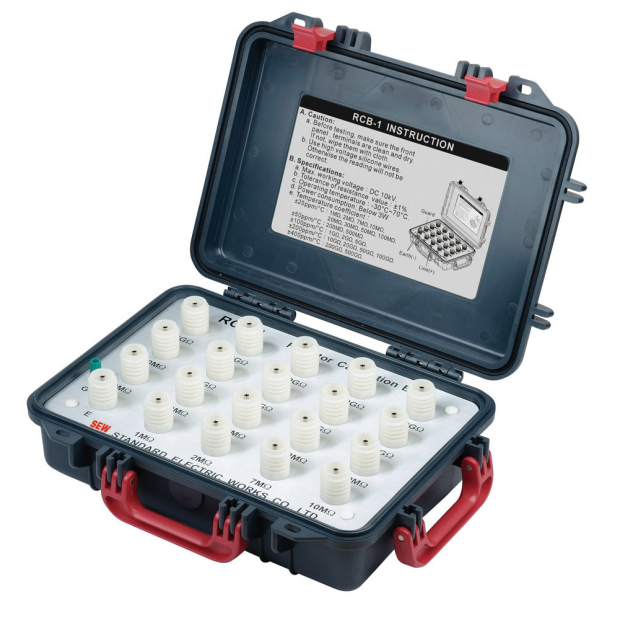

RCB-1 Resistor Calibration Box

- 19 resistance ranges from 1MΩ to 500GΩ.
- High accuracy with resistance tolerances ranging from ±1% to ±1000ppm/°C.
- Maximum working voltage: DC 10kV.
- Low power coefficient: Below 3W.
- Operating temperature: -30°C to 75°C.
- Binding post terminals for secure connections.
- Durable construction for long-term reliability.
Specifications:
- Dimensions: 430mm × 324mm × 127mm.
- Weight: Approx. 5200g.
