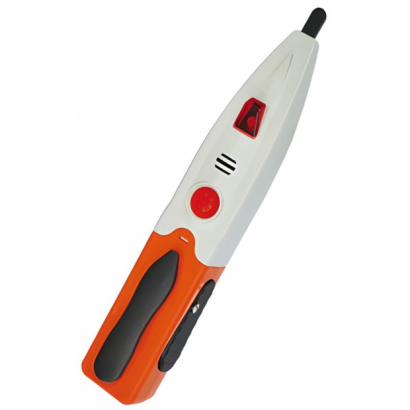

LVD-20 Contact Voltage Detector

- Contact-type detection for accurate voltage measurement.
- LED indicator and audible alarm when voltage is present.
- Designed for AC/DC voltage detection.
- Suitable for bare wires or conductors.
- Self-test function to verify proper operation before use.
- Low power consumption for extended battery life.
- Compact and lightweight design for easy portability.
- Indoor use only.

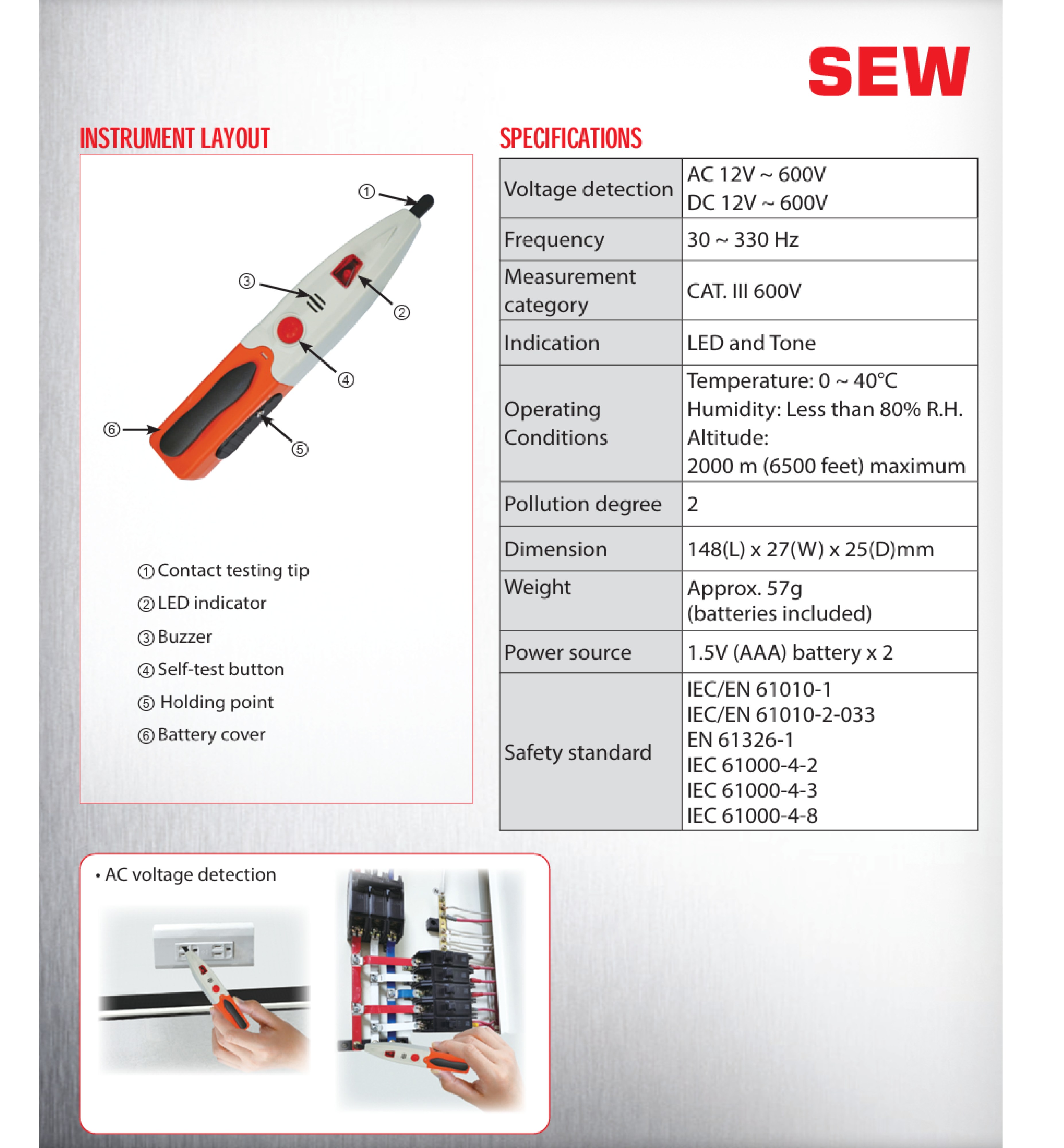

Specifications:
- Voltage Detection Range: AC 12V ~ 600V DC 12V ~ 600V.
- Frequency Range: 30 ~ 330 Hz.
- Measurement Category: CAT III 600V.
- Operating Temperature: 0~40°C.
- Humidity: Less than 80% R.H..
- Altitude: Up to 2000m (6500 feet).
- Pollution Degree: 2.
- Dimensions: 148mm × 27mm × 25mm.
- Weight: Approx. 57g (including batteries).
- Power Source: 1.5V (AAA) × 2.
- Safety Standards: EN 61010-1, EN 61326-1, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-8.
