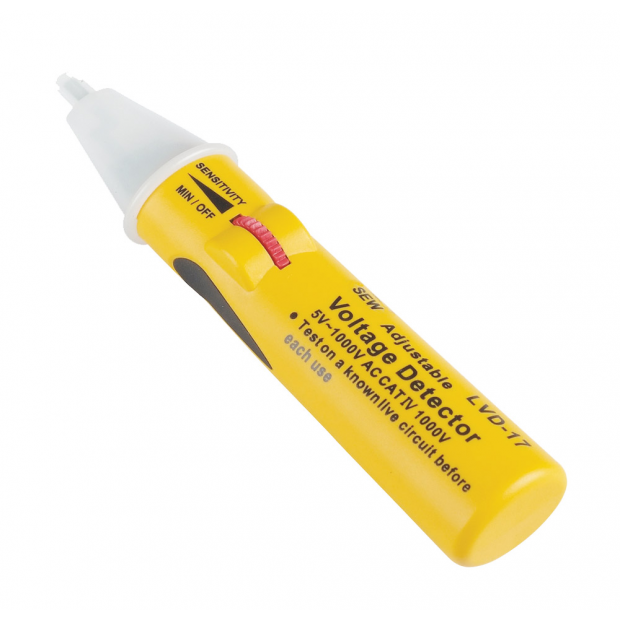

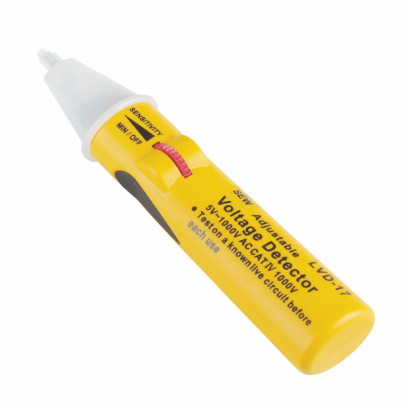

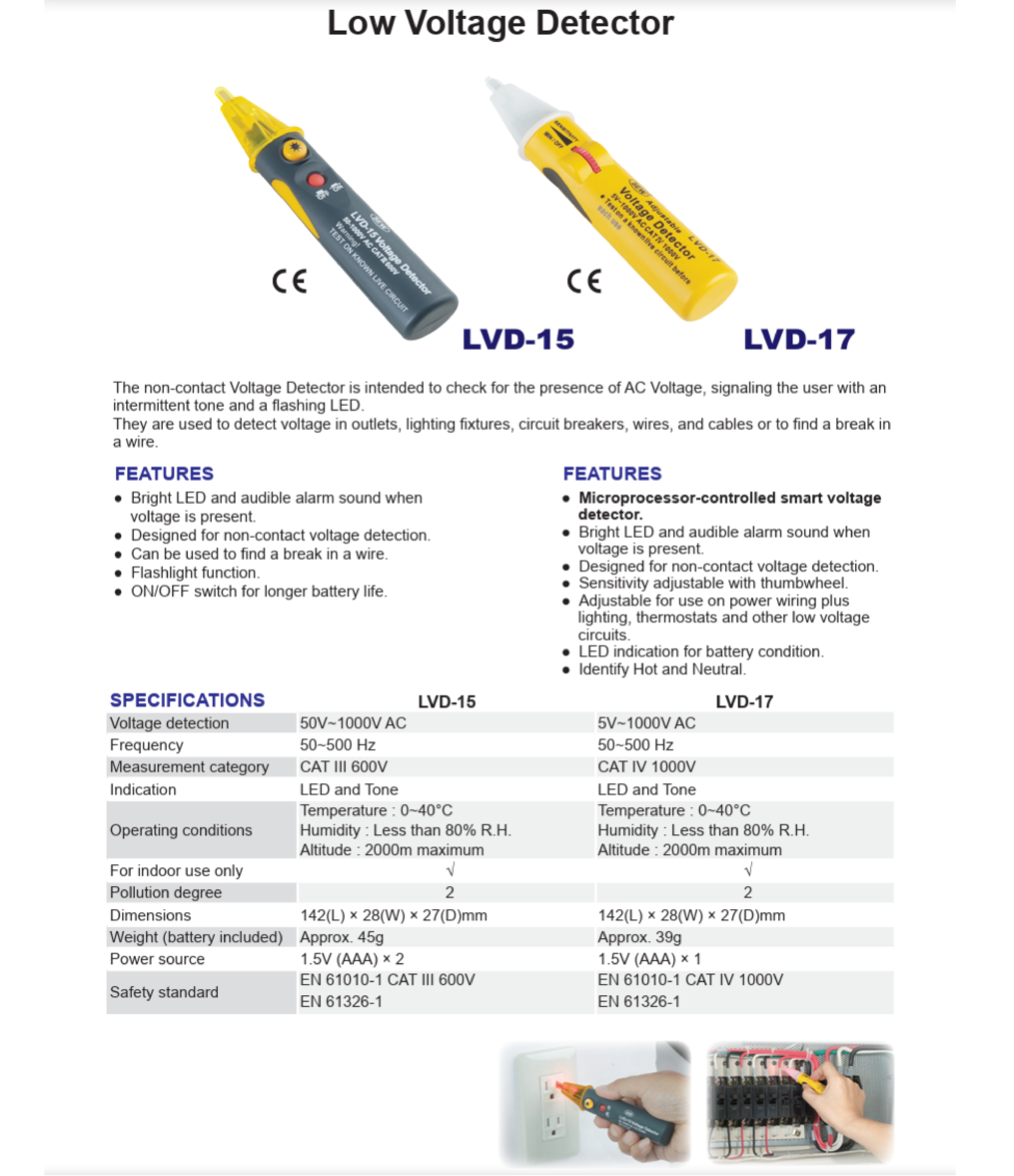

LVD-17 Low Voltage Detector

- Voltage detection range: 5V~1000V AC.
- Frequency range: 50~500 Hz.
- Non-contact detection for enhanced safety.
- Adjustable sensitivity using a thumbwheel.
- LED indication for battery condition.
- Identifies Hot and Neutral wires.
- Compact and lightweight design for easy portability.
- Measurement category: CAT IV 1000V.
- Operating conditions:
- Temperature: 0~40°C.
- Humidity: Less than 80% R.H..
- Altitude: Up to 2000m.
- Power source: 1.5V (AAA) × 1.
- Dimensions: 142mm × 28mm × 27mm.
- Weight: Approx. 39g (including battery).
- Safety Standards: EN 61010-1 CAT IV 1000V, EN 61326-1.
