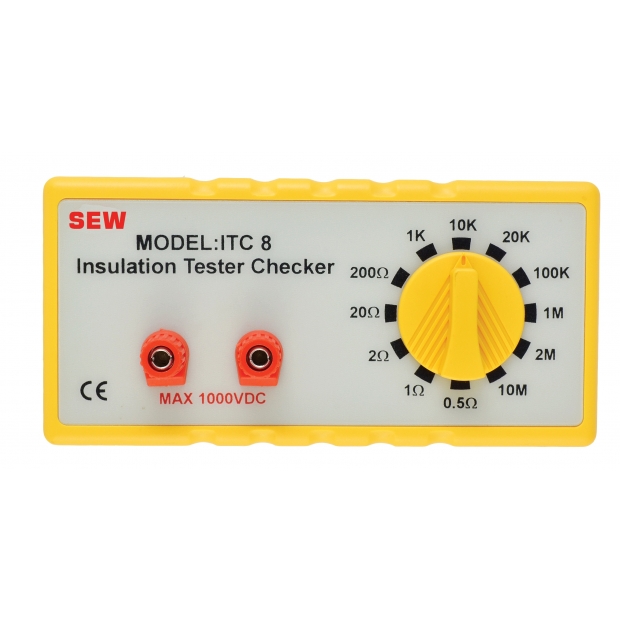

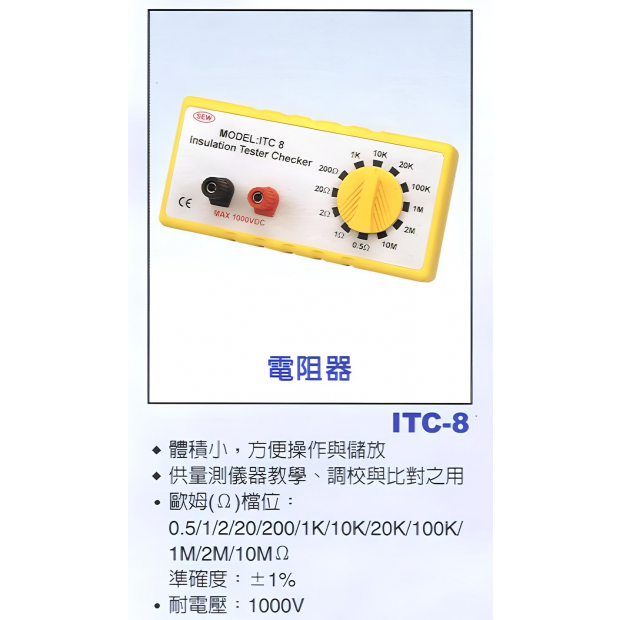

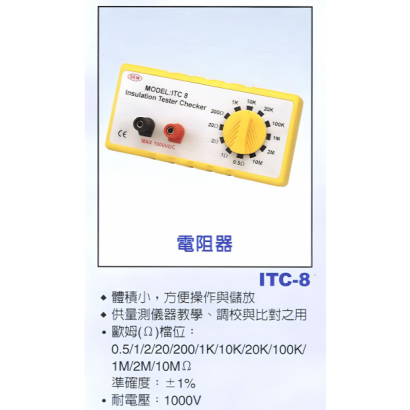

ITC-8 Insulation Tester Checker
ITC-8 Insulation Tester Checker
- Resistance calibration for insulation testers and multimeters.
- 12 selectable resistance settings ranging from 0.5Ω to 10MΩ.
- High accuracy:
- 0.5Ω - 2Ω: ±0.05Ω.
- 20Ω - 10MΩ: ±1%.
- Maximum input voltage: 1000V DC.
- Portable and lightweight design for both bench and field use.
- Impact-resistant ABS case for durability.
- Safety standard: EN 61010-1 CAT III 1000V DC.
- 12 selectable resistance settings ranging from 0.5Ω to 10MΩ.
- High accuracy:
- 0.5Ω - 2Ω: ±0.05Ω.
- 20Ω - 10MΩ: ±1%.
- Maximum input voltage: 1000V DC.
- Portable and lightweight design for both bench and field use.
- Impact-resistant ABS case for durability.
- Safety standard: EN 61010-1 CAT III 1000V DC.
