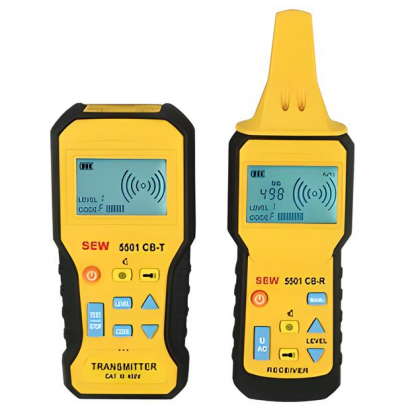

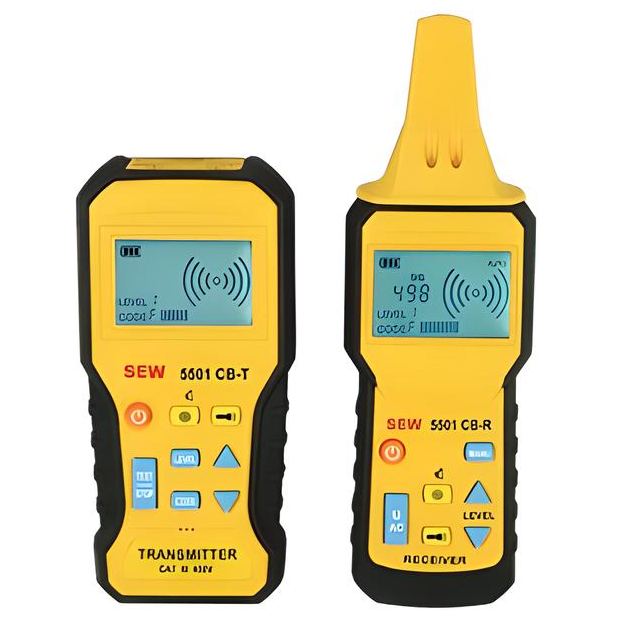

5501CB Cable Locator

Transmitter:
- Voltage measurement range: AC/DC 12V~450V.
- Signal transmission:
- Transmission power level selection (1, 2, 3).
- Transmission signal code selection (F, E, H, d, L, C, O, A).
- LCD display:
- Power level bar (indicates transmission power level).
- Action wave display (shows signal transmission).
- Additional functions:
- Flashlight & backlight for visibility in dim environments.
- Silent mode (disables button beep).
- Auto power-off for battery conservation.
Receiver:
- Cable tracing and identification for powered and unpowered cables.
- Signal detection (level, code, and value).
- Mode selection:
- Automatic mode.
- Manual mode (9 sensitivity levels).
- UAC mode (AC power line detection).
- LCD display:
- Danger symbol (indicates AC voltage presence).
- Signal level bar (shows signal strength and UAC power value).
- Additional functions:
- Flashlight & backlight.
- Silent mode (disables button beep & frequency tone).
- Auto power-off.

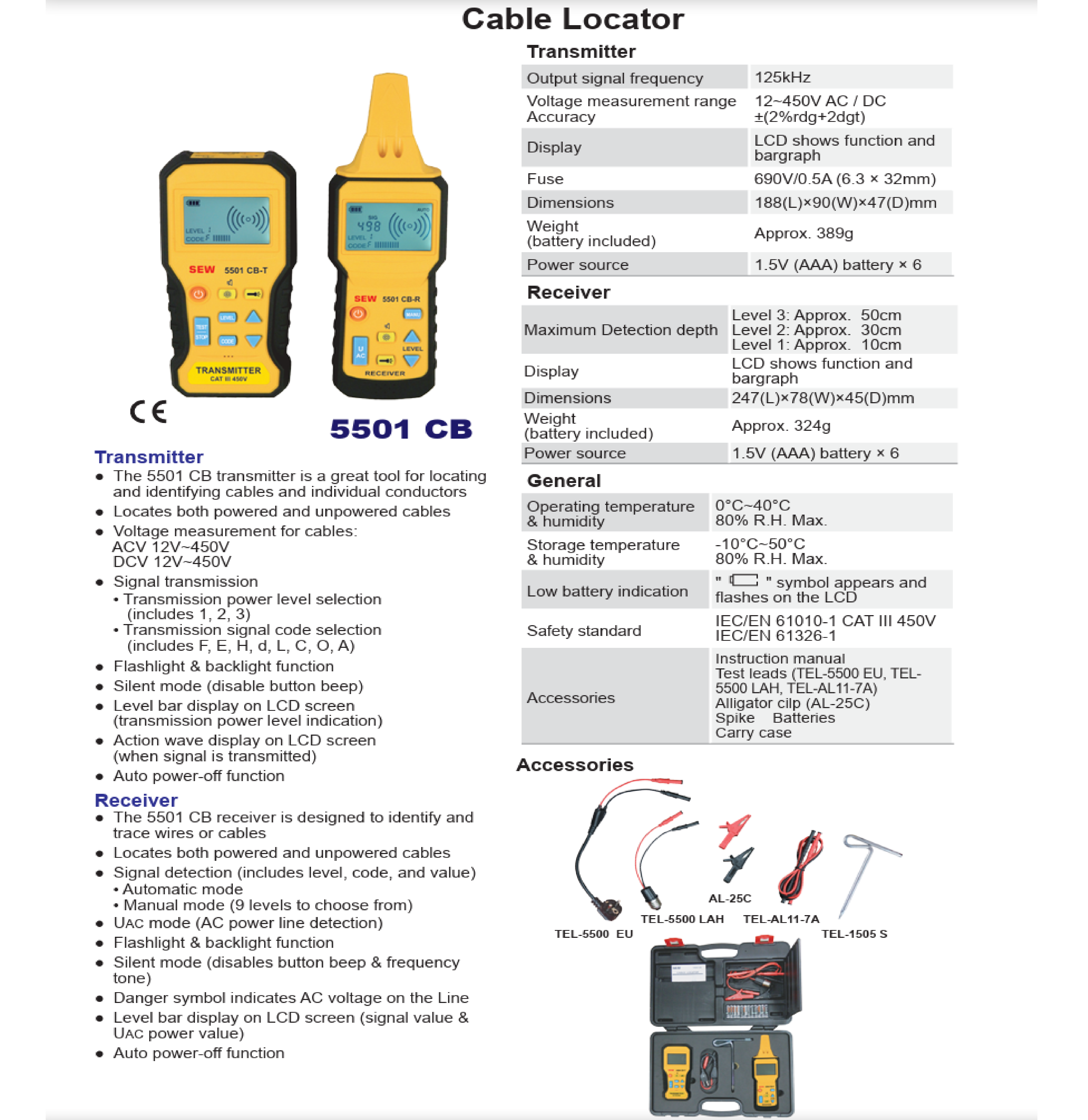

Specifications:
- Transmitter:
- Output signal frequency: 125kHz.
- Voltage measurement accuracy: ±2%rdg+2dgt.
- Power source: 1.5V (AAA) × 6.
- Dimensions: 188mm × 90mm × 47mm.
- Weight: Approx. 389g.
- Receiver:
- Maximum detection depth:
- Level 3: Approx. 50cm.
- Level 2: Approx. 30cm.
- Level 1: Approx. 10cm.
- Power source: 1.5V (AAA) × 6.
- Dimensions: 247mm × 78mm × 45mm.
- Weight: Approx. 324g.
