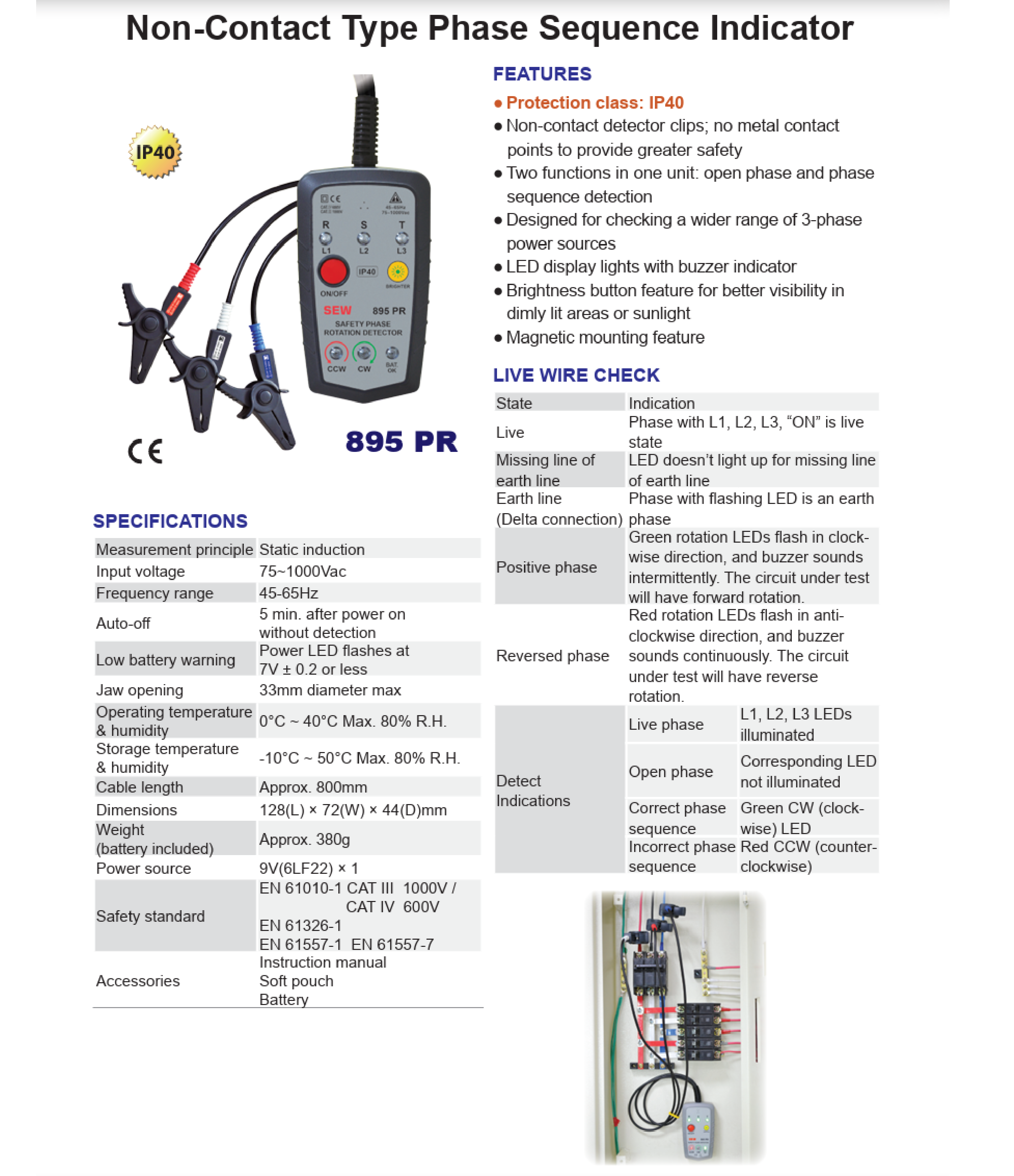

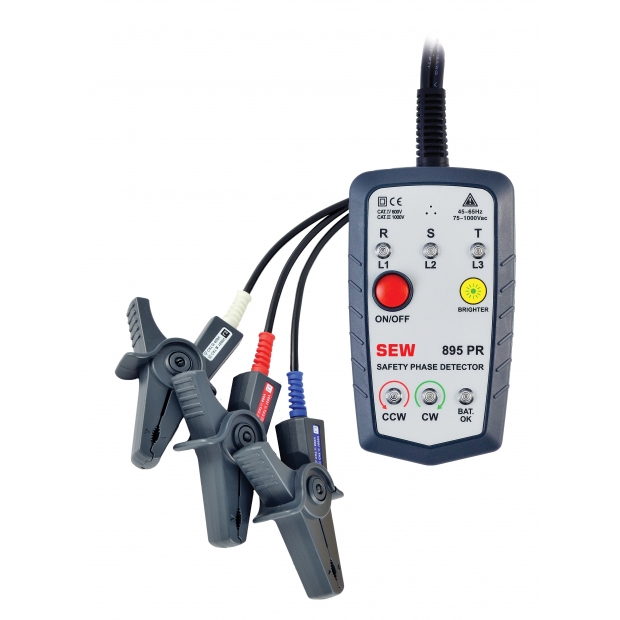

895PR Non-Contact Phase Sequence Indicator

- Non-contact detector clips for enhanced safety.
- Two functions in one: Phase sequence detection and open phase detection.
- Designed for checking a wide range of three-phase power sources.
- LED display lights with buzzer indicator for clear feedback.
- Brightness button for improved visibility in dim environments or sunlight.
- Magnetic mounting feature for easy attachment to AC distribution panels.
Specifications:
- Measurement Principle: Static induction.
- Input Voltage: 75V ~ 1000V AC.
- Frequency Range: 45Hz ~ 65Hz.
- Jaw Opening: 33mm max.
- Cable Length: Approx. 800mm.
- Operating Temperature: 0°C ~ 40°C.
- Storage Temperature: -10°C ~ 50°C.
- Power Source: 9V (6LF22) × 1.
- Safety Standards: EN 61010-1 CAT III 1000V / CAT IV 600V.
