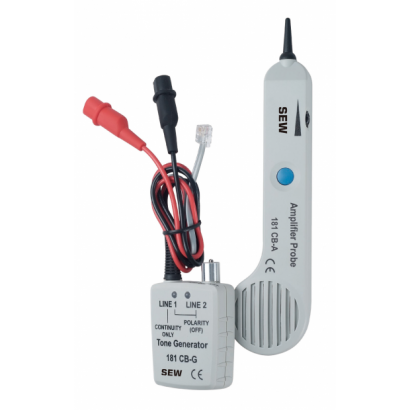

181CB Amplifier Detector & Audio Generator

Amplifier Probe:
- Identifies and traces wires or cables within a group.
- Works with any tone generator to locate wires.
- Adjustable volume control for sensitivity tuning.
- Recessed ON/OFF button to prevent battery drain.
- Headset or handset jack for audio monitoring.
Tone Generator:
- Locates and identifies cable pairs or individual conductors.
- Continuity and polarity testing for telephone lines.
- Selectable fast or slow tone for signal differentiation.
- Two bi-colored LEDs for polarity indication.
- Alligator clip terminals and RJ11 modular cable for connectivity.

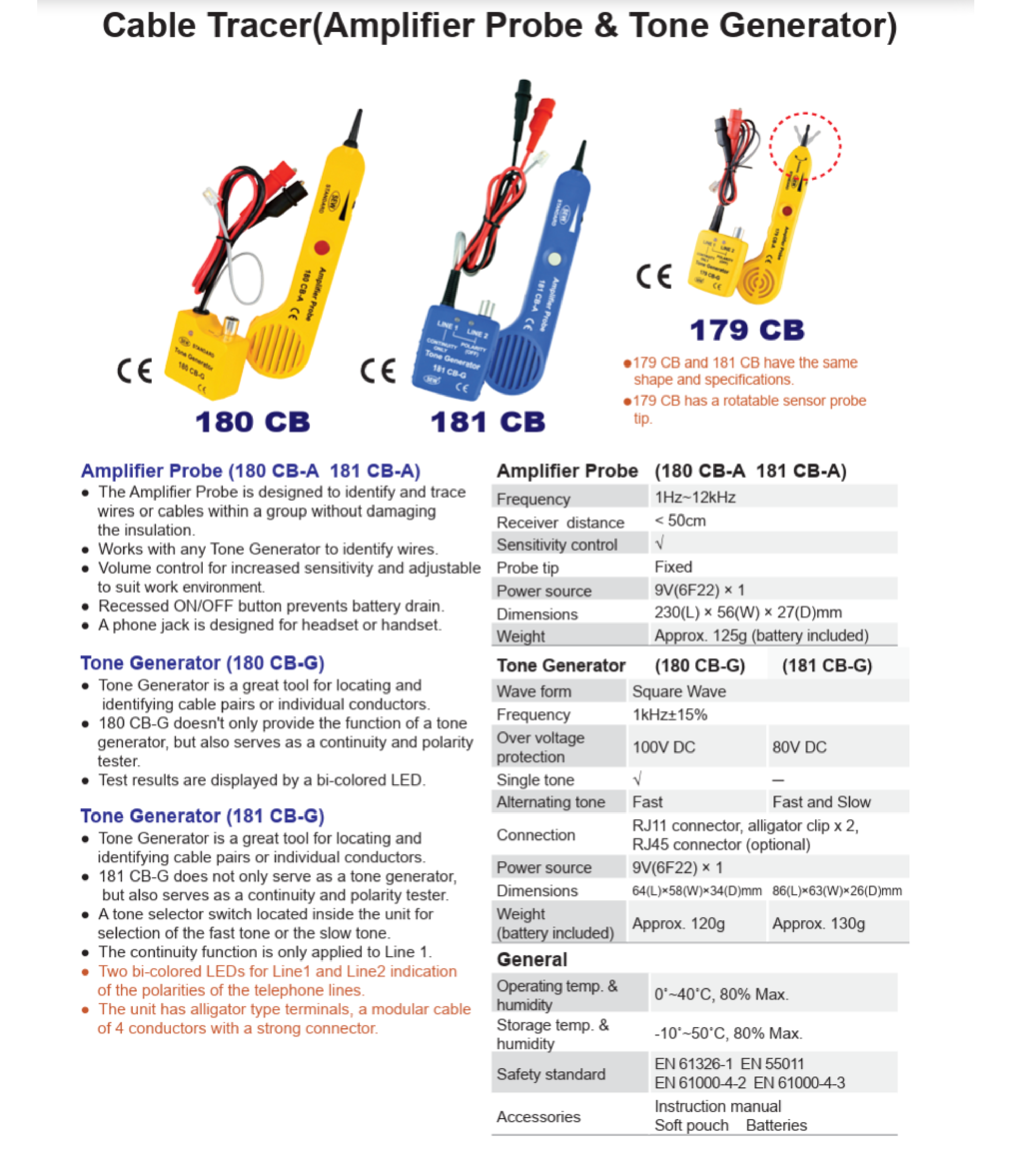

Specifications:
- Amplifier Probe:
- Frequency Range: 1Hz ~ 12kHz.
- Receiver Distance: < 50cm.
- Power Source: 9V (6F22) × 1.
- Dimensions: 230mm × 56mm × 27mm.
- Weight: Approx. 125g (battery included).
- Tone Generator:
- Waveform: Square Wave.
- Frequency: 1kHz ±15%.
- Overvoltage Protection: 80V DC.
- Connection: RJ11 connector, alligator clips × 2.
- Power Source: 9V (6F22) × 1.
- Dimensions: 86mm × 63mm × 26mm.
- Weight: Approx. 130g (battery included).
- General:
- Operating Temperature: 0°C ~ 40°C.
- Storage Temperature: -10°C ~ 50°C.
- Safety Standards: EN 61326-1, EN 55011, EN 61000-4-2, EN 61000-4-3.
