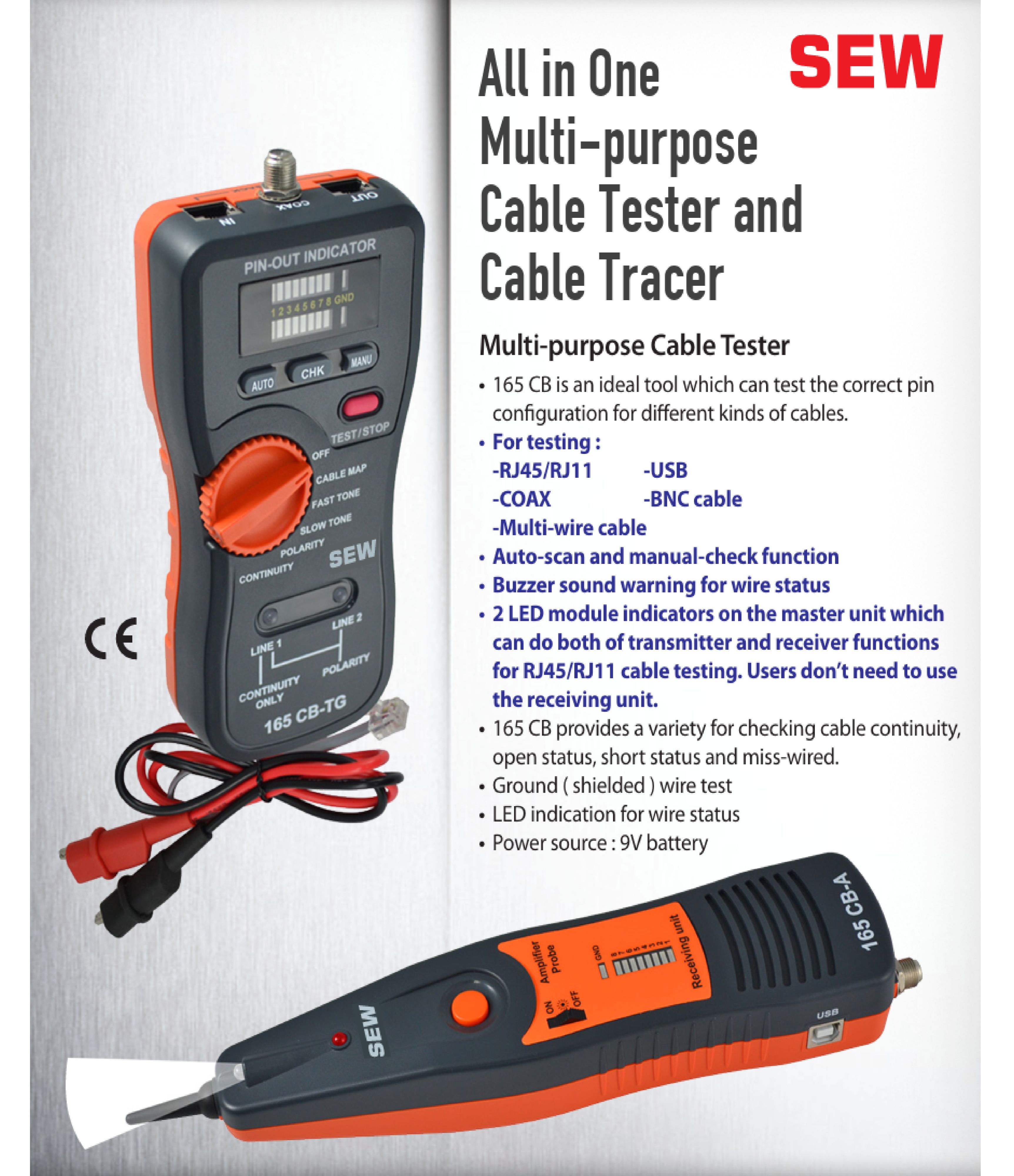

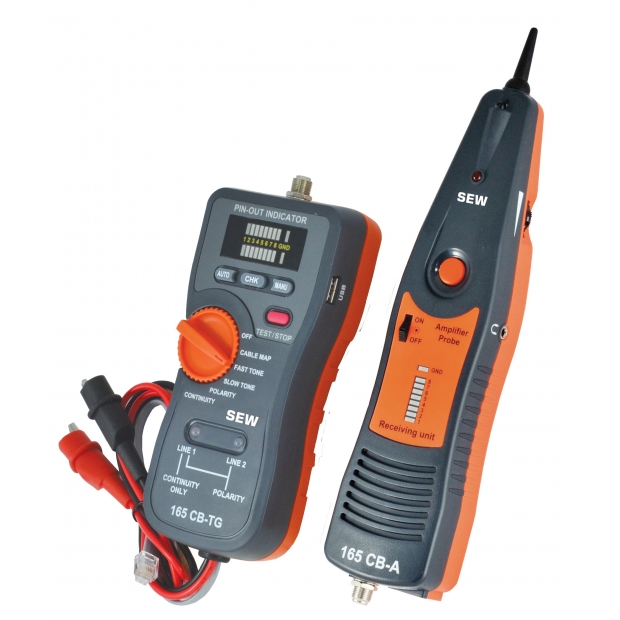

165CB Multi-Purpose Cable Tester & Tracer

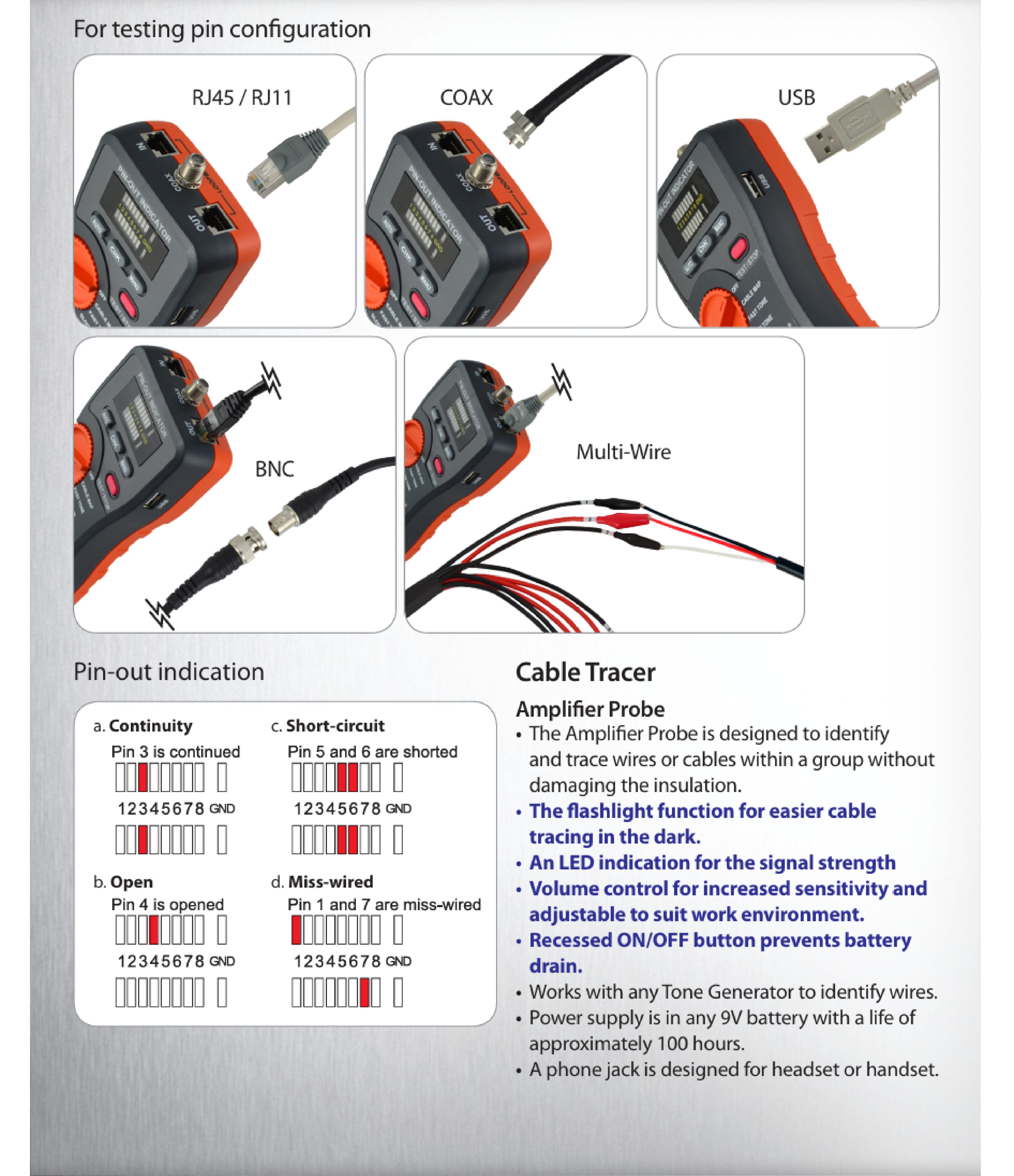

Cable Tester (Master Unit & Tone Generator)
- Tests correct pin configuration for multiple cable types.
- Auto-scan and manual-check functions.
- Buzzer warning for wire status.
- LED indicators for wire status.
- Ground (shielded) wire test.
- Power source: 9V battery.

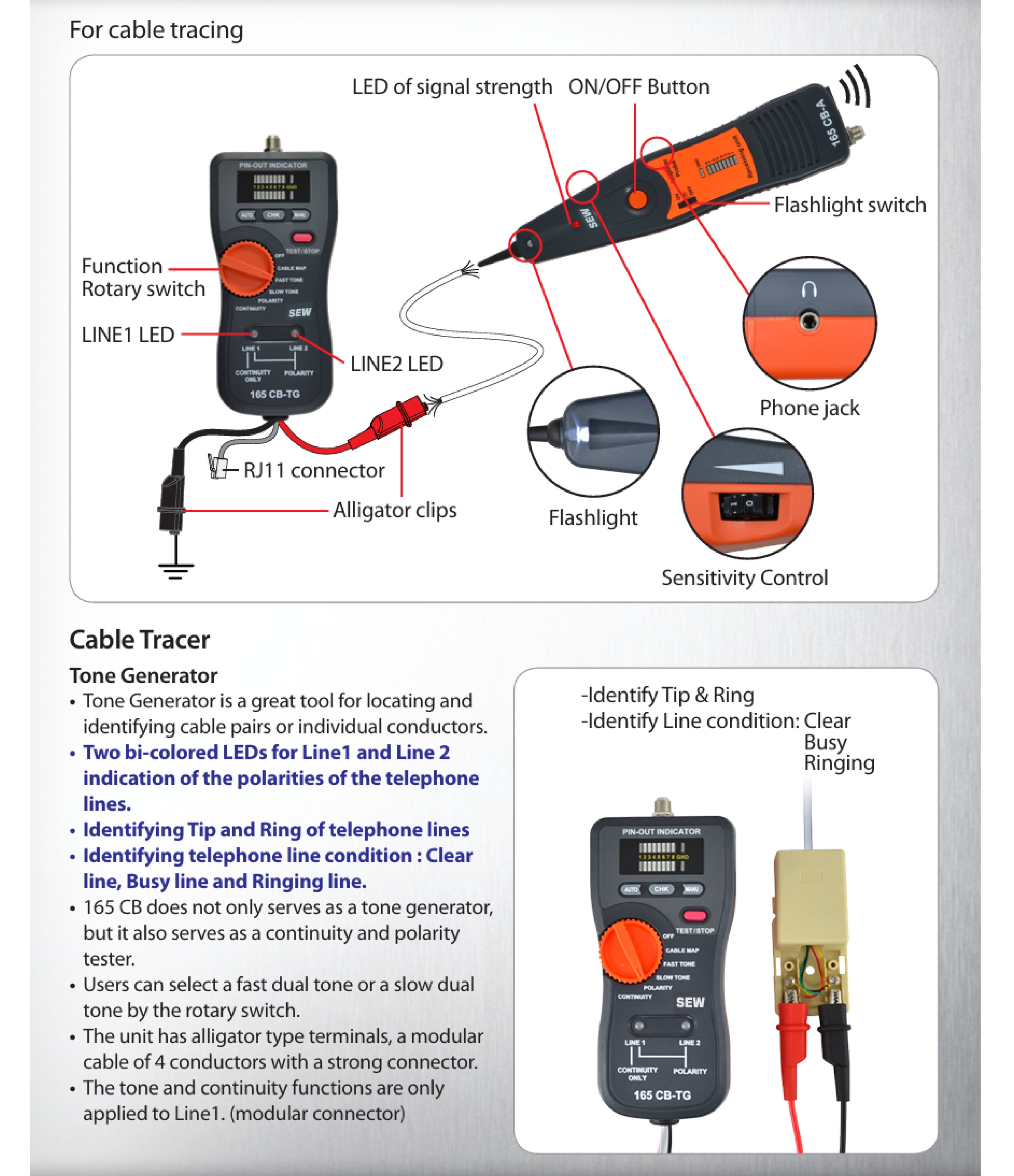

Cable Tracer (Amplifier Probe & Receiver)
- Identifies and traces wires or cables within a group.
- Flashlight function for easier cable tracing in dim environments.
- LED indication for signal strength.
- Adjustable sensitivity control.
- Works with any tone generator to locate wires.
- Recessed ON/OFF button to prevent battery drain.
- Headset or handset jack for audio monitoring.

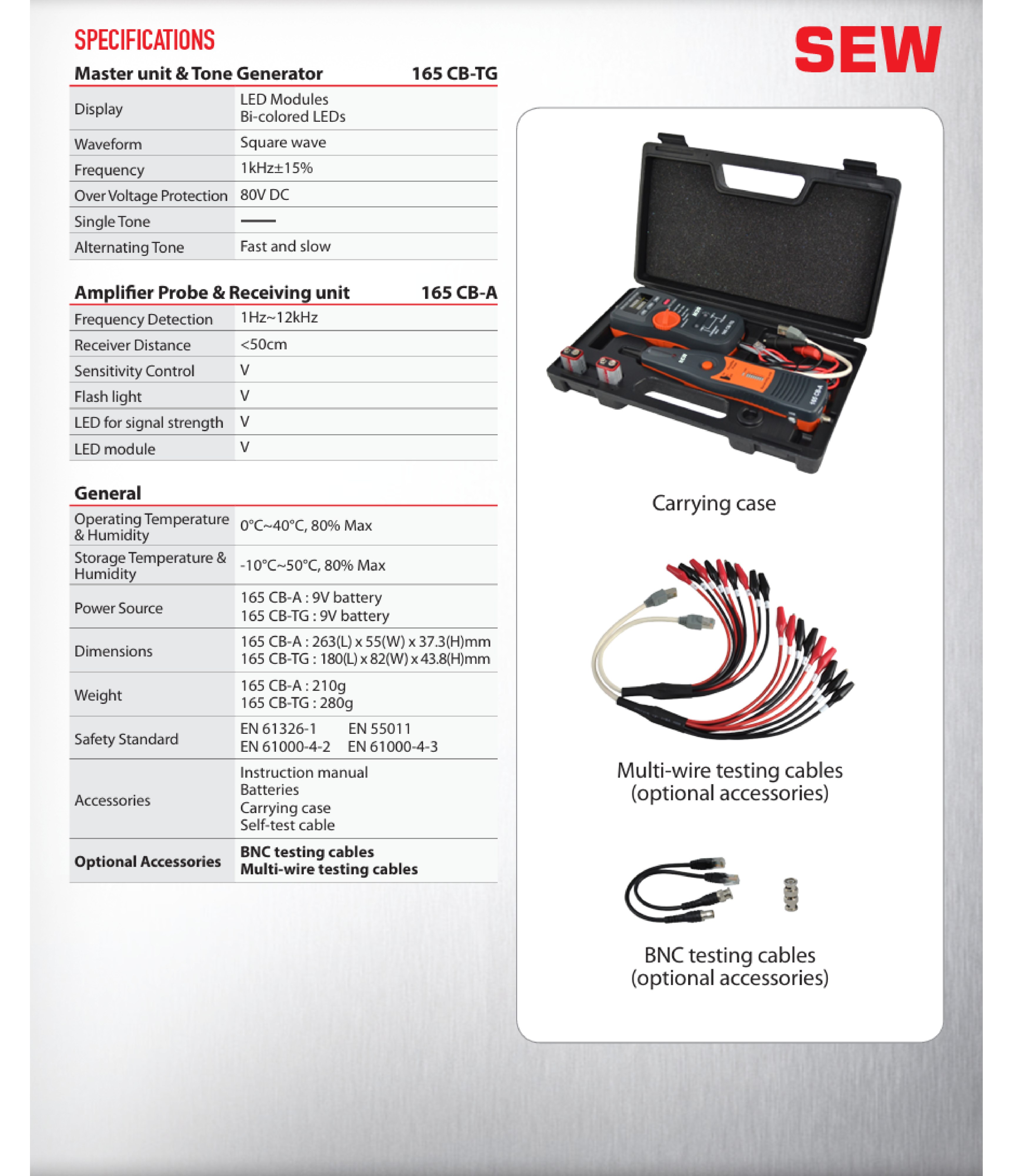

Specifications:
- Master Unit & Tone Generator:
- Waveform: Square wave.
- Frequency: 1kHz ± 15%.
- Overvoltage protection: 80V DC.
- Alternating tone: Fast and slow.
- Dimensions: 180mm × 82mm × 43.8mm.
- Weight: Approx. 280g (battery included).
- Amplifier Probe & Receiver:
- Frequency detection: 1Hz ~ 12kHz.
- Receiver distance: < 50cm.
- Power source: 9V battery.
- Dimensions: 263mm × 55mm × 37.3mm.
- Weight: Approx. 210g (battery included).
- General:
- Operating Temperature: 0°C ~ 40°C.
- Storage Temperature: -10°C ~ 50°C.
- Safety Standards: EN 61326-1, EN 55011, EN 61000-4-2, EN 61000-4-3.
