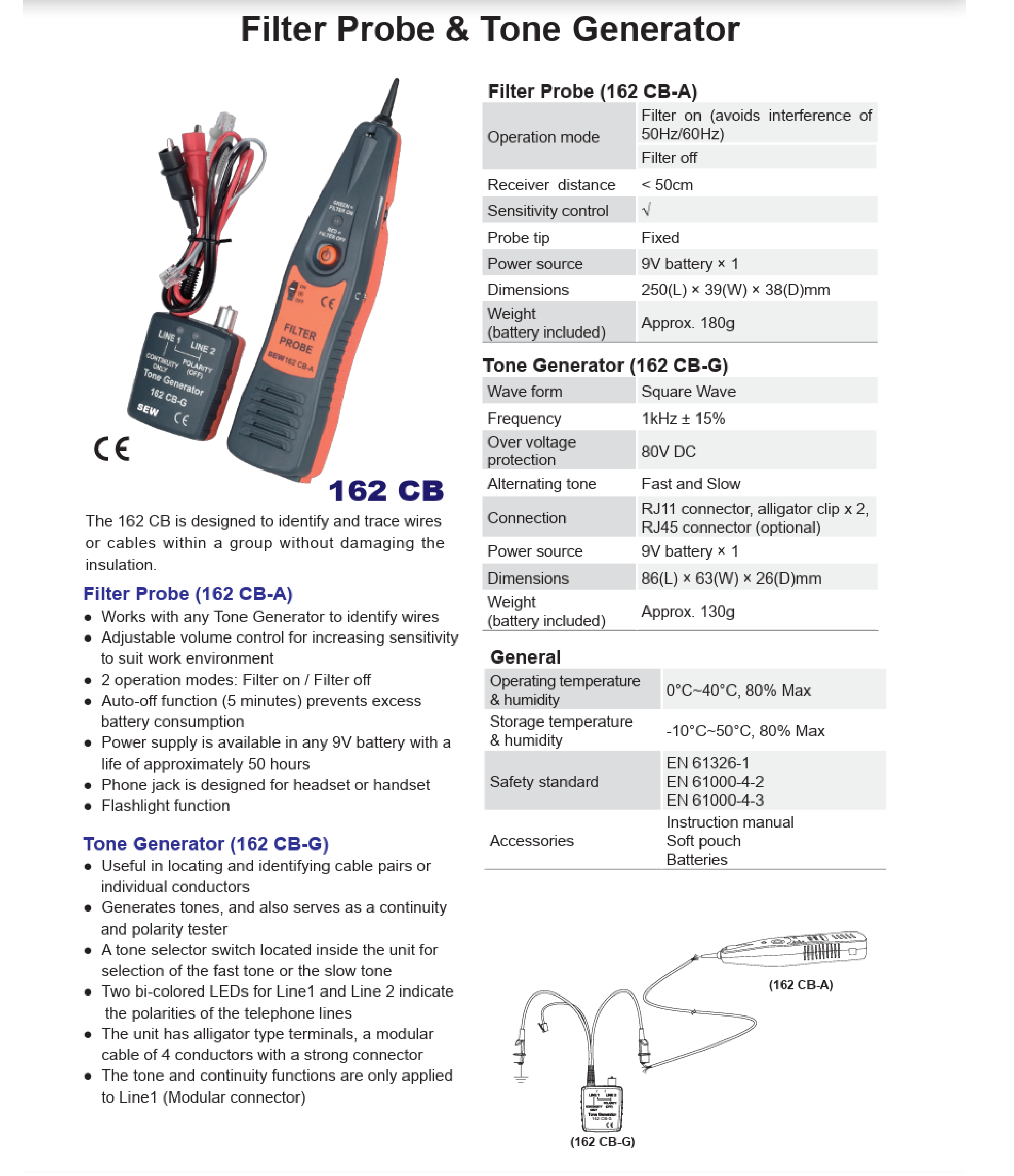

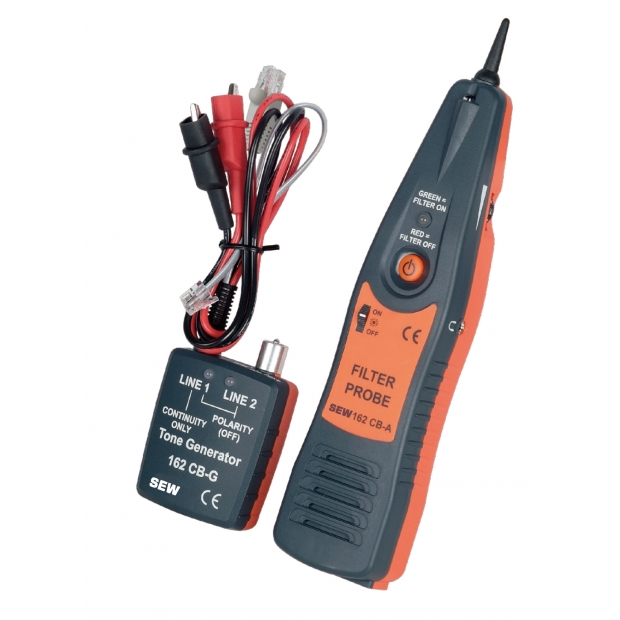

162CB Network & Cable Tester

Filter Probe:
- Works with any Tone Generator to identify wires.
- Adjustable volume control for sensitivity tuning.
- Two operation modes: Filter On (reduces AC power interference) and Filter Off.
- Auto power-off function after 5 minutes to conserve battery life.
- Flashlight function for use in dim environments.
- Headset or handset jack for audio monitoring.
Tone Generator:
- Locates and identifies cable pairs or individual conductors.
- Continuity and polarity testing for telephone lines.
- Selectable fast or slow tone for signal differentiation.
- Bi-colored LED indicators for polarity display.
- Alligator clip terminals and RJ11 modular cable for connectivity.
Specifications:
- Filter Probe:
- Receiver Distance: < 50cm.
- Sensitivity Control: Adjustable.
- Power Source: 9V battery × 1.
- Dimensions: 250mm × 39mm × 38mm.
- Weight: Approx. 180g (battery included).
- Tone Generator:
- Waveform: Square Wave.
- Frequency: 1kHz ±15%.
- Overvoltage Protection: 80V DC.
- Connection: RJ11 connector, alligator clips × 2.
- Power Source: 9V battery × 1.
- Dimensions: 86mm × 63mm × 26mm.
- Weight: Approx. 130g (battery included).
- General:
- Operating Temperature: 0°C ~ 40°C.
- Storage Temperature: -10°C ~ 50°C.
- Safety Standards: EN 61326-1, EN 61000-4-2, EN 61000-4-3.
