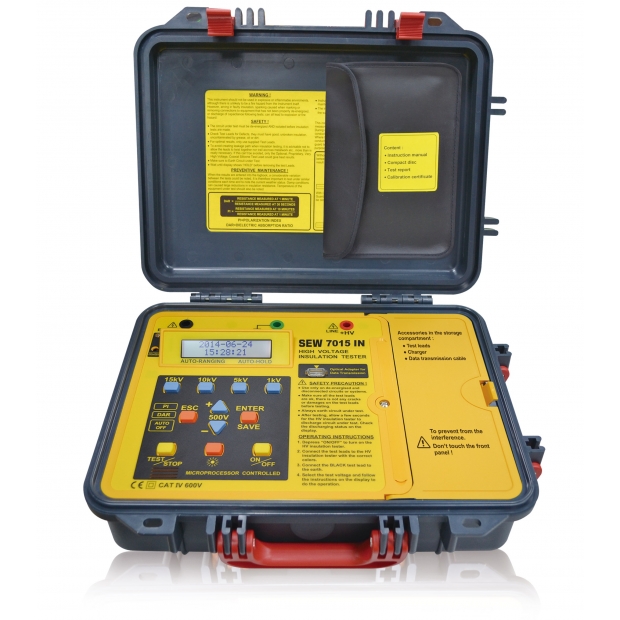

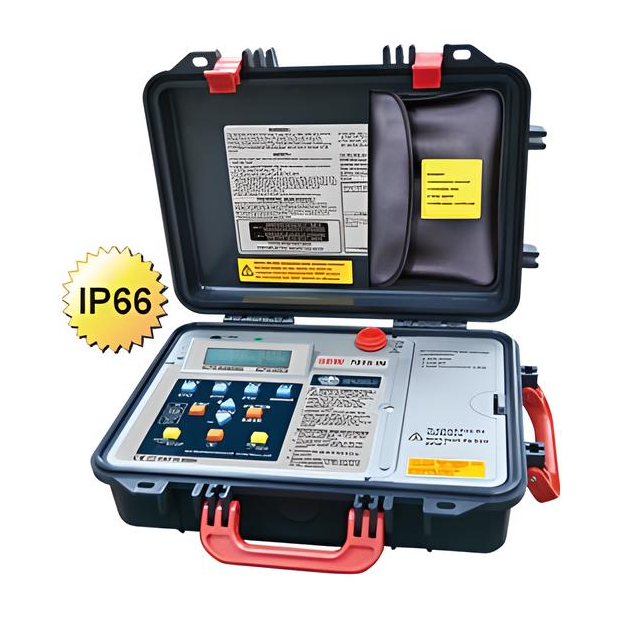

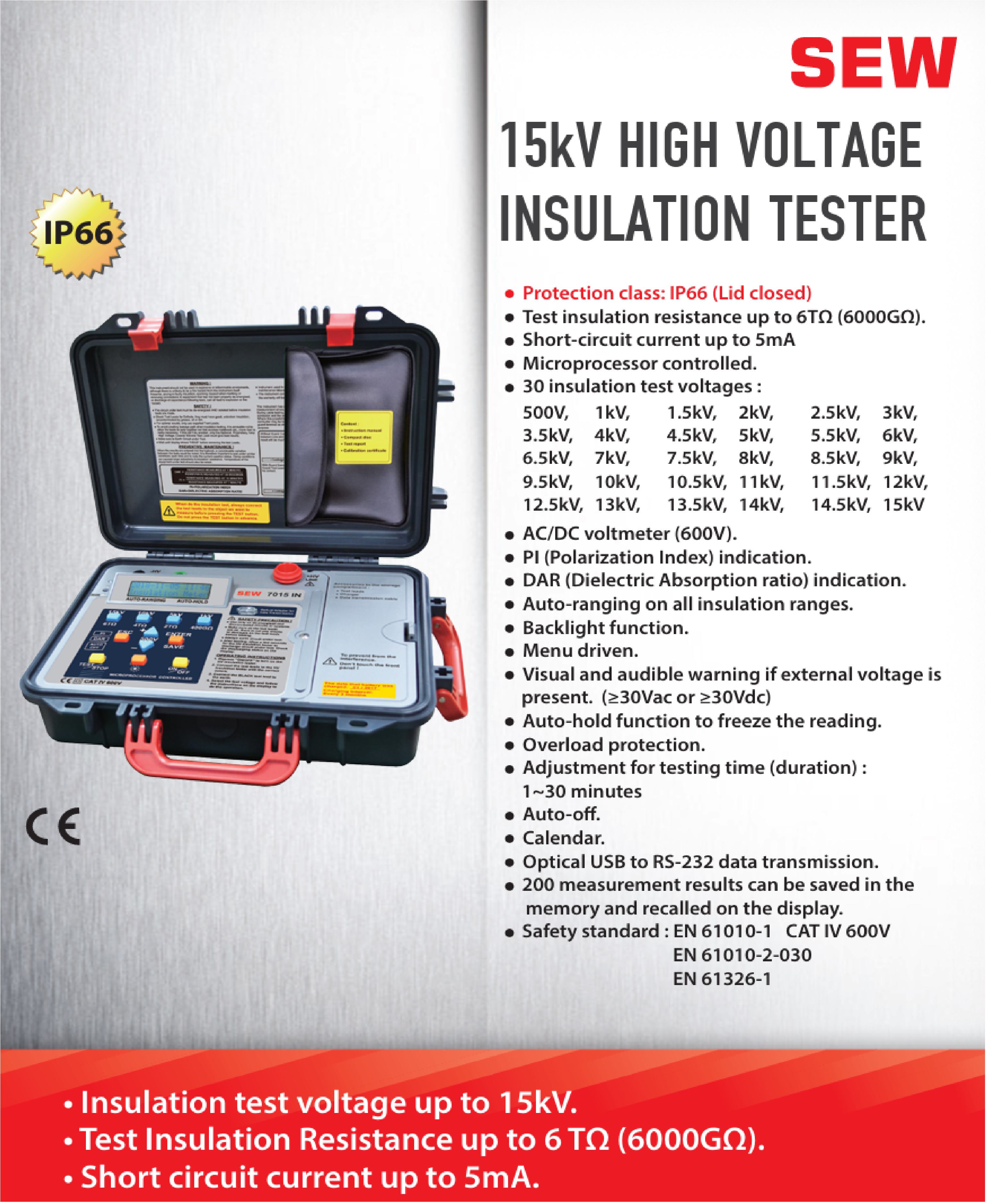

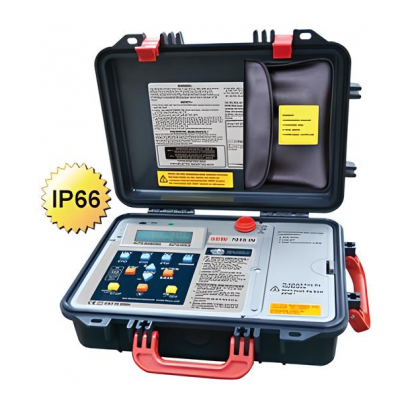

7015IN High Voltage Insulation Impedance Meter

- Wide Test Voltage Range: Supports 30 insulation test voltages from 500V to 15kV, adjustable in 500V increments.
- High Insulation Resistance Measurement: Can measure up to 6TΩ (6,000GΩ).
- Short Circuit Current: Up to 5mA, ensuring reliable testing.
- Microprocessor-Controlled: Provides accurate and stable readings.
- AC/DC Voltmeter: Measures voltages up to 600V.

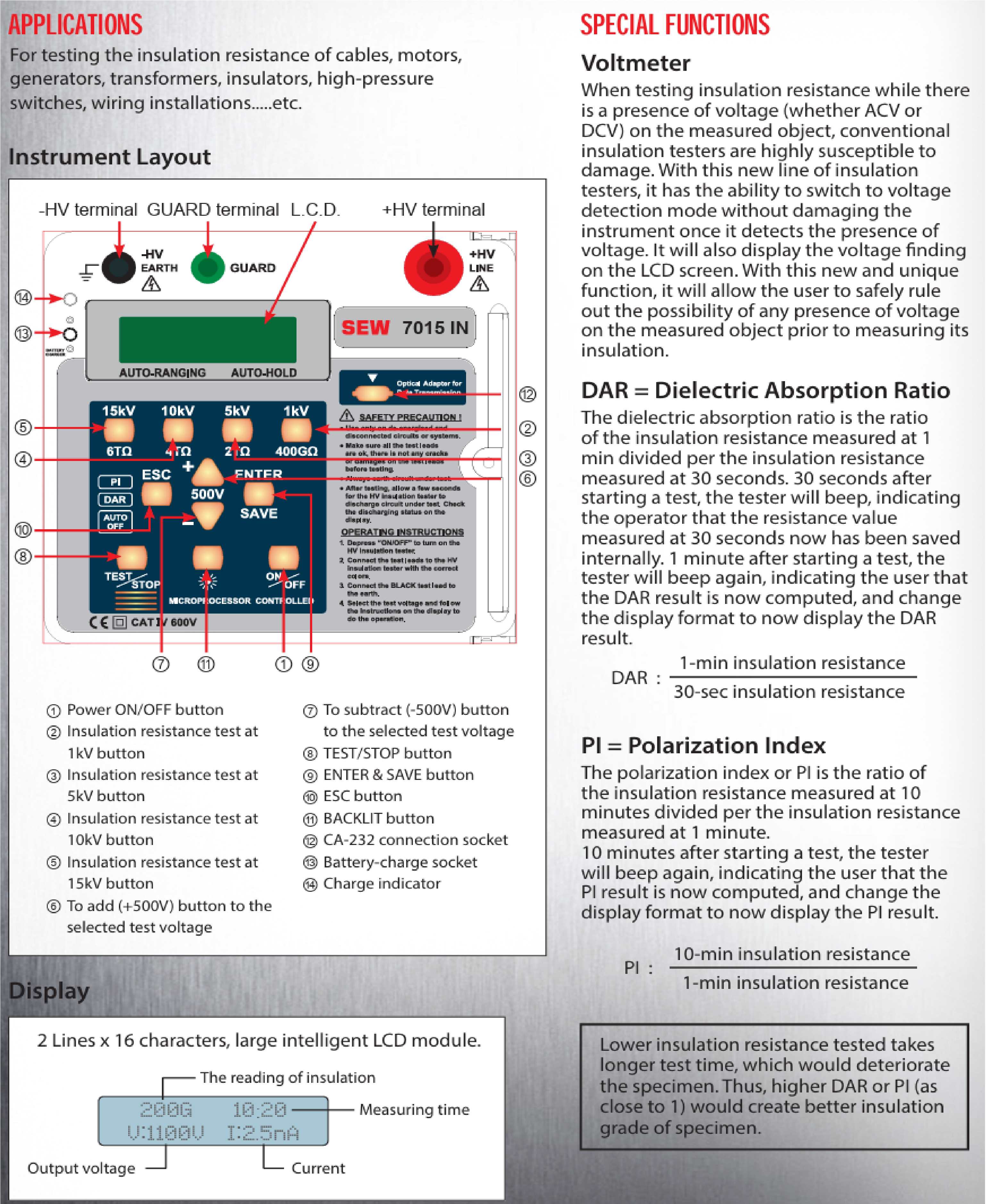

- PI (Polarization Index) & DAR (Dielectric Absorption Ratio) Indication: Helps assess insulation quality.
- Auto-Ranging & Backlight Function: Enhances usability in various environments.
- Safety Features: Includes overload protection, automatic discharge, and external voltage warning.

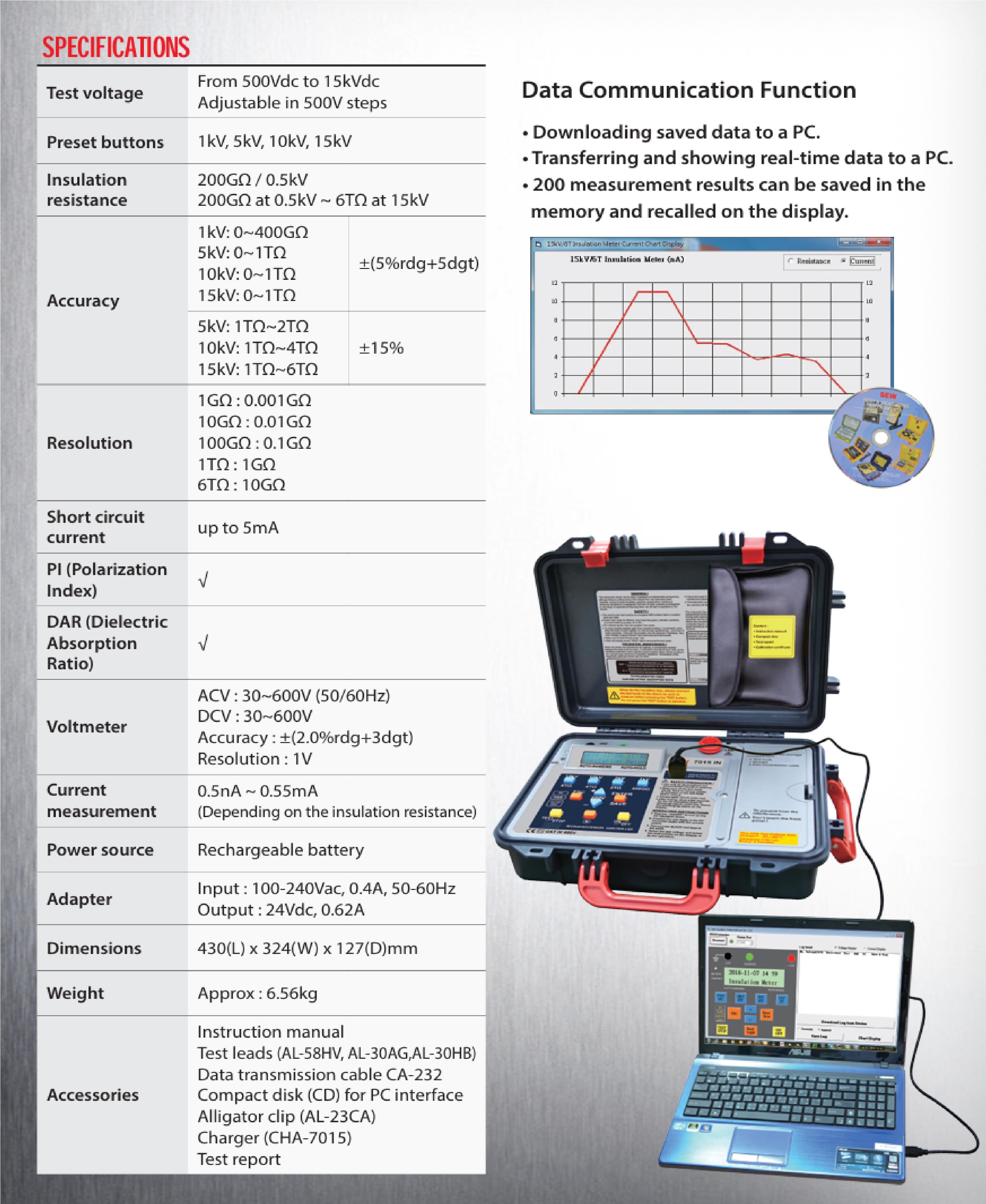

- Data Storage & Transmission: Can store 200 measurement results and supports USB to RS-232 data transfer.
- IP66 Protection: Ensures durability in harsh conditions.
Applications
- High-voltage insulation testing
- Preventive maintenance in electrical systems
- Industrial equipment diagnostics
