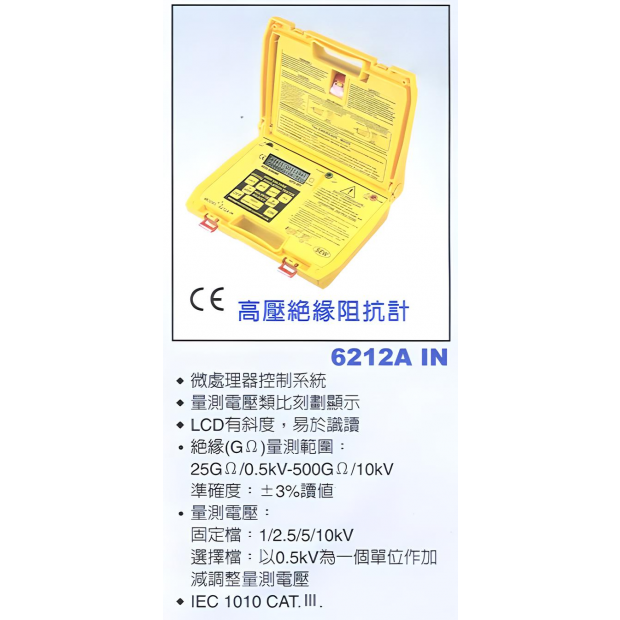

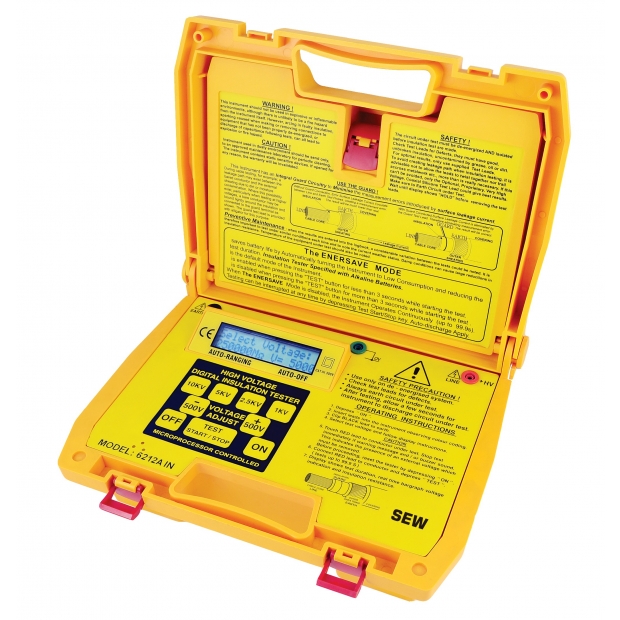

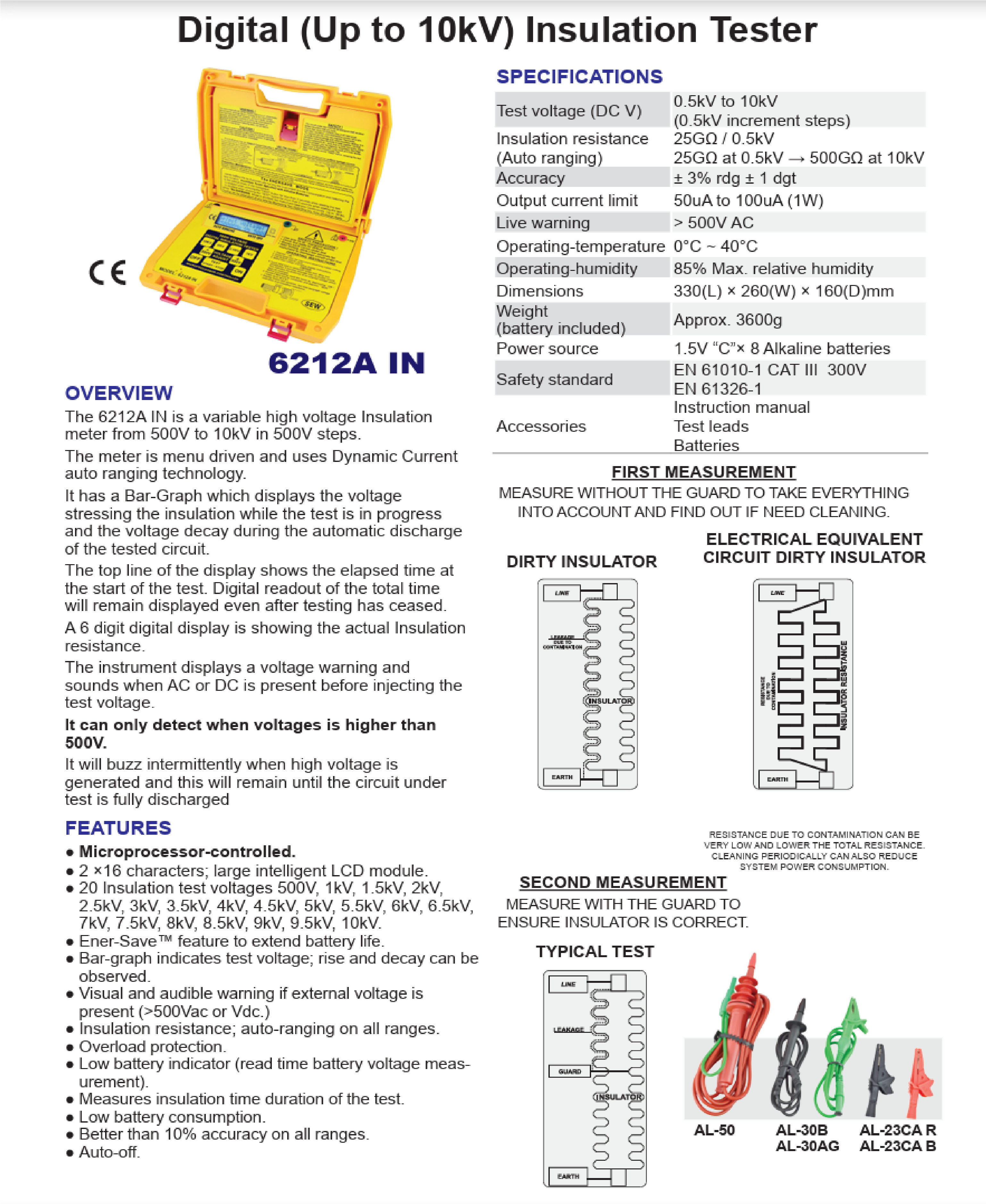

6212AIN High Voltage Insulation Impedance Meter

- Wide Test Voltage Range: Supports 20 insulation test voltages from 0.5kV to 10kV, adjustable in 0.5kV increments.
- High Insulation Resistance Measurement: Can measure up to 500GΩ at 10kV.
- Microprocessor-Controlled: Provides accurate and stable readings.
- Ener-Save™ Feature: Extends battery life.
- AC/DC Voltmeter: Measures voltages up to 600V.
- PI (Polarization Index) & DAR (Dielectric Absorption Ratio) Indication: Helps assess insulation quality.
- Auto-Ranging & Backlight Function: Enhances usability in various environments.
- Safety Features: Includes overload protection, automatic discharge, and external voltage warning.
- Compact & Portable: Designed for easy handling and field use.
Applications
- High-voltage insulation testing
- Preventive maintenance in electrical systems
- Industrial equipment diagnostics
