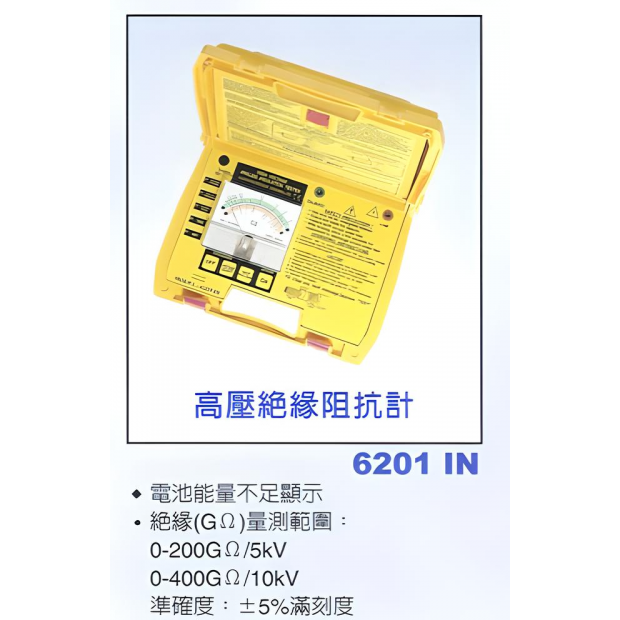

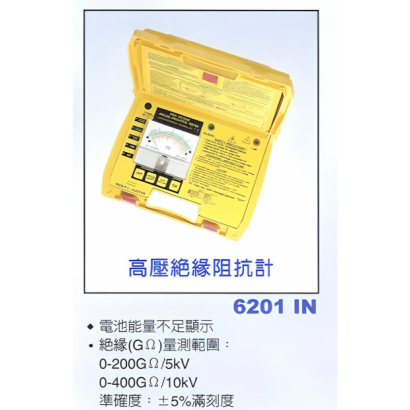

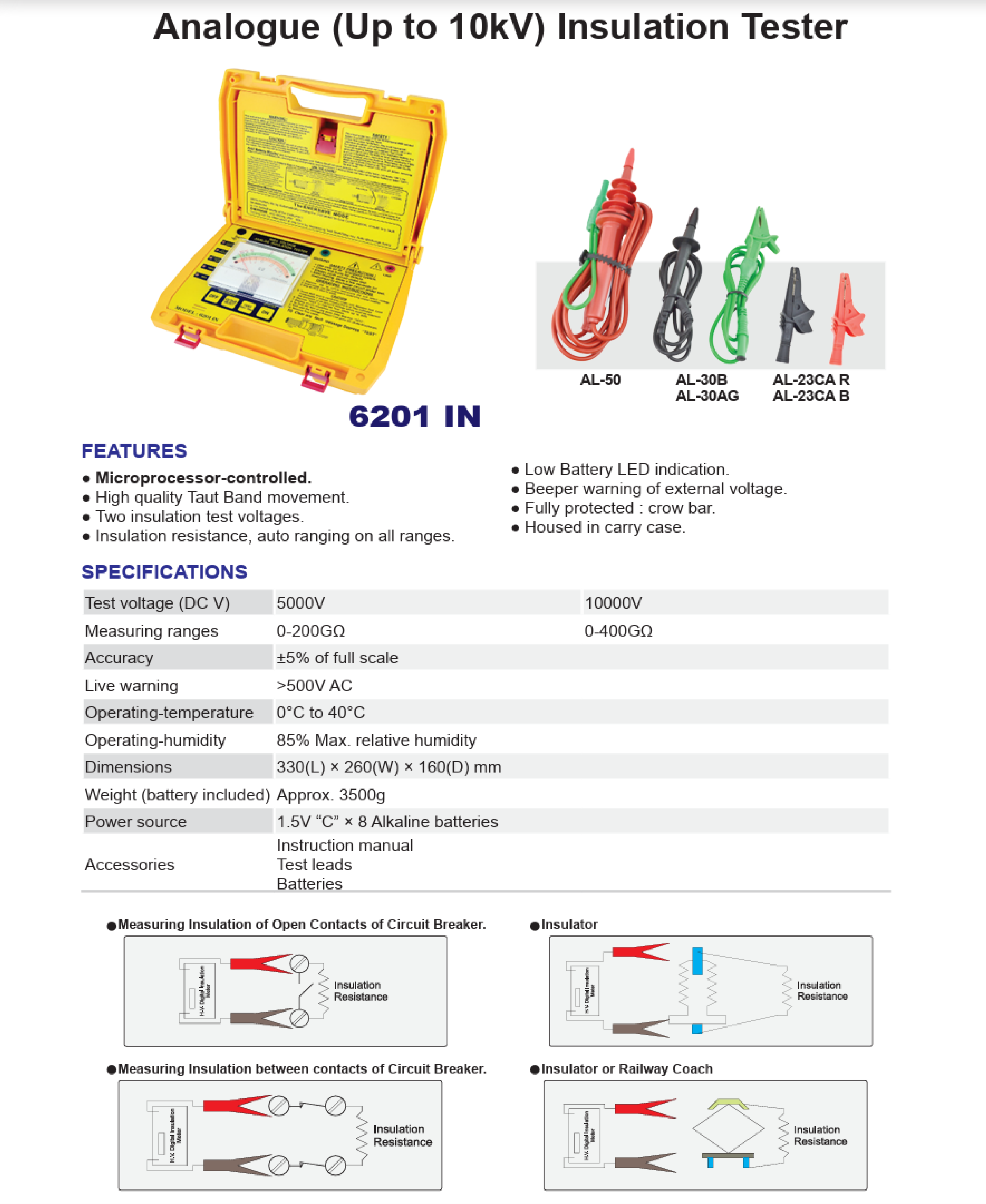

6201IN High Voltage Insulation Impedance Meter

- Test Voltage Options: 5kV and 10kV, suitable for high-voltage applications.
- Insulation Resistance Measurement:
- 5kV Range: 0-200GΩ
- 10kV Range: 0-400GΩ
- Accuracy: ±5% of full scale
- Microprocessor-Controlled: Ensures stable and precise readings.
- Live Voltage Warning: Alerts users if external voltage exceeds 500V AC.
- Auto-Ranging Function: Allows smooth measurement transitions.
- Safety Features: Includes overload protection, automatic discharge, and external voltage warning.
- Compact & Portable: Designed for easy handling and field use.
Applications
- High-voltage insulation testing
- Preventive maintenance in electrical systems
- Industrial equipment diagnostics
